'Audio plug with six pins, black and silver details, suitable for connections in audio and studio technology.'

'Audio plug with six pins, black and silver details, suitable for connections in audio and studio technology.'

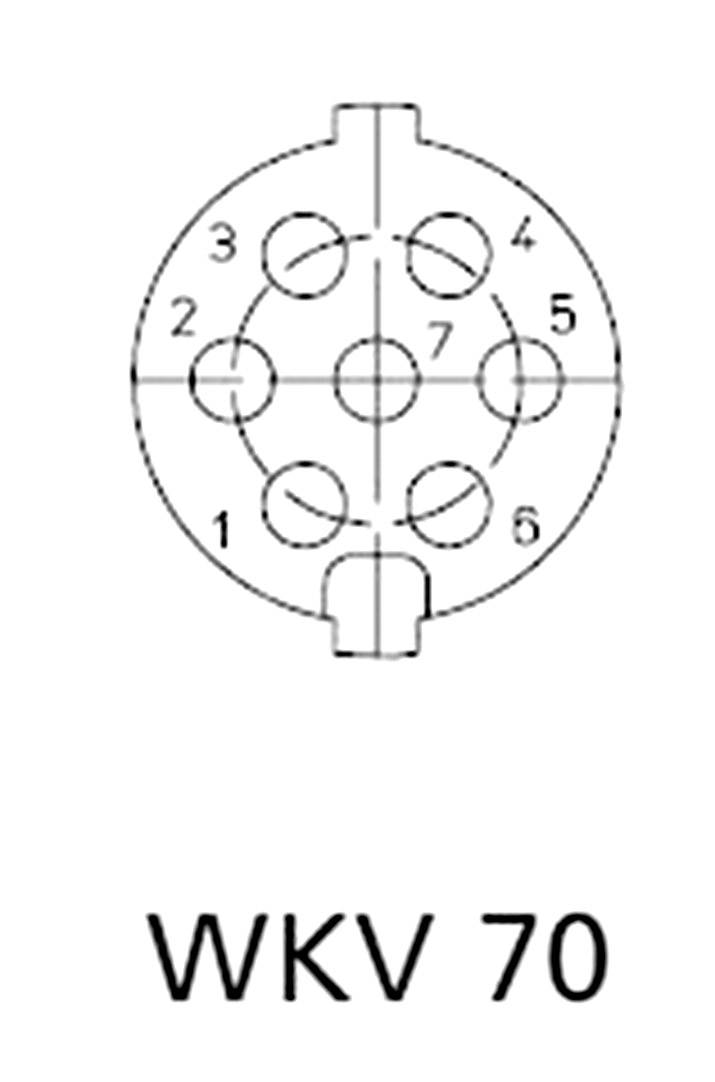

Diagram of a plug with seven numbered pins arranged in a circular configuration. Below it reads 'WKV 70'.

1/2

Image similar

Product type

DIN connector

Connector type

Socket, right angle

Connection

Soldering

Number of pins

7

Contact material

Gold plated

Datasheet (PDF)

Lumberg

Fast track dispatch on Wed 14 Oct

46 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 17.99 / piece)

€ 17.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Lumberg WKV 70 DIN connector Socket, right angle Number of pins: 7 Silver 1 pc(s)

IP40

Technical specifications

Type: With screw connection

Product type: DIN connector

Connector type: Socket, right angle

Factory colour: Silver

Connection: Soldering

Number of pins: 7

Contact material: Gold plated

Material (details): PC (Sleeve)

Manufacturer part #: WKV 70

Type: WKV 70

Connector cross section: 0.75 mm²

Content: 1 pc(s)

Bend relief: Yes

Nominal voltage: 250 V AC

Nominal current: 5 A

PIN image: IEC 60130-9

: IP40

Temperature range: -40 to +85 °C

Pins: 7

Connection: Soldering

Cable diameter (details): 4 - 6 mm

Documents & Downloads

Datasheet

Datasheet 733224 Lumberg WKV 70 DIN connector Socket, right angle Number of pins: 7 Silver 1 pc(s)

User & Safety Instructions

User & Safety Instructions 733224 Lumberg WKV 70 DIN connector Socket, right angle Number of pins: 7 Silver 1 pc(s)

Description

Lumberg products deliver secure electrical connections in the various devices of daily life. This round connector with screw caps ensure secure connection, despite easier assembly Suitable for signal and load currents up to 5 A. Intermateable according to IEC 60130-9

Description

Lumberg products deliver secure electrical connections in the various devices of daily life. This round connector with screw caps ensure secure connection, despite easier assembly Suitable for signal and load currents up to 5 A. Intermateable according to IEC 60130-9
