MegaSat D1 Profi-Line SAT antenna White
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 114.99 / piece)
€ 114.99
incl. VAT
14-day return policy included
Highlights & Details

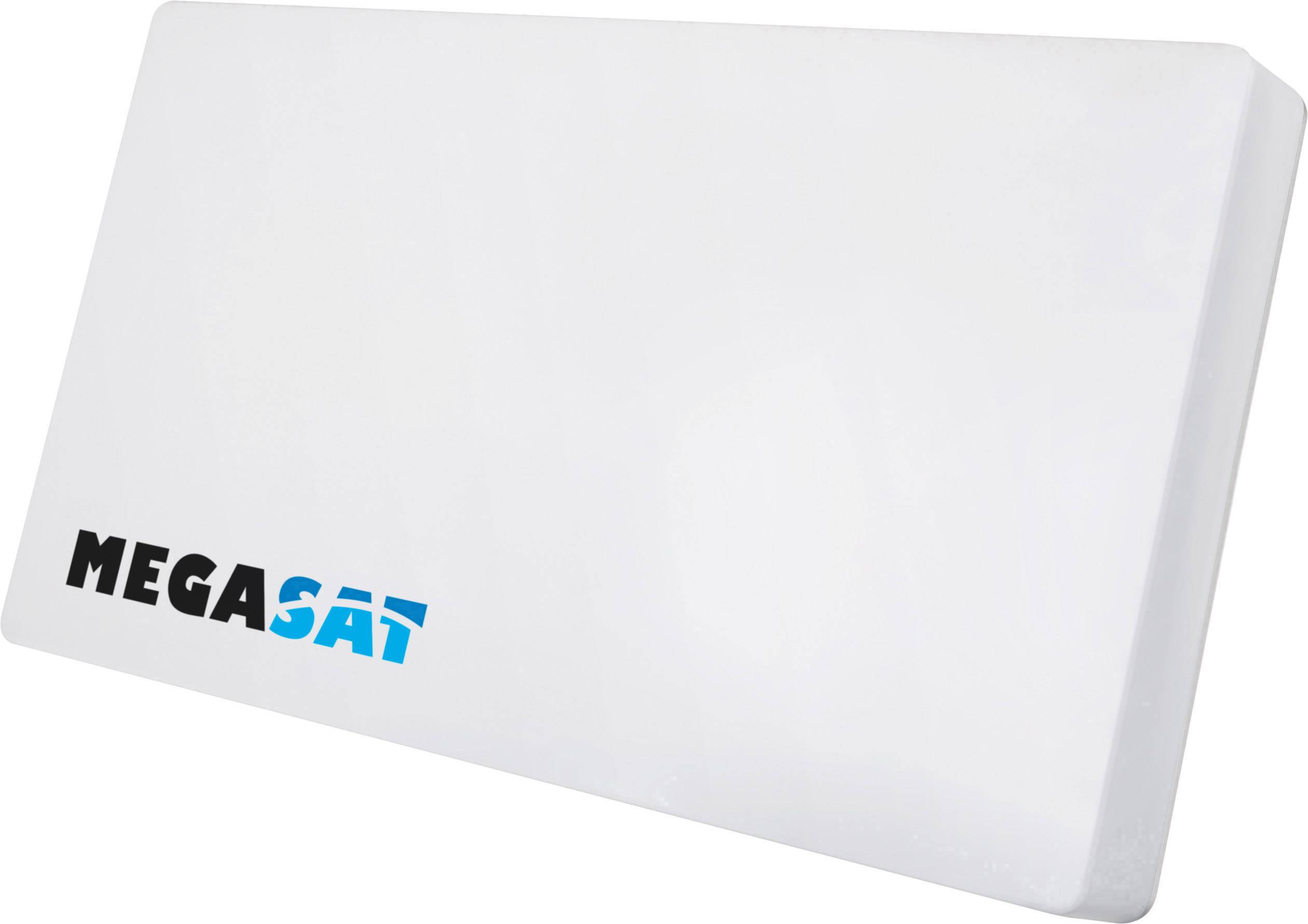

Megasat FLAT ANTENNA D1 PROFI-LINE
- Satellite flat antenna with best reception power
- Changeable LNB for one subscriber
- Equivalent to a conventional 60 cm parabolic antenna
- Incl. Holder and accessories for mounting on balcony or house wall
- Robust, stable housing
Technical specifications
- Input frequency: 10.7 - 12.75 GHz
- Polarization: Linear (vertical / horizontal)
- Antenna amplification 33 dBi @ 12.75 GHz
- LNB output frequency: 950 - 1950 MHz / 1100 - 2150 MHz
- L. O. Frequency: 9.75 GHz/10.6 GHz
- LNB amplification: Min. 55 dB/ max. 66 dB
- Gain Flatness 5 dB
- POWER SUPPLY 12 - 14 V DC (V) / 16 - 19 V DC (H)
- Power consumption max. 160 mA
- Operating temperature: 20°C - +60°C
- Storage temperature: -40°C - +80°C.
- Product type
SAT antenna
- Factory colour
White
- Weight
3.6 kg
- Participants
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1918242 MegaSat D1 Profi-Line SAT antenna White
User & Safety Instructions
User & Safety Instructions 1918242 MegaSat D1 Profi-Line SAT antenna White
Description
Best reception - can be used flexibly
The flat antenna is the ideal solution for receiving space-saving and inconspicuous satellite television. Its flat, compact and easy to install design makes the antenna (almost) invisible. The robust and stable housing protects the high-quality electronics inside from influences of the weather. The reception power is equivalent to a conventional 60 cm parabolic mirror and is perfectly suitable for mounting on the balcony or directly on the house wall.
Simply replace the LNB
A universal LNB for a subscriber is included in the delivery. In contrast to conventional flat antennas, the entire unit does not have to be replaced in the event of a defect, but only the LNB itself, which saves you money. If required, the LNB can be replaced with just a few simple steps. This way you can also upgrade your system for more participants at low cost.
This text is machine translated.
The flat antenna is the ideal solution for receiving space-saving and inconspicuous satellite television. Its flat, compact and easy to install design makes the antenna (almost) invisible. The robust and stable housing protects the high-quality electronics inside from influences of the weather. The reception power is equivalent to a conventional 60 cm parabolic mirror and is perfectly suitable for mounting on the balcony or directly on the house wall.
Simply replace the LNB
A universal LNB for a subscriber is included in the delivery. In contrast to conventional flat antennas, the entire unit does not have to be replaced in the event of a defect, but only the LNB itself, which saves you money. If required, the LNB can be replaced with just a few simple steps. This way you can also upgrade your system for more participants at low cost.
This text is machine translated.
Scope of delivery
- Flat antenna
- LNB

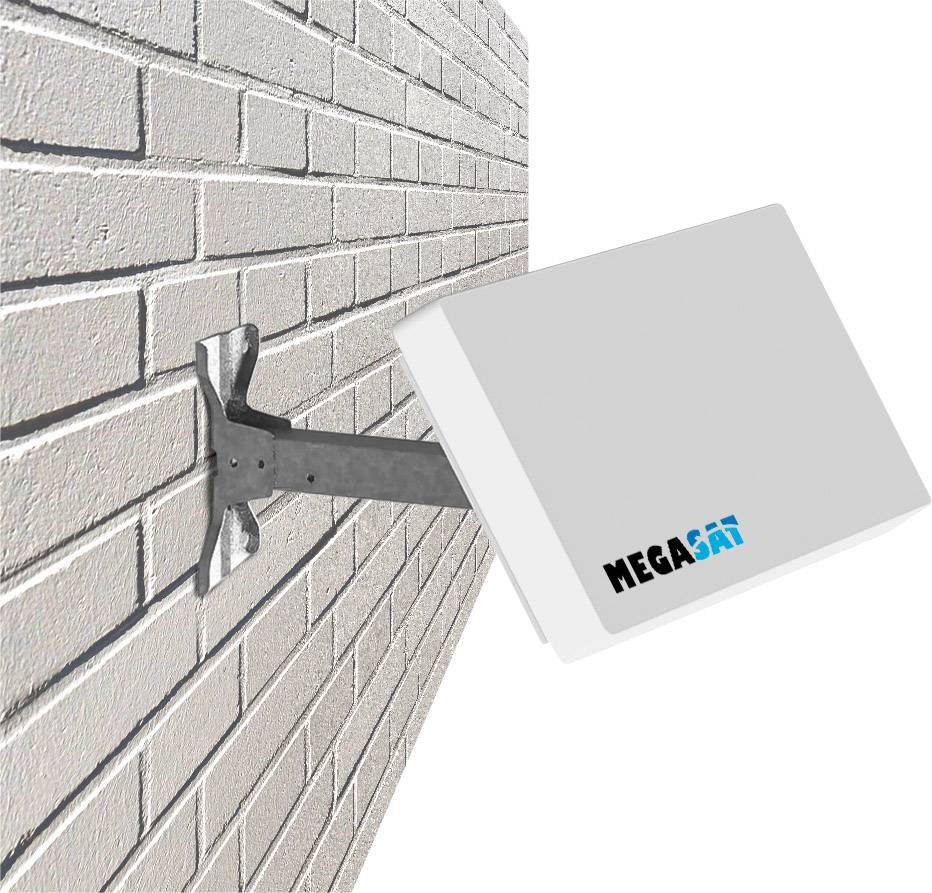

- Wall bracket

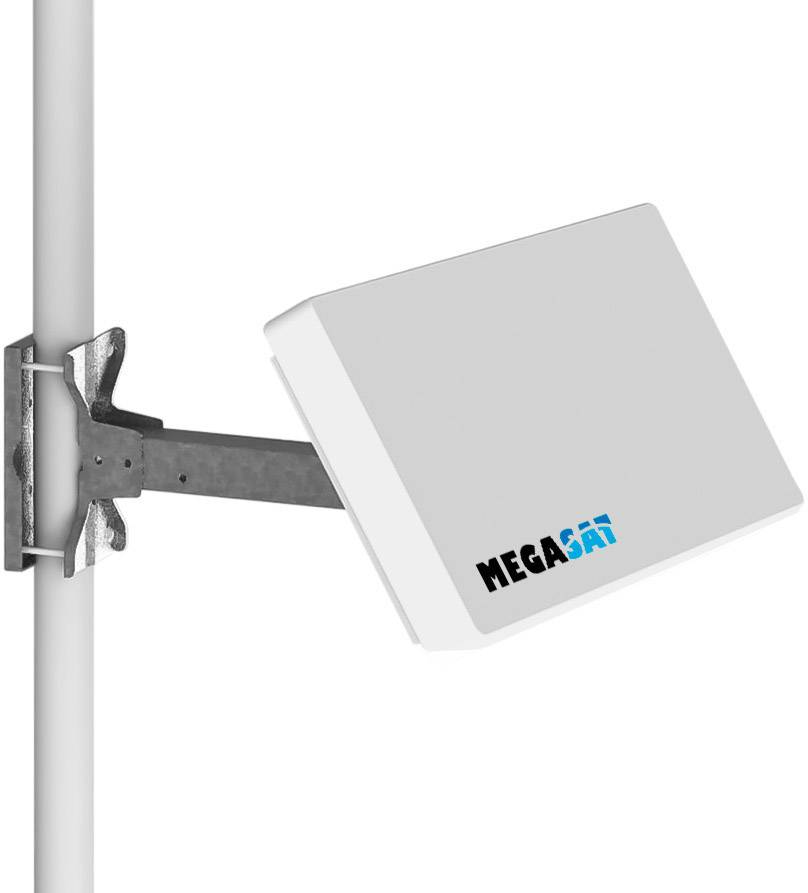

- Mast/balcony holder

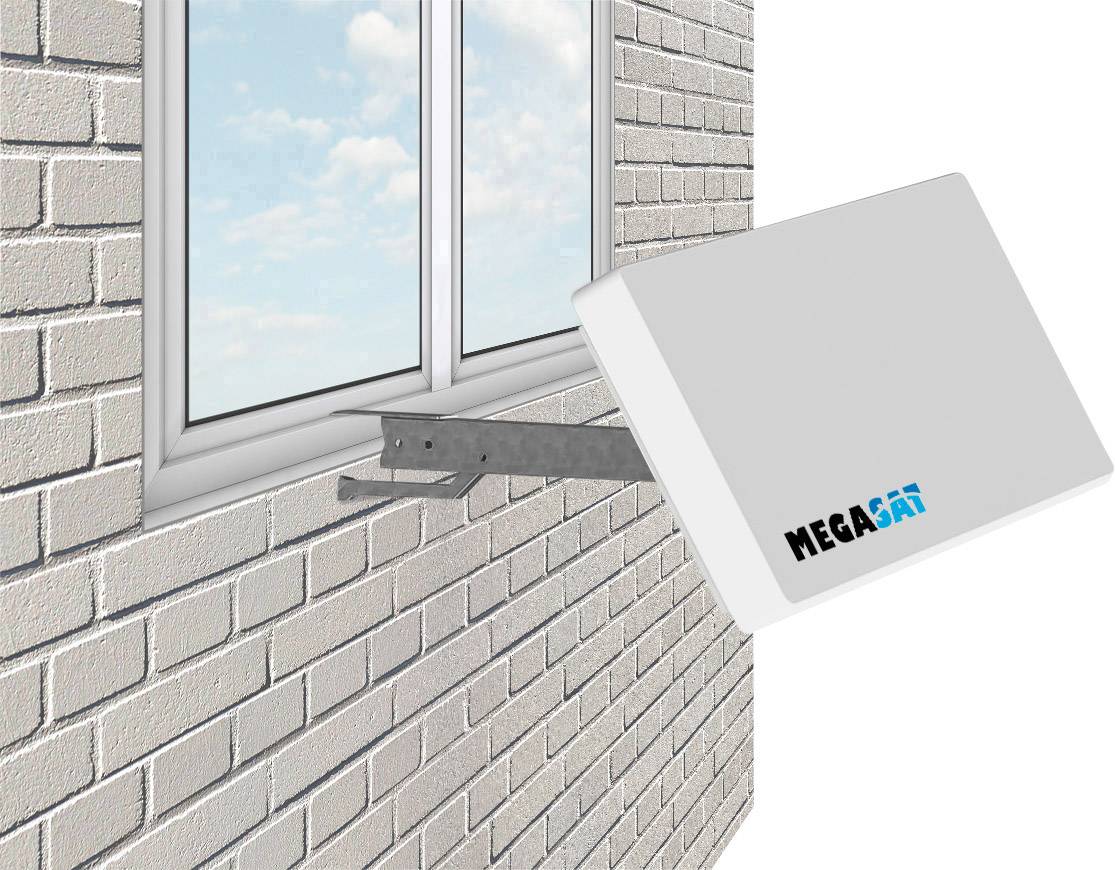

- Window holder
- Tools
- Screw set
- Compass
- User manual
Hints
Dimensions 525 mm x 290 mm x 68 mm (without LNB)
Weight: 3.6 kg
