Buy Schwaiger SPI085PR Satellite Dish, , Brick red

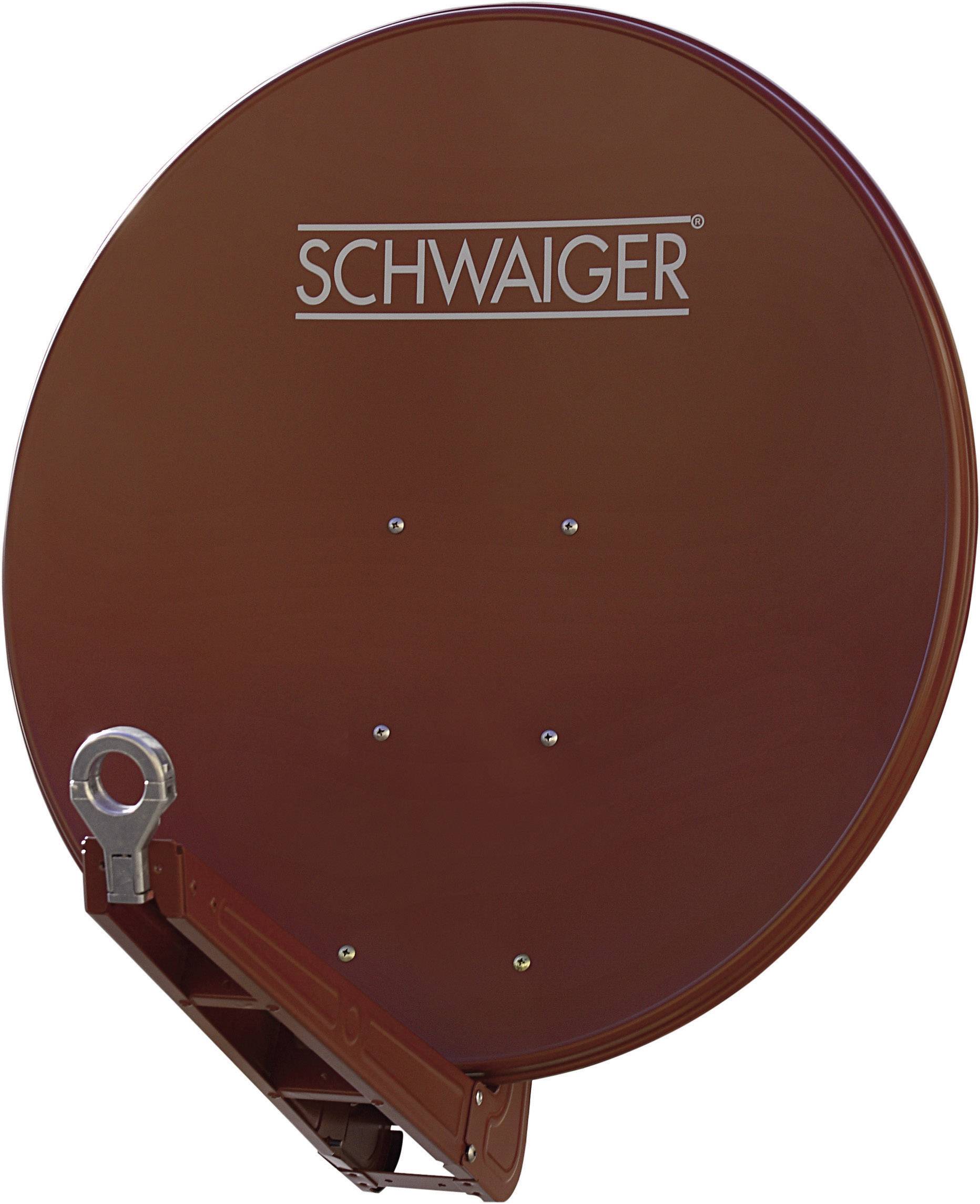

Brown satellite dish with 'SCHWAIGER' printed on it, mounted on a bracket.

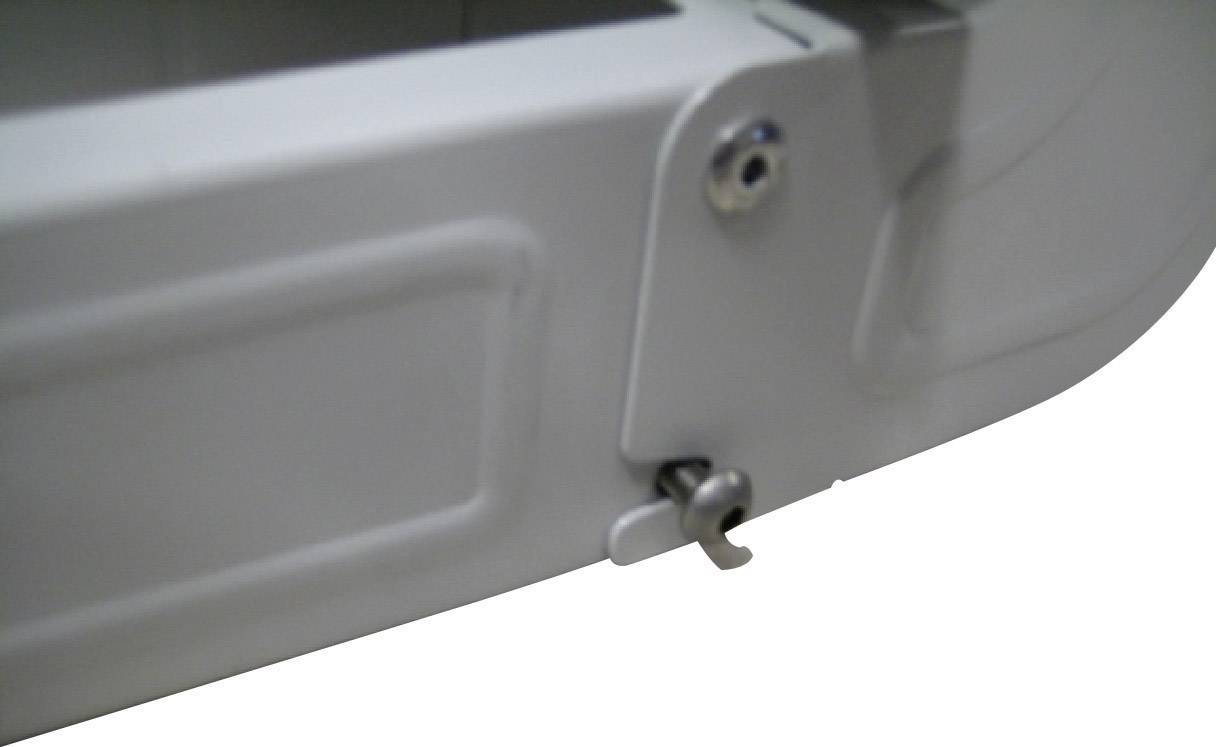

A white metal component with a hinge and hook. Likely part of a mechanism, such as a door or flap.

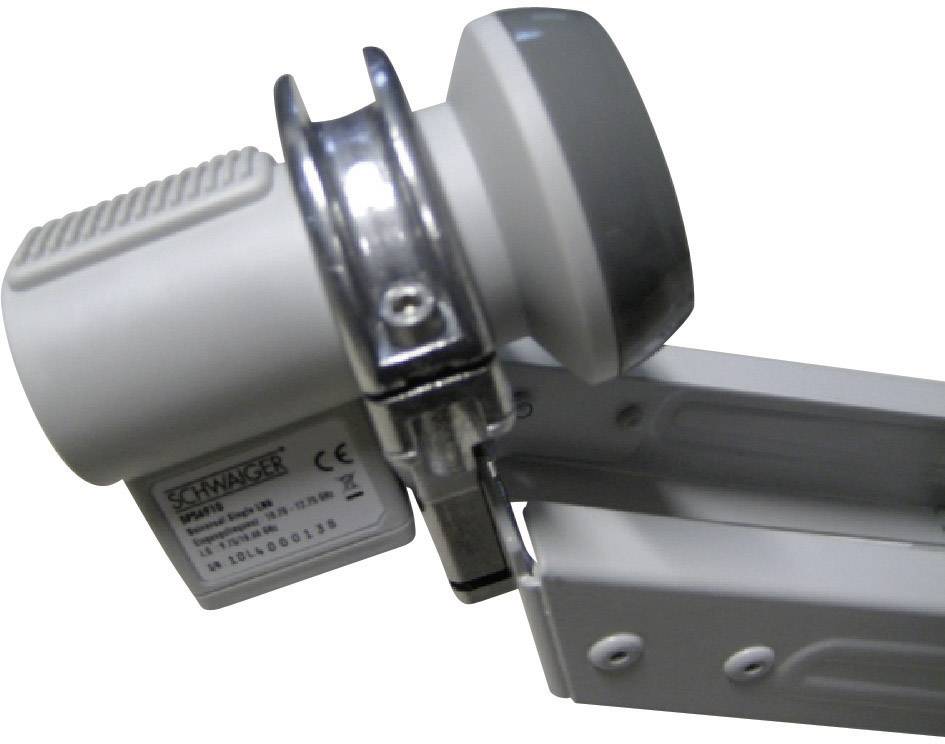

A white satellite dish mount with a metallic joint, used for positioning and fixing a parabolic antenna.

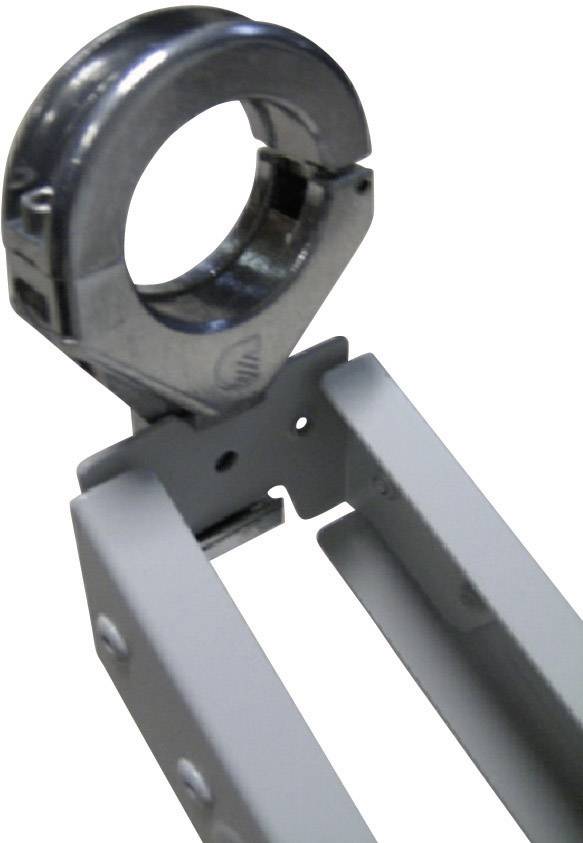

A metallic clamp holder mounted on a beam, showing parts of a fixing solution, presumably for pipes or cables.

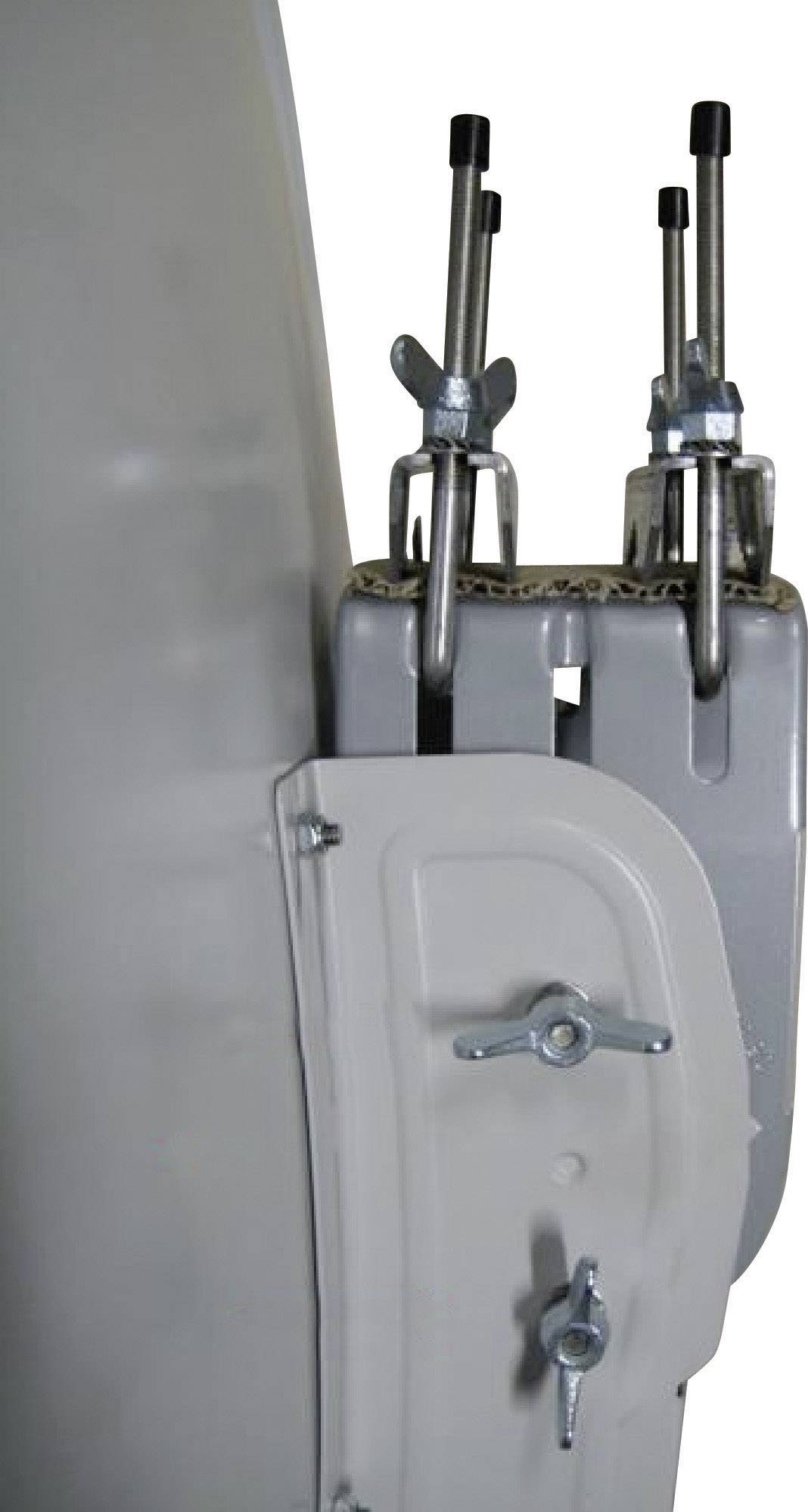

Two metal locks on a grey casing, designed for securely fastening doors or covers.

Metal strut, foam insert, and packaged mounting clip on a white background. Likely suitable for an assembly or fastening application.

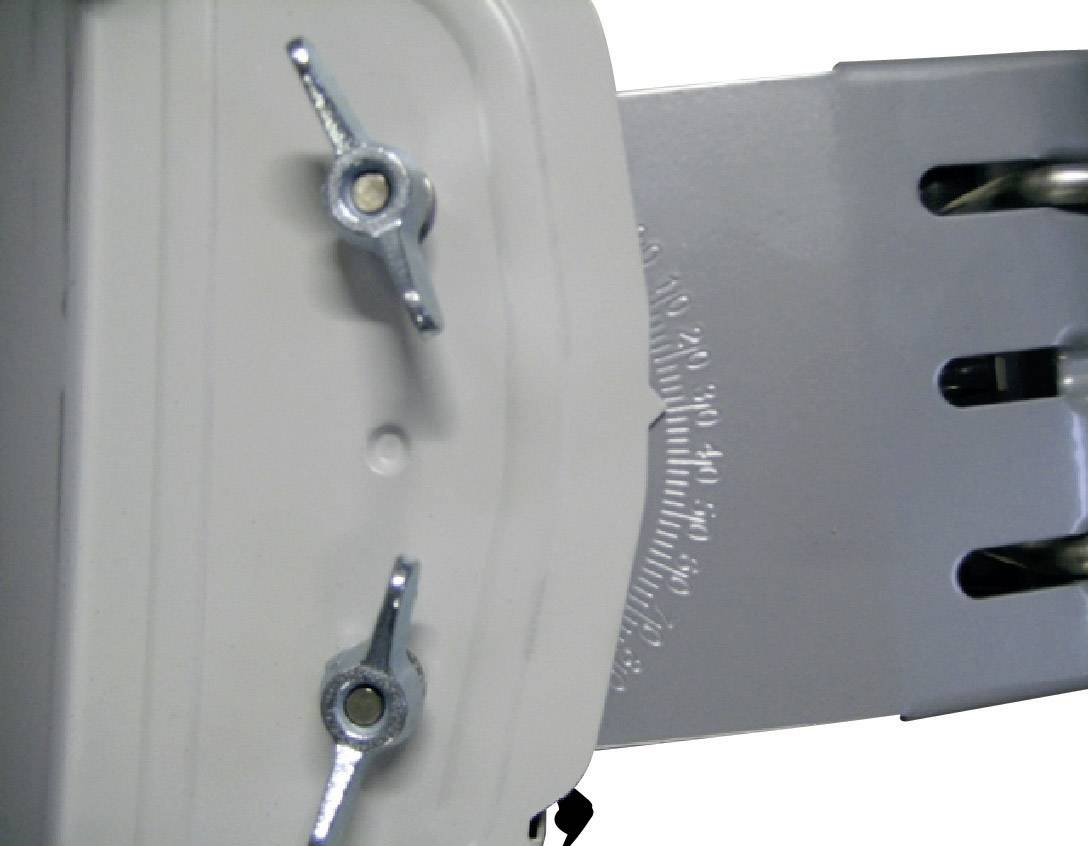

Close-up of a hinge with scale and wing nuts for adjustment.

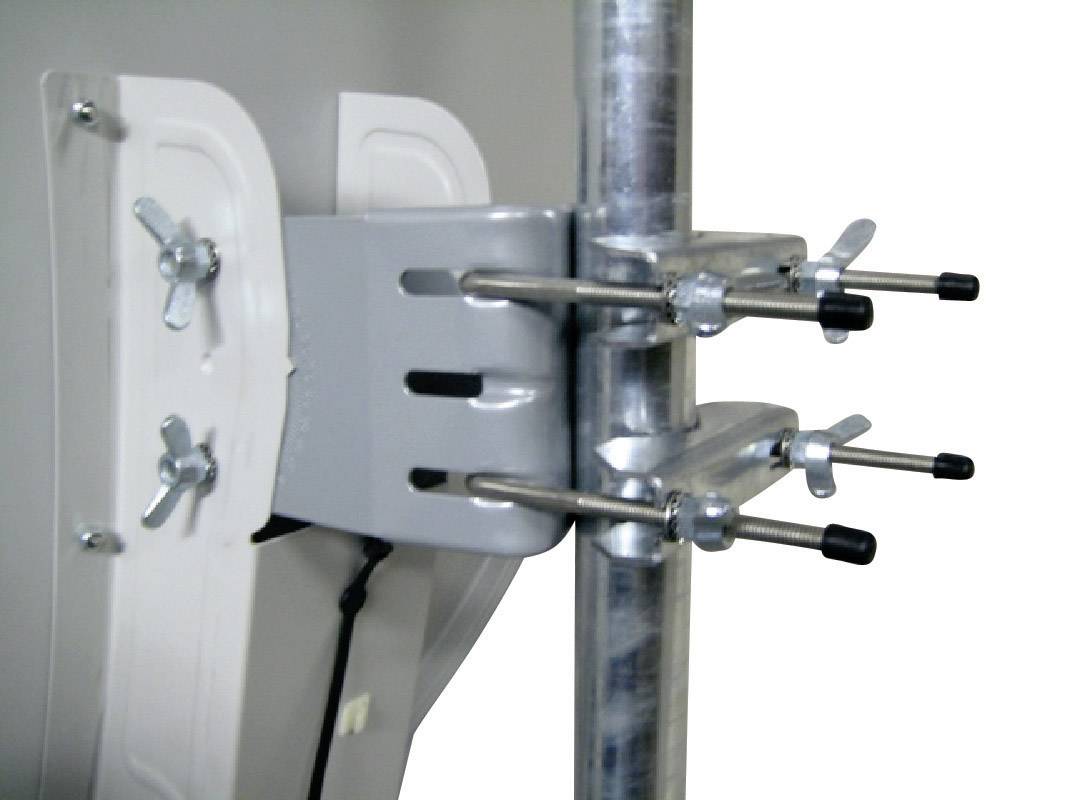

A mounting bracket with screws and clamps secures a metal plate to a pipe.

A red SATVISION label rates the Schwaiger SPIO56PA as 'VERY GOOD' with 92.3% in a 2012 comparison of 5 satellite systems.

1/9

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 117.64 / piece)

€ 117.64

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Schwaiger SPI085PR Satellite Dish, , Brick red

Aluminium reflector
Powder-coated dish and LNB holder
Completely pre-assembled

Technical specifications

Product type: SAT antenna

Dish diameter: 85 cm

Reflective material: Aluminium

LNB feed size: 40 mm

Pole mount (min.): 30 mm

Pole mount (max.): 90 mm

Gain: 39.30 dB

Factory colour: Brick red

Weight: 6.00 kg

Pole clamp: 30 - 90 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 943295 Schwaiger SPI085PR Satellite Dish, , Brick red

Warranty Terms

Warranty Terms 943295 Schwaiger SPI085PR Satellite Dish, , Brick red

Description

This aluminium SAT reflector offers excellent functionality and design. It is completely pre-assembled, which means that the LNB arm and the reflector holder only have to be folded down and locked and with screws. Then screw the LNB holder on using the Allen key included and attach the LNB to the folding feed bracket with a screw. Now screw everything to the mast using wing nuts and align it. And that's it! All screws are already positioned where they are needed, making assembly clear and easy.

Below is a selection of satellite positions for TV satellites than can be received for Europe:
Eutelsat W3A, 7° east, from reflector diameter 80 cm
Eutelsat (Hot Bird), 13° east from dia. 60 cm
Eutelsat W3C, 16° east, from dia. 65 cm
Astra, 19.2° east, from dia. 35 cm
Astra, 23.5° east, from dia. 50 cm
Astra/Eurobird, 28.5° east, from dia. 60 cm
Arabsat 3A, 26° east, from dia. 90 cm
Hellas Sat, 39° east, from dia. 70 cm
Turksat, 42° east, from dia. 90 cm.

The specified reflector diameter is the minimum and no bad weather reserve has been taken into account. It has also been assumed that you only wish to receive digital programmes. If in doubt, take a reflector one size larger to receive the corresponding satellite without any problems

This text is machine translated.

Features

Rod holder and retainer are made of powder-coated steel
LNB bracket made from weatherproof die-cast aluminium
Double LNB bracket made from steel, powder coated with integrated cable routing
Pre-assembled rod holder with 2 coupler brackets
Max. 39.3 dB antenna gain
Clamping range of rod clamp: 30 - 90 mm.
