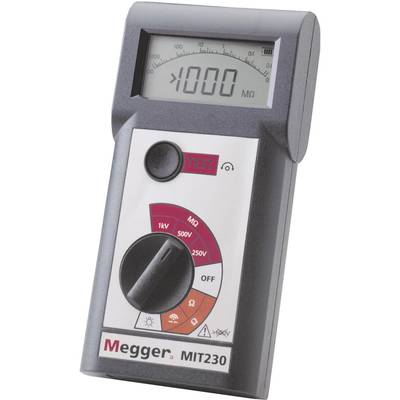

Digital insulation test meter 'Megger MIT230' with rotary switch for voltages 250V to 1000V and display indication in megaohms.

Digital insulation test meter 'Megger MIT230' with rotary switch for voltages 250V to 1000V and display indication in megaohms.

Megger

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 749.00 / piece)

€ 749.00

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

With 230, the handy insulation and continuity tester

Test voltages 250 V, 500 V, 1000V
Continuity test with 200 mA
Test lead compensation
Digital and analogue display (bar graph)

Technical specifications

Test voltage can be switched between 250 V, 500 V, 1000V
External voltage detection from 25 V
Auto power-off
Test lead compensation to 9.99 Ω
Continuity signal up to 2 Ω
Measurement range - low resistance: 0.01 Ω - 70 Ω (0 - 50 Ω analogue)
Digital display (3 1/2-digits) and analog display (bar graph)

Product type: Insulation tester

Test voltage: 250 V
500 V
1000 V

Reading type: Insulation resistance

Continuity testing: Acoustic< 2 Ω

: Manufacturer's standards (no certificate)

: IP40

Power supply (details): 6 x battery 1.5 V AA NiMH rechargeable batteries (alternatively IEC LR6)

Dim: (L x W x H) 98 x 195 x 40 mm

Weight: 530 g

Insulation resistance (max.): 1000 MΩ

Voltage reading range (max.): 600 V

Voltage reading range (min.): 25 V

Reading category: CAT III 600 V

Width: 195 mm

Height: 40 mm

Length: 98 mm

Documents & Downloads

Datasheet

Datasheet 106269 Megger MIT230-EN Insulation tester 250 V, 500 V, 1000 V 1000 MΩ

User & Safety Instructions

User & Safety Instructions 106269 Megger MIT230-EN Insulation tester 250 V, 500 V, 1000 V 1000 MΩ

Description

In the 200-series are insulation and continuity measurement devices, with test voltages from 250 to 1000 V. you will find application in the building sector as well as in industrial systems as well as in the on-site maintenance and service departments. Through its handiness and ease, they are ideal for test engineers, you need to carry for a longer period of time.

This text is machine translated.

Features

Measurement category CAT III/600 Volt
Protection class IP 40
Operation with batteries and rechargeable batteries is possible
Warning of live test objects.

Scope of delivery

Carrying case
Test leads with test tips and terminals
User manual.

Description

In the 200-series are insulation and continuity measurement devices, with test voltages from 250 to 1000 V. you will find application in the building sector as well as in industrial systems as well as in the on-site maintenance and service departments. Through its handiness and ease, they are ideal for test engineers, you need to carry for a longer period of time.

This text is machine translated.

Features

Measurement category CAT III/600 Volt
Protection class IP 40
Operation with batteries and rechargeable batteries is possible
Warning of live test objects.

Scope of delivery

Carrying case
Test leads with test tips and terminals
User manual.
