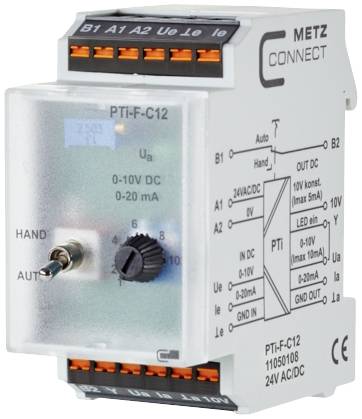

Metz Connect PTi-F-C12 24 V AC/DC 1105010870 Signal converter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Signal converter
Input signal (current) (max.)
20 mA
Input signal (voltage) (max.)
10 V
Type
PTi-F-C12 24 V AC/DC
Dim
(L x W x H) 60 x 35 x 69.30 mm
Datasheet (PDF)
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
14-day return policy included
Technical specifications
- Type
PTi-F-C12 24 V AC/DC
- Product type
Signal converter
- Input signal (current) (max.)
20 mA
- Input signal (voltage) (max.)
10 V
- Dim
(L x W x H) 60 x 35 x 69.30 mm
- Output (voltage)
0 - 10 V/DC
- Output (current)
0 - 20 mA
- Operating voltage
24, 24 V AC, V DC (max)
- Max. operating voltage
24 V AC
24 V DC
- Load
500 Ω
- Input signal (voltage)
0 - 10 V/DC
- Input signal (current)
0 - 20 mA
- Content
1 pc(s)
- Width
35 mm
- Height
69.30 mm
- Length
60 mm
- Current consumption
AC: 200 mA; DC: 110 mA
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
24 V AC
24 V DC
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3164620 Metz Connect PTi-F-C12 24 V AC/DC 1105010870 Signal converter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3164620 Metz Connect PTi-F-C12 24 V AC/DC 1105010870 Signal converter 1 pc(s)
Description
The potential isolator / signal converter is used to separate analog signals within a range from 0 to 10 0 V DC and 0 to 20 mA DC, or for signal conversion from 0 to 10 V DC to 0 mA DC, or 0 to 20 mA DC to 20 to 10 V. DC The input or Output signals as well as the supply voltage are isolated against each other. An input signal 0 to 10 V or 0 to 20 mA can be connected to the device. Potential separation function: With PT-C12, the input signal 0 to 10 V is proportionally matched to the output signal 0 to 10 V. The PTI-C12 balances the input signal 0 to 20 mA proportionally to the output signal 0 to 20 mA. Signal conversion function with potential separation: With a signal conversion from 0 to 10 V on 0 to 20 mA or 0 to 20 mA on 0 to 10 V, the converted output signal can be adjusted by means of integrated spindle trimmer. In addition, a manual emergency operating level is integrated with MANUAL auto switch with feedback contact. The output signal 0 to 10 V or 0 to 20 mA can be set MANUALLY via the potentiometer on the front. The 10 V clamp provides a constant output voltage of max. 10 V DC, 5 mA. Input Y is used for LED display of the output voltage ua. Here, the brightness of the LED depends on the height of the output signal (bridge between Ua and Y). Alternatively, an external signal can be connected at input Y to the LED display from 0 to 10 V DC. Connection with spring clamps (Push-In).
This text is machine translated.
This text is machine translated.
Features
- Interface technology
- Interface component
- Potential separation
- Signal converter
- Current balancing
