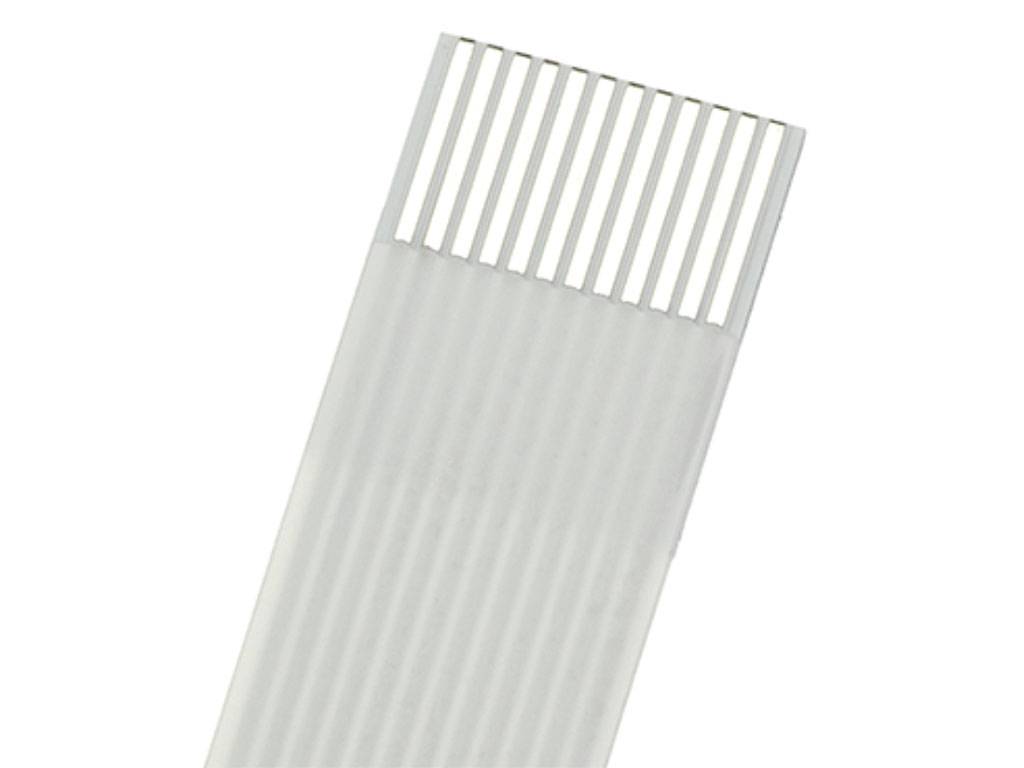

Molex 982660435 Ribbon cable Contact spacing: 0.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Ribbon cable
CS
0.5 mm
Content
1 pc(s)
Cable features
Flexible
Nominal voltage
60 V AC
Datasheet (PDF)
Number
Minimum order quantity: 15
Total (€ 5.03 / piece)
€ 11.76
-57 %
€ 75.45
plus VAT.
Highlights & Details
Flat Flex Jumpers
- 0.50mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 152.00mm Cable Length, Tin (Sn) Plating, 40 Circuits
- This text is machine translated.
Technical specifications
- Connections (equipped): 40Contact layout type: A.Material - Coating Plug-in area: TinMaximum current per port 0.5 A.
- Product type
Ribbon cable
- CS
0.5 mm
- Cable features
Flexible
- Content
1 pc(s)
- Nominal voltage
60 V AC
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+105 °C
- Manufacturer part #
982660435
- Type
Molex MOL DataCom & Specialty
- Length
152 mm
- Engineering Part No
98266-0435
- Engineering Series Name
0,5 FFC JUMPER
- Engineering Series No
98266
- Packaging type
Bag
Documents & Downloads
Datasheet
Datasheet 2450927 Molex 982660435 Ribbon cable Contact spacing: 0.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2450927 Molex 982660435 Ribbon cable Contact spacing: 0.5 mm 1 pc(s)
Circuit diagramm
Circuit diagramm 2450927 Molex 982660435 Ribbon cable Contact spacing: 0.5 mm 1 pc(s)
Description
0.50mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 152.00mm Cable Length, Tin (Sn) Plating, 40 Circuits
