Monacor SP-167E 6.5 inch 16.9 cm Subwoofer 35 W 4 Ω
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 31.99 / piece)
€ 31.99
incl. VAT
Only 10 Piece(s) available
Highlights & Details

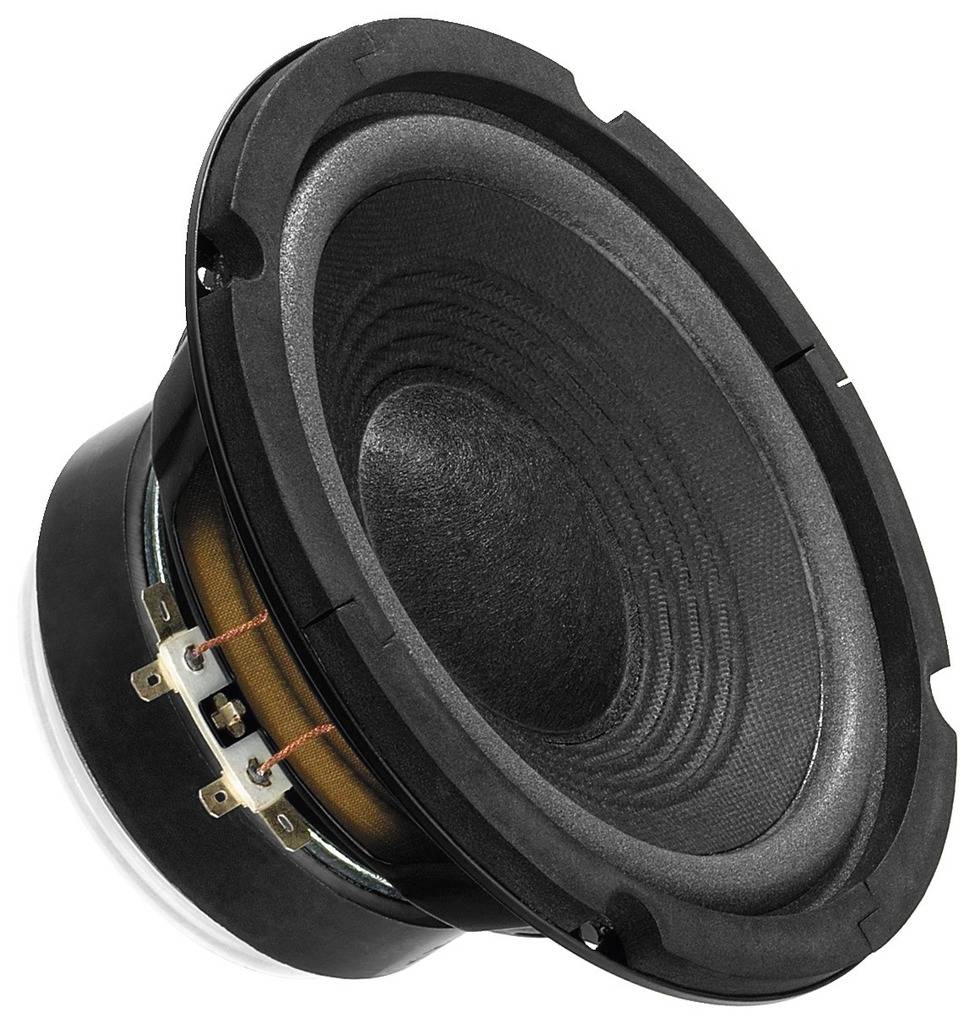

Monacor SP-167E bass loudspeaker
- Series of all-purpose hi-fi speaker chassis at 4 ohms
- Carefully processed and because of the exceptionally attractive price, as well as the all-round-compatible drive properties, for example for replacement purposes.
- This text is machine translated.
Technical specifications
- Impedance (Z): 4 Ohm
- Resonant frequency (fs): 62 Hz
- Max. 3-6000 Hz frequency range: f
- Maximum load-carrying capacity: 70 WMAX
- Nominal load (P): 35WRMS
- Avg. Sound pressure (1W/m): 92 dB
- Suspension compliance (cms): 0.7 mm/N
- Moved mass (MMS): 9.3 g
- Mechanical quality (Qms): 2.78
- Electrical quality (Qes): 0.48
- Total quality (Qts): 0.41
- Equivalent volume (Vas): 17,88 l
- Dc resistance (Re): 3.9 ohm
- Power factor (BxL): 5.43 Tm
- Schwingspulenind. (Le): 0.6 mH
- Voice coil diameter: 25.5 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/-2.5 mm
- Eff. Cone area (sd): 135 cm2
- Magnet weight: 570 g
- Weight: 1.15 kg
- Product type
Subwoofer
- Speaker size (inch)
6.5 inch
- Speaker size (cm)
16.9 cm
- RMS capacity
35 W
- Max. load
70 W
- Min. frequency
550 Hz
- Max. frequency
6000 Hz
- Impedance
4 Ω
- Sound pressure
92 dB
- Recess diameter
14.9 cm
- Recess depth
67 mm
- Weight
1.15 kg
- Frequency range
550 Hz - 6000 Hz
Documents & Downloads
Datasheet
Datasheet 1332568 Monacor SP-167E 6.5 inch 16.9 cm Subwoofer 35 W 4 Ω
User & Safety Instructions
User & Safety Instructions 1332568 Monacor SP-167E 6.5 inch 16.9 cm Subwoofer 35 W 4 Ω
Information
Information 1332568 Monacor SP-167E 6.5 inch 16.9 cm Subwoofer 35 W 4 Ω
Conformity certificate
Conformity certificate 1332568 Monacor SP-167E 6.5 inch 16.9 cm Subwoofer 35 W 4 Ω
Description
Features
- Hi-mid-woofer
- Good all-round speaker
- Seam
- Replacement speaker for closed boxes and bass reflex speakers
