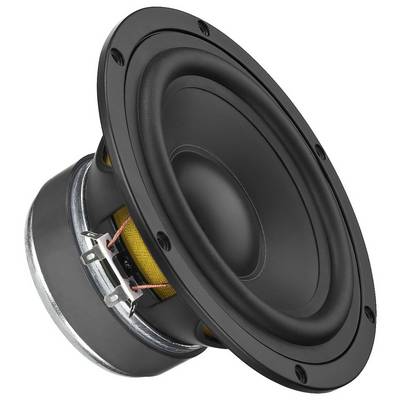

Monacor SPH-6M 6.5 inch 16.51 cm Subwoofer 60 W 8 Ω
EAN:
Part number:
Item no:
Number
Total (€ 77.99 / piece)
€ 81.99
-5 %
€ 77.99
incl. VAT
Only 10 Piece(s) available
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 39 Hz
- Max. 3-3000 Hz frequency range: f
- Maximum capacity 120 WMAX
- Nominal load (P): 60WRMS
- Avg. Sound pressure (1W/m): 88 dB
- Suspension compliance (cms): 0.78 mm/N
- Moved mass (MMS): 20 g
- Mechanical quality (Qms): 2.26
- Electrical quality (Qes): 0.35
- Total quality (Qts): 0.30
- Equivalent volume (Vas): 17.6 l
- Dc resistance (Re): 6,33 Ohm
- Power factor (BxL): 9.68 Tm
- Schwingspulenind. (Le): 0.82 mH
- Voice coil diameter: diameter. 37 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/- 4 mm
- Eff. Cone area (sd): 127 cm2
- Magnet weight: 630 g
- Weight: 1.9 kg
- Product type
Subwoofer
- Speaker size (inch)
6.5 inch
- Speaker size (cm)
16.51 cm
- RMS capacity
60 W
- Max. load
120 W
- Min. frequency
39 Hz
- Max. frequency
3000 Hz
- Impedance
8 Ω
- Sound pressure
88 dB
- Weight
1.9 kg
- Frequency range
39 Hz - 3000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332709 Monacor SPH-6M 6.5 inch 16.51 cm Subwoofer 60 W 8 Ω
Description
Features
- Hi-Fi woofer
- High-quality, long stroke Hi-Fi woofer
- Vapor-deposited resonance polypropylene membrane
- Stable attractive aluminum pressure die-cast basket with 6-hole gland
- Magnet system with pole core bore and flared rear pole plate
- Very suitable for bass reflex speaker systems
