Müller KNX 23654 Room thermostat hygrostat combo GS 30.10 knx

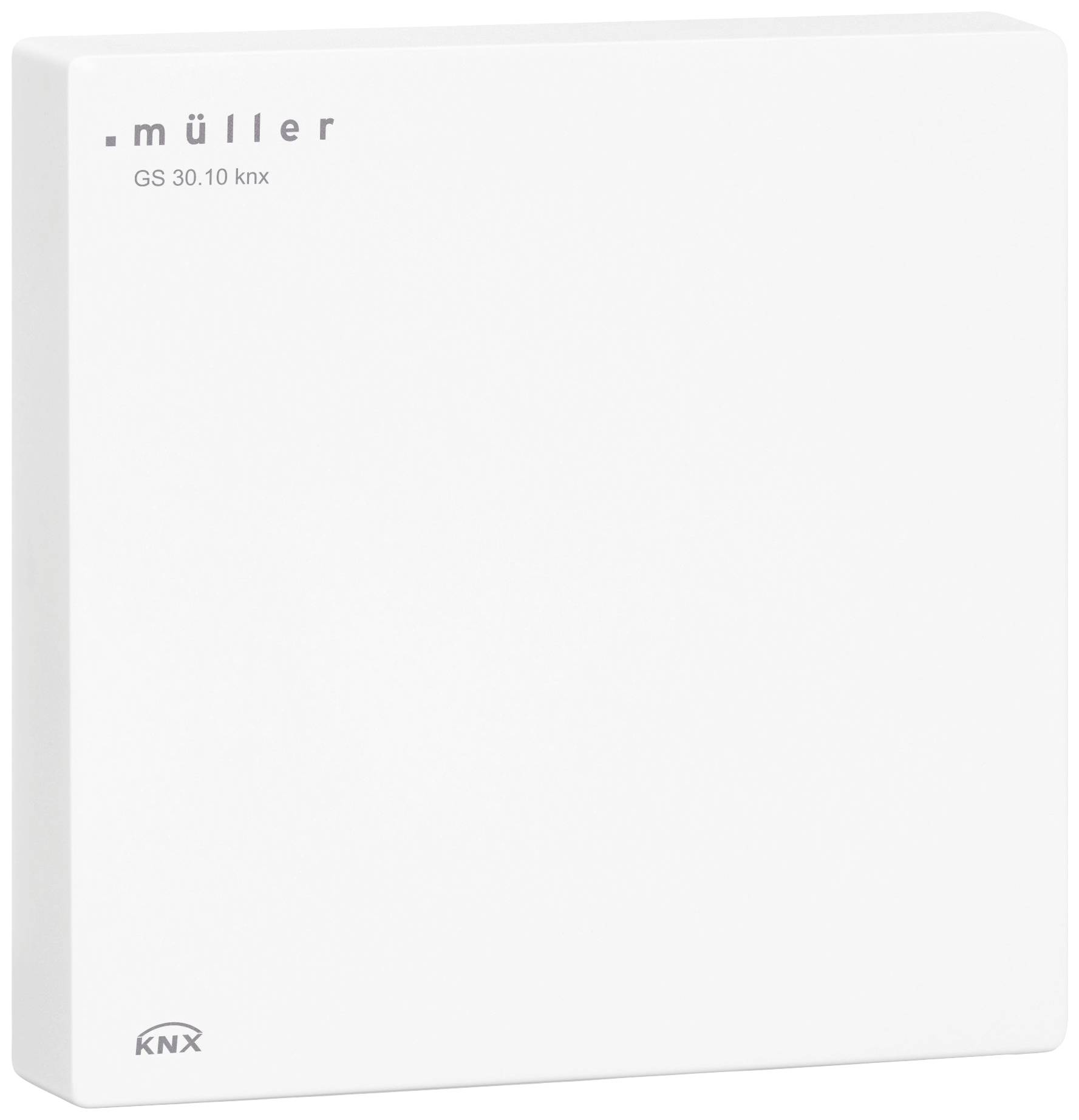

A white electrical device by 'müller', model 'GS 30.10 knx', with a KNX logo in the corner, against a light grey background.
Technical drawing of a square object from front and side views. Dimensions: 80.5 x 80.5 x 17.
Circuit diagram with 6 inputs. Input 1: analogue or binary. Inputs 2-3: binary. Inputs 4-5: TF06/PT1000 options. Input 6: GND.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 114.99 / piece)
€ 114.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Operating voltage: via KNX bus voltage
Product type

Room thermostat hygrostat combo

Series

KNX

Used at

Indoors

IP20

Power supply (LOV)

via PSU bus

Data transfer (Smart Home)

Wired

Channels

5

Frequency

868 MHz

Mounting type

Surface-mount

Wall

Factory colour

White

Width

80.5 mm

Height

80.5 mm

Depth

17 mm

Dim

(W x H x D) 80.5 x 80.5 x 17 mm

Hub

Not required, optional for remote access

n.rel.

Weight

90 g

Features

Test function

Documents & Downloads

Datasheet

Datasheet 1954065 Müller KNX 23654 Room thermostat hygrostat combo GS 30.10 knx

User & Safety Instructions

User & Safety Instructions 1954065 Müller KNX 23654 Room thermostat hygrostat combo GS 30.10 knx

Description

Room temperature control

This text is machine translated.

Features

  • Recording of room temperature, relative humidity and air pressureTemperature sensor reading range: 0 - +50 °CHumidity sensor (measuring range 0...100 % rel. humidity)Humidity-Comparator function5 binary and analogue inputs (e.g. for connecting an external temperature sensor)Easy handling and installationModern, flat design for surface mountingAdditional for GS 31.10 knx: Target temperature can be changed manually via touch control panel (setting range ±3 °; step width 0.5 °)
