Müller KNX 23828 Interface EA 36.32 knx

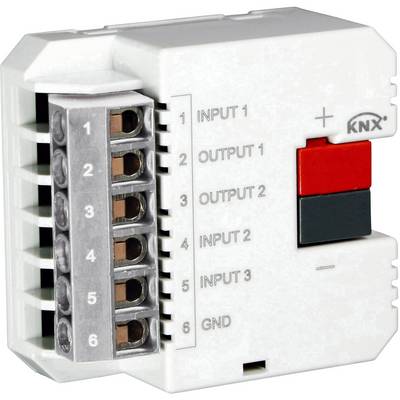

A white KNX switching actuator with connections and labels for 'Input 1', 'Output 1', 'Input 2', 'Output 2', 'Input 3', 'GND'.
Technical drawing of an electrical component with dimensions 44 x 41.5 x 20 mm. Shows connection terminals and housing structure.
'Circuit diagram shows various output options: LED, Open Collector, Binary; and input options: TF06 / PT1000.'
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 99.99 / piece)
€ 125.00
-20 %
€ 99.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Operating voltage: via KNX bus voltage
Product type

Interface

Series

KNX

Used at

Indoors

IP20

Data transfer (Smart Home)

Wired

Channels

5

Frequency

868 MHz

Mounting type

Flush mount

Factory colour

White

Width

44 mm

Height

41.5 mm

Depth

20 mm

Dim

(W x H x D) 44 x 41.5 x 20 mm

Hub

Not required, optional for remote access

n.rel.

Weight

50 g

Features

Signal input

Documents & Downloads

Datasheet

Datasheet 1954072 Müller KNX 23828 Interface EA 36.32 knx

User & Safety Instructions

User & Safety Instructions 1954072 Müller KNX 23828 Interface EA 36.32 knx

Description

Pushbutton interface for KNX-TP building control systems

This text is machine translated.

Features

  • 3 configurable inputs, of which 2 can be interconnected as temperature sensor input (PT1000)2 binary outputs can be configured as LED driver or as open collectorIntegrated room temperature controllerExtensive ETSFlush mountingCompact dimensions
