Müller KNX 24700 Room thermostat TS 30.12 knx
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 79.99 / piece)
€ 79.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details

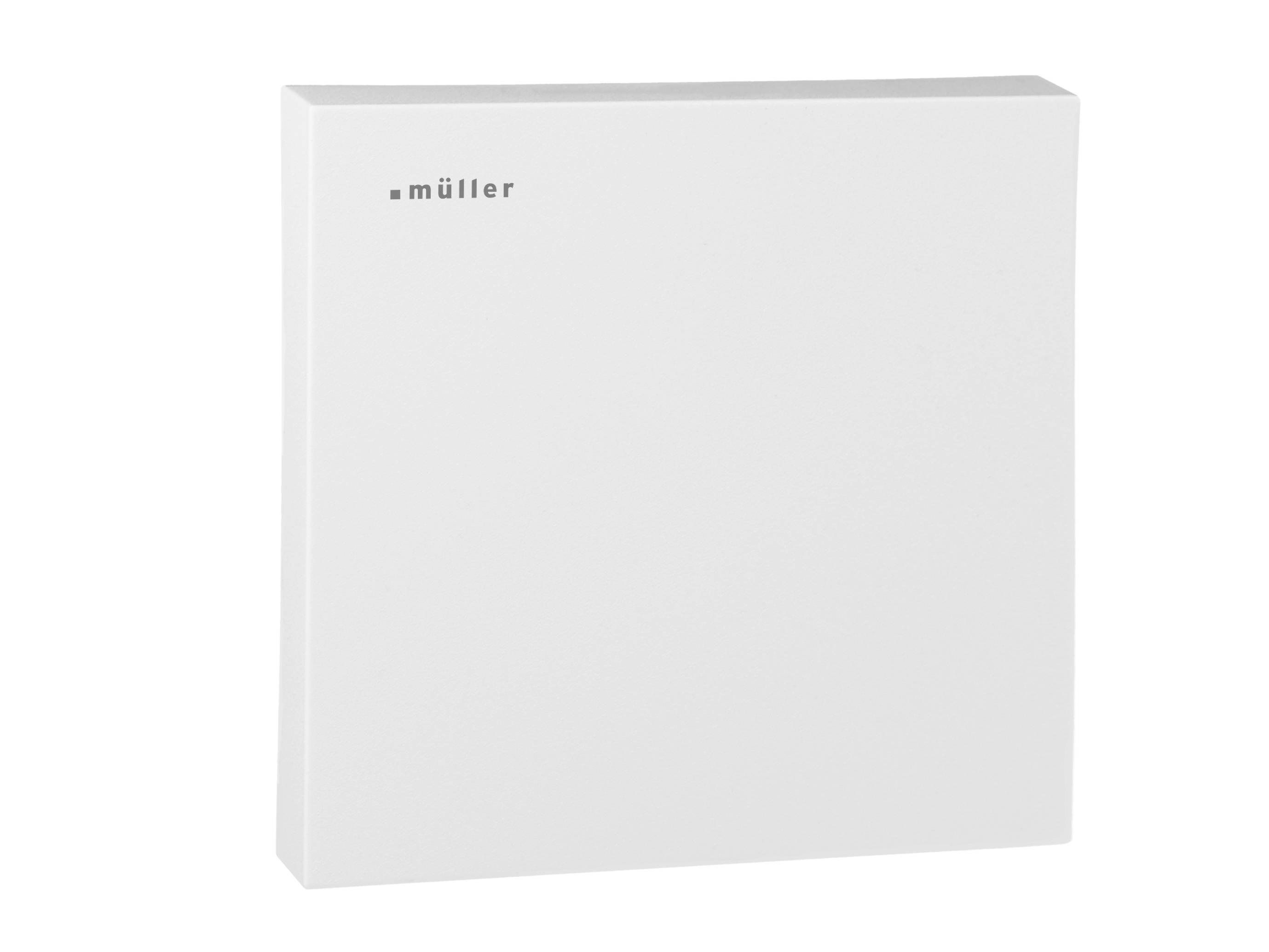

Weidmüller TS 30.12 KNX white, room temperature controller
- Integrated room temperature control (2 zones possible)
- Flexible sensor integration (up to 4 temperature values + external sensors)
- 3× 0–10 V analog outputs (e.g. for fan coils or actuators)
- 5 versatile binary and analogue inputs
- RGB / RGBW / Tunable White light control
- KNX Secure and update enabled (future-proof)
- Intuitive ETS structure & easy commissioning
- Modern, flat design (80 mm, surface-mounted)
Technical specifications
- Built-in humidity sensor
- 5 additional binary and analogue inputs for external contacts/sensors
- Product type
Room thermostat
- Series
KNX
Manufacturer-specific
- Used at
Indoors
IP20
- Operating voltage
29 V DC
0.5 W
- Data transfer (Smart Home)
Wired
- Channels
5
- Mounting type
Wall
Surface-mount
- Factory colour
Studio white (similar to RAL 9016)
- Width
80.5 mm
- Height
80.5 mm
- Depth
17 mm
- Dim
(W x H x D) 80.5 x 80.5 x 17 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- Weight
75
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3771299 Müller KNX 24700 Room thermostat TS 30.12 knx
User & Safety Instructions
User & Safety Instructions 3771299 Müller KNX 24700 Room thermostat TS 30.12 knx
Description
Provide an intelligent feel-good climate in every room – with the Hugo Müller TS 30.12 KNX room temperature controller. The compact, pure white device combines precise temperature and humidity measurement in a modern wall construction design (80 mm). Thanks to the KNX standard, it fits seamlessly into your professional building automation. Equipped with additional binary and analogue inputs, this sensor offers maximum flexibility for external sensors or keys. Efficient, inconspicuous and absolutely reliable - the smart solution for your modern home or office.
This text is machine translated.
This text is machine translated.
Features
- Recording of the room temperature
- Temperature sensor (measuring range 0...50 °C)
- 2 separate temperature controls via KNX
- Temperature control possible with up to 4 Sensor values
- 5 binary and analogue inputs (e.g. for connection of an external temperature sensor)
- 3x analogue outputs (0-10V)
- RGB, RGBW and Tunable White dimming function
- KNX secure
- Updateable
- Clearly structured ETS
- Easy handling and installation
- Modern, flat design for surface mounting [80 mm]
- Party function
