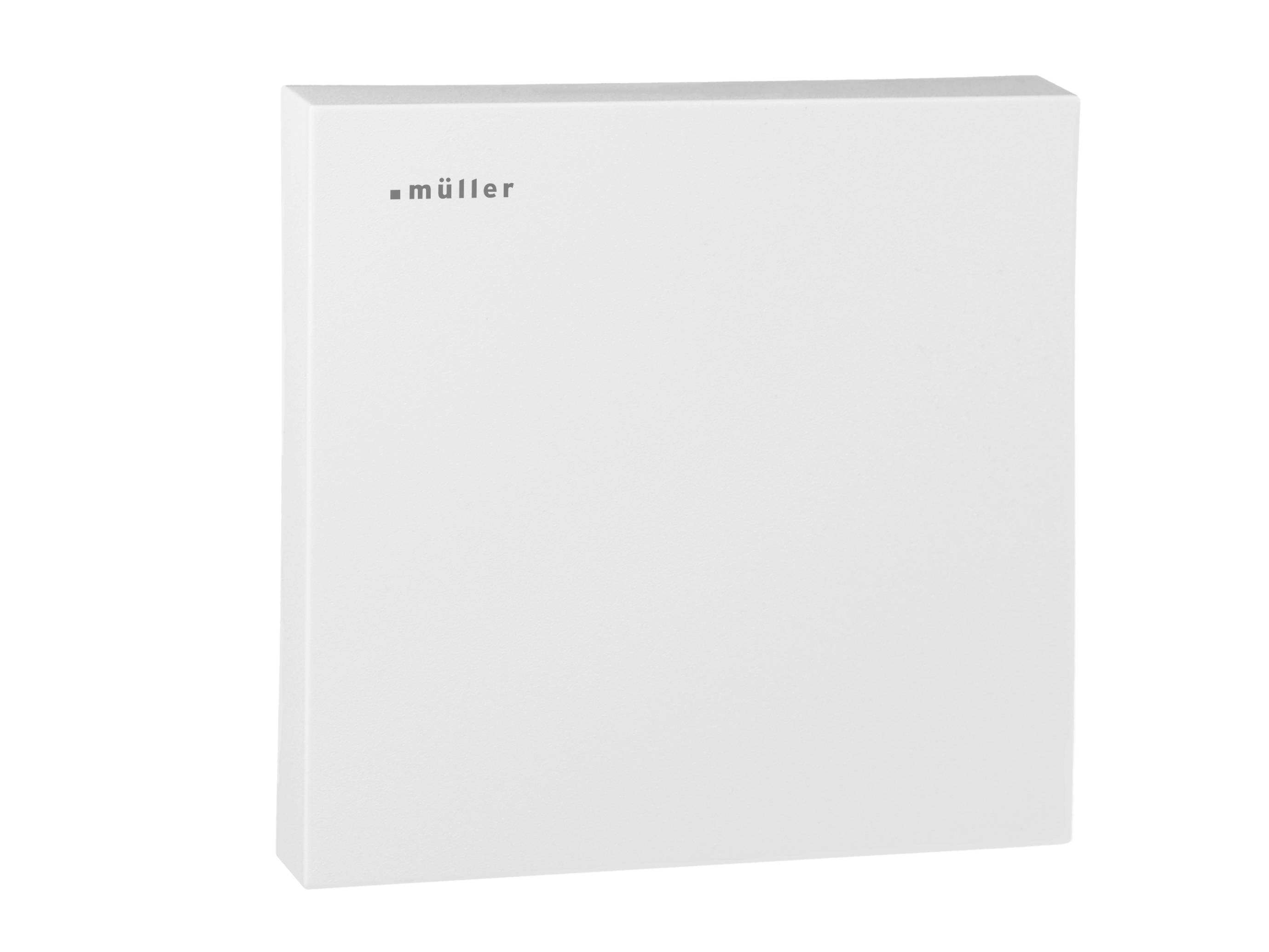

Müller KNX 24702 Room thermostat hygrostat combo GS 30.12 knx
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Weidmüller GS 30.12 KNX white, room temperature regulator with hygrostat
- Room controller with temperature, humidity, and air pressure sensor
- 2 independent temperature controllers & 2 VAV control circuits
- Intelligent control with up to 4 sensor values (incl. external sensors)
- 3× 0–10 V analog outputs (e.g. for VAV, fan coils or actuators)
- 5 freely usable binary and analogue inputs
- Integrated air quality and humidity monitoring incl. limit logic
- RGB / RGBW / Tunable White light control
- KNX Secure and update enabled (future-proof)
- Clear ETS structure and easy commissioning
- Modern, flat surface-design (80 mm)
Technical specifications
- KNX Secure (encrypted communication)
- Product type
Room thermostat hygrostat combo
- Series
KNX
- Used at
Indoors
IP20
- Power supply (LOV)
via bus
- Data transfer (Smart Home)
Wired
- Mounting type
Wall
Surface-mount
- Factory colour
Studio white (similar to RAL 9016)
- Width
80.5 mm
- Height
80.5 mm
- Depth
17 mm
- Dim
(W x H x D) 80.5 x 80.5 x 17 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- Weight
90 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3771303 Müller KNX 24702 Room thermostat hygrostat combo GS 30.12 knx
User & Safety Instructions
User & Safety Instructions 3771303 Müller KNX 24702 Room thermostat hygrostat combo GS 30.12 knx
Description
Ensure a completely healthy and comfortable climate in your rooms with the müller GS 30.12 KNX! This modern room thermostat with integrated hygrostat measures precise temperature, relative humidity as well as absolute air pressure. Thanks to its intelligent functions such as dew point monitoring and integrated VAV ventilation controls, it prevents moisture damage and optimizes the room air quality. The flat, minimalist design in noble studio white fits inconspicuously into any modern living or work environment. Equipped with KNX Secure and flexible inputs, it offers maximum security and future-proof Smart home connectivity.
This text is machine translated.
This text is machine translated.
Features
- Temperature, air pressure and humidity sensors
- Measuring air quality
- Temperature sensor (measuring range 0...50 °C)
- Target temperature can be changed manually via touch-control panel
- Air humidity sensor (measurement range 0...100 % rel. Humidity
- Set temperature can be changed manually using the touch control panel
- Humidity comparison function
- 2 separate temperature controls via KNX
- Temperature control possible with up to 4 Sensor values
- 2 VAV controls possible
- 5 binary and analogue inputs (e.g. for connection of an external temperature sensor)
- 3x analogue outputs (0-10V)
- RGB, RGBW and Tunable White dimming function
- KNX secure
- Updateable
- Clearly structured ETS
- Easy handling and installation
- Modern, flat design for surface mounting [80 mm]
- Party function
Scope of delivery
- 1x müller GS 30.12 KNX (room temperature controller with hygrostat, studio white)
- 1x KNX terminal clamp
- Operating / mounting instructions
