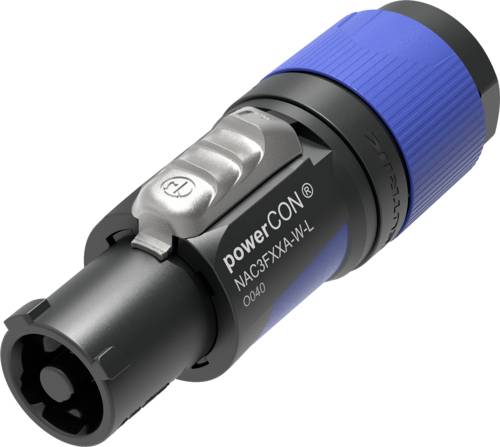

Neutrik NAC3FXXA-W-L Mains connector powerCON Socket, straight Total number of pins: 2 + PE 16 A Blue 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Mains connector
Connector type
Socket, straight
Total no. of pins
2 + PE
Connection
Screw terminal
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
PowerCON blue AC-power IN, cable diameter 10-16 mm
Technical specifications
- Conductor cross-section (mm²): 1.5 - 2.5 mm²
- Conductor cross-section (AWG) 14 - 12 AWG
- Lock: Dial
- Contact coating AG
- Locking element: Zinc die cast
- Sleeve:Polypropylene/TPE
- Packaging type
Piece
- Product type
Mains connector
- Type
NAC3FXXA
- Connector type
Socket, straight
- Total no. of pins
2 + PE
- Connection
Screw terminal
- Nominal voltage
250 V AC
- Factory colour
Blue
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
14
- Case material
Polyamide 6.6
- Weight
0.044 kg
- Manufacturer part #
NAC3FXXA-W-L
- Cable Ø (max.)
16 mm
- Cable Ø up to
10 mm
- Cable Ø range
10 - 16 mm
- Contact resistance
≤ 2 mΩ
- Contact material
Copper
- Number of pins
2
- RoHS-compliant
Yes
IP20
- Series
powerCON
- Temperature range
-33 - +80 °C
- Type
powerCON blau
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3123467 Neutrik NAC3FXXA-W-L Mains connector powerCON Socket, straight Total number of pins: 2 + PE 16 A Blue 1 pc(s) Piece
Description
Lockable AC power cable connector, coded and color coded (blue) for power in, screw terminal mounting, for cable diameters from 10 to 16 mm. The powerCON FXXA/FXXB is a single-phase (3-conductor) lockable power connector with circuit breaking capability when it is combined with power con XX series sockets. It replaces device plug connectors wherever a very robust solution is required in combination with a locking device to ensure a safe power connection.
This text is machine translated.
This text is machine translated.
Features
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 NO. 60320-1 certified, therefore certified as part of cable sets according to IEC 60799 / UL 817 and devices according to IEC 62368-1
- Ergonomic design with non-slip two-component housing
- Power-In (blue) and Power-Out (gray) versions with different coding to avoid confusion
- Unique NEUTRIK locking socket and strain relief for cable diameters from 10 mm to 16 mm
- Easy to install as the strain relief locks mechanically with the insert and is aligned with the casing
- Superior NEUTRIK quality standard, extremely robust and reliable
- Simple and reliable screw-lock system
- Improved kink protection through two-component feed
Hints
Caution: The PowerCon is a plug connector and not a plug-in arrangement, this means that the PowerCon may be plugged in or pulled out neither under load nor voltage.
