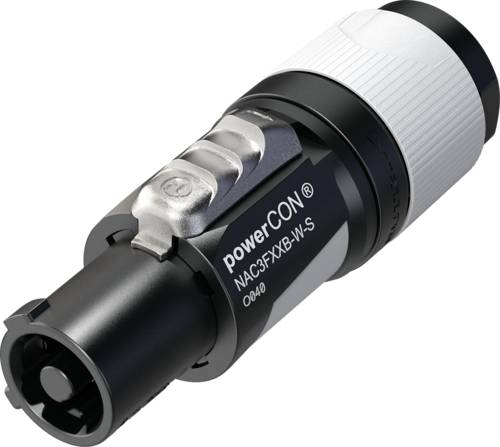

Neutrik NAC3FXXB-W-S Mains connector powerCON Socket, straight Total number of pins: 2 + PE 16 A Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mains connector
Connector type
Socket, straight
Total no. of pins
2 + PE
Connection
Screw terminal
Nominal voltage
250 V AC
Number
Total (€ 11.99 / piece)
€ 11.99
incl. VAT
14-day return policy included
Technical specifications
- Conductor cross-section (mm²): 1.5 - 2.5 mm²
- Conductor cross-section (AWG) 14 - 12 AWG
- Lock: Dial
- Contact coating AG
- Locking element: Zinc die cast
- Sleeve:Polypropylene/TPE
- Product type
Mains connector
- Type
NAC3FXXB
- Connector type
Socket, straight
- Total no. of pins
2 + PE
- Connection
Screw terminal
- Nominal voltage
250 V AC
- Factory colour
Grey
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
14
- Case material
Polyamide 6.6
- Weight
0.0400 kg
- Manufacturer part #
NAC3FXXB-W-S
- Cable Ø (max.)
12 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 12 mm
- Contact resistance
≤ 2 mΩ
- Contact material
Copper
- Number of pins
2
- Width
26.5000 mm
- Height
82.5000 mm
IP20
- Series
powerCON
- Temperature range
-33 - +80 °C
- Type
powerCON grau
- Leading contact (PE)
Yes
- Version
Connector
- Cable use
Current
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3123468 Neutrik NAC3FXXB-W-S Mains connector powerCON Socket, straight Total number of pins: 2 + PE 16 A Grey 1 pc(s)
Description
Lockable AC power cable connector, coded and color coded (gray) for power out, screw terminal mounting, for cable diameter 6 - 12 mm. The powerCON FXXA/FXXB is a single-phase (3-conductor) lockable power connector with circuit breaking capability when connected to power con XX series sockets. It replaces device plug connectors wherever a very robust solution is required in combination with a locking device to ensure a safe power connection.
This text is machine translated.
This text is machine translated.
Features
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 NO. 60320-1 certified, therefore certified as part of cable sets according to IEC 60799 / UL 817 and devices according to IEC 62368-1
- Ergonomic design with non-slip two-component housing
- Power-In (blue) and Power-Out (gray) versions with different coding to avoid confusion
- Unique NEUTRIK locking socket and strain relief for cable diameters from 6 mm to 12 mm
- Easy to install as the strain relief locks mechanically with the insert and is aligned with the casing
- Superior NEUTRIK quality standard, extremely robust and reliable
- Simple and reliable screw-lock system
- Improved kink protection through two-component feed
Hints
Caution: The PowerCon is a plug connector and not a plug-in arrangement, this means that the PowerCon may be plugged in or pulled out neither under load nor voltage.
