Buy Neutrik NBLC75BVZ17 NBLC75BVZ17 BNC connector Plug, straight 75 Ω 1 pc(s)

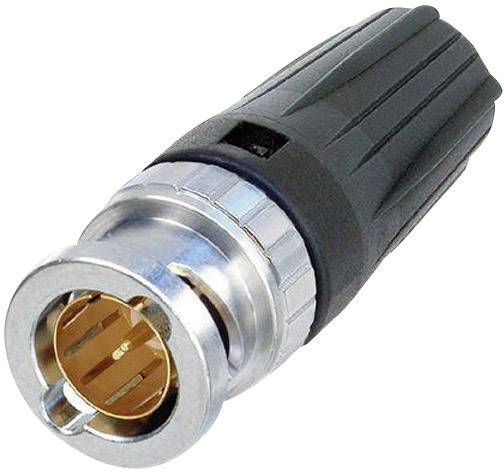

'BNC connector for joining coaxial cables, with metal contact and insulating plastic grip, typical in AV technology.'

Cross-section of a cable with labels: 'gold-plated earth contact', 'guide groove', 'jacket crimping', 'rewTID strain relief', 'Neutrik BNC'.

1/2

Cable category

Belden 7731A

Draka 1.6/7.3AF

RG 11

Product type

BNC connector

Connector type

Plug, straight

Impedance

75 Ω

Connection

Crimp

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

99 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 9.24 / piece)

€ 9.24

plus VAT.

Report legal concerns

Neutrik NBLC75BVZ17 NBLC75BVZ17 BNC connector Plug, straight 75 Ω 1 pc(s)

Highlights & Details

Push-pull locking
Fit for HDTV

Technical specifications

Cable category: Belden 7731A
Draka 1.6/7.3AF
RG 11

Product type: BNC connector

Connector type: Plug, straight

Impedance: 75 Ω

Connection: Crimp

Content: 1 pc(s)

Cable Ø: 10.40 mm

Manufacturer part #: NBLC75BVZ17

Contact material: Gold plated

Material (details): Brass, nickel-plated with full PA6 insulation

Temperature range: -30 - +40 °C

Type: NBLC75BVZ17

Seal type: Bayonet

Type: RearTwist® Large

Cable type: RG 11-/Video cable

Type: NBLC 75 BVZ 17

Frequency: 0 - 3 GHz

Connection: Crimp

Cable diameter (details): > 8 mm

Voltage: 500 V/AC, rms.

Seal: Bayonet

Documents & Downloads

Datasheet

Datasheet 746699 Neutrik NBLC75BVZ17 NBLC75BVZ17 BNC connector Plug, straight 75 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 746699 Neutrik NBLC75BVZ17 NBLC75BVZ17 BNC connector Plug, straight 75 Ω 1 pc(s)

Information

Information 746699 Neutrik NBLC75BVZ17 NBLC75BVZ17 BNC connector Plug, straight 75 Ω 1 pc(s)

Description

The 75 Ω RearTwist® Large BNC cable plug NBLC75BVZ17 has been developed for large cable diameters , like e.g., RG 11 cables, which are used for long distances and high data rates (HD) .
Like all Neutrik BNCs it offers excellent reflections and is therefore best suited for HDTV applicaitons.
The patented RearTwist® clamping sleeve guarantees an easy handling, even for high density of connector and offers the possibility of coloured marking.
Suitable for cable: Belden 7731A.
