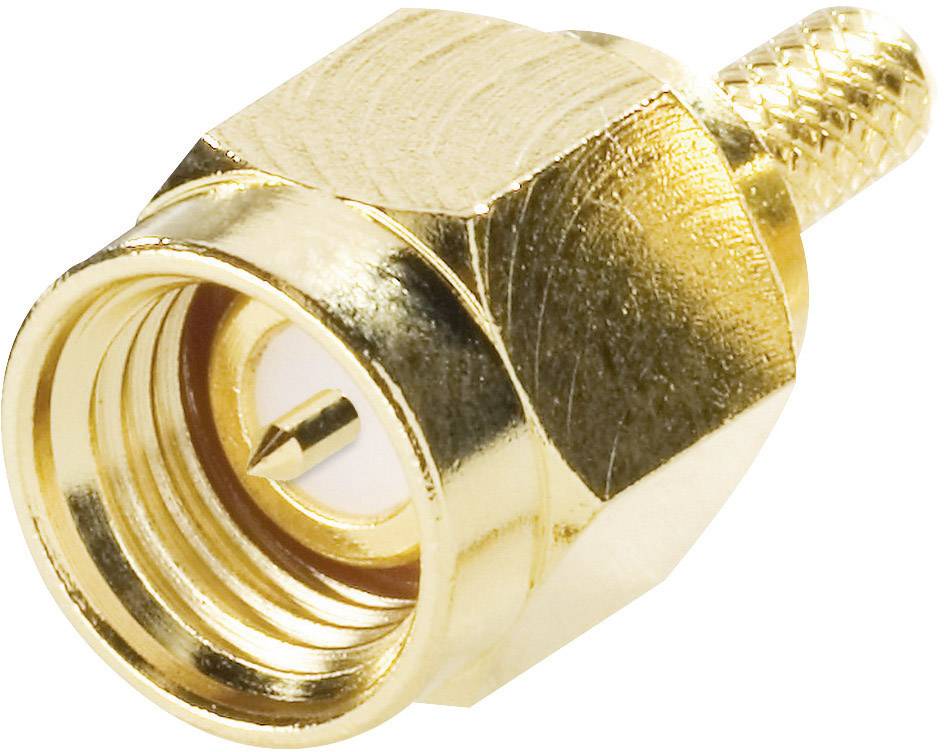

Amphenol SMA1111A2-3GT50G-5-50 SMA1111A2-3GT50G-5-50 SMA connector Plug, straight 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Cable category
RG 174
Product type
SMA connector
Connector type
Plug, straight
Impedance
50 Ω
Connection
Crimp
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
14-day return policy included
Highlights & Details
Amphenol SMA1111A2-3GT50G-5-50 SMA1111A2-3GT50G-5-50 SMA connector Plug, straight 50 Ω 1 pc(s)
- The plug socket - name, according to the shape of the inner conductor defined.
Technical specifications
- Cable category
RG 174
- Product type
SMA connector
- Connector type
Plug, straight
- Impedance
50 Ω
- Connection
Crimp
- Content
1 pc(s)
- Max. frequency
18 GHz
- Manufacturer part #
SMA1111A2-3GT50G-5-50
- Insulation material
PTFE
- Material (details)
Gold-plated brass
- Type
SMA1111A2-3GT50G-5-50
- Type
Connector
- Frequency range
18 GHz
- Connection
Crimp
Documents & Downloads
Datasheet
Datasheet 742505 Amphenol SMA1111A2-3GT50G-5-50 SMA1111A2-3GT50G-5-50 SMA connector Plug, straight 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 742505 Amphenol SMA1111A2-3GT50G-5-50 SMA1111A2-3GT50G-5-50 SMA connector Plug, straight 50 Ω 1 pc(s)
Description
SMA-Plug connector in Industrial Quality made of passivated stainless steel. \Contacts: Plug: gold-plated brass Socket: Beryllium copper gold-plated. Insulator made of PTFE. Impedace 50 Ω. Frequency range upto 18 GHz.Contact resistance 2 mΩ. Insulation resistance 5000 MΩ.
