OBO Bettermann 2003112 Lining box (L x W) 80 mm x 80 mm 1 pc(s)

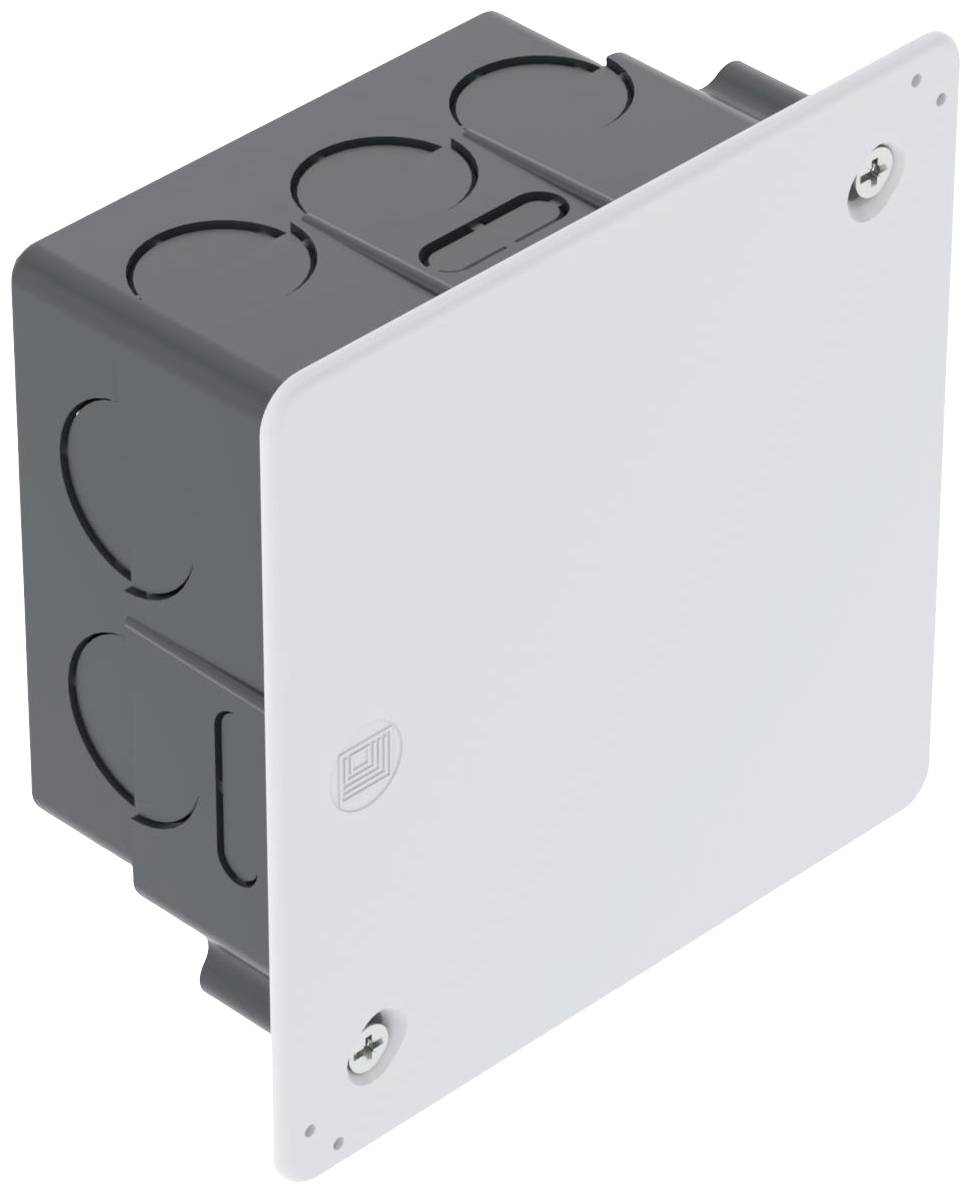

A grey distribution box with multiple cable connections on the side covers. The front is secured with two screws.
Technical drawing of a square component. Top surface shows three circular openings. Dimensions: 97x97mm, height 48mm, other dimensions marked.
1/2
EAN:
Part number:
Item no:
Fast track dispatch on Tue 10 Nov
53 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.99 / piece)
€ 6.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type = flush-mounted
  • The form = square
  • Design = connection socket/box
  • Design = Individual
  • Assembly = without
  • Length = 80 mm
  • Width = 80 mm
  • With screws = No
  • Introduction of rear = No
  • The number of entries = 12
  • Material = Plastic
  • Halogen-free = No
  • Surface = untreated
  • Color = black
  • Protection (IP) = IP20
  • Cover Mounting = screwed
  • Sealable = No
  • Function receives = without
  • With Shielding = No
  • Wind-tight = No
  • Supports = without
  • With mounting flanges = No
Product type

Lining box

Mounting type

Flush-mount

Max. fire resistance

750 °C

Content

1 pc(s)

Factory colour

Black

Dim

(L x W) 80 mm x 80 mm

Length

80 mm

Width

80 mm

IP20

Mounting

None

Mounting type

Flush mount

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1956682 OBO Bettermann 2003112 Lining box (L x W) 80 mm x 80 mm 1 pc(s)

Description

Connection box for the jamming of terminals, with lid and cover screw (15 mm), lid margin is plan to surface is roughened, in connection with cover and lid screws reach the junction boxes the VDE mark according to VDE 0606 and are flame-resistant according to VDE 0471/DIN 695 part 2-1, test temperature 750 °C, protection class IP20.

This text is machine translated.
