OBO Bettermann 2003124 Lining box (L x W) 150 mm x 150 mm 1 pc(s)

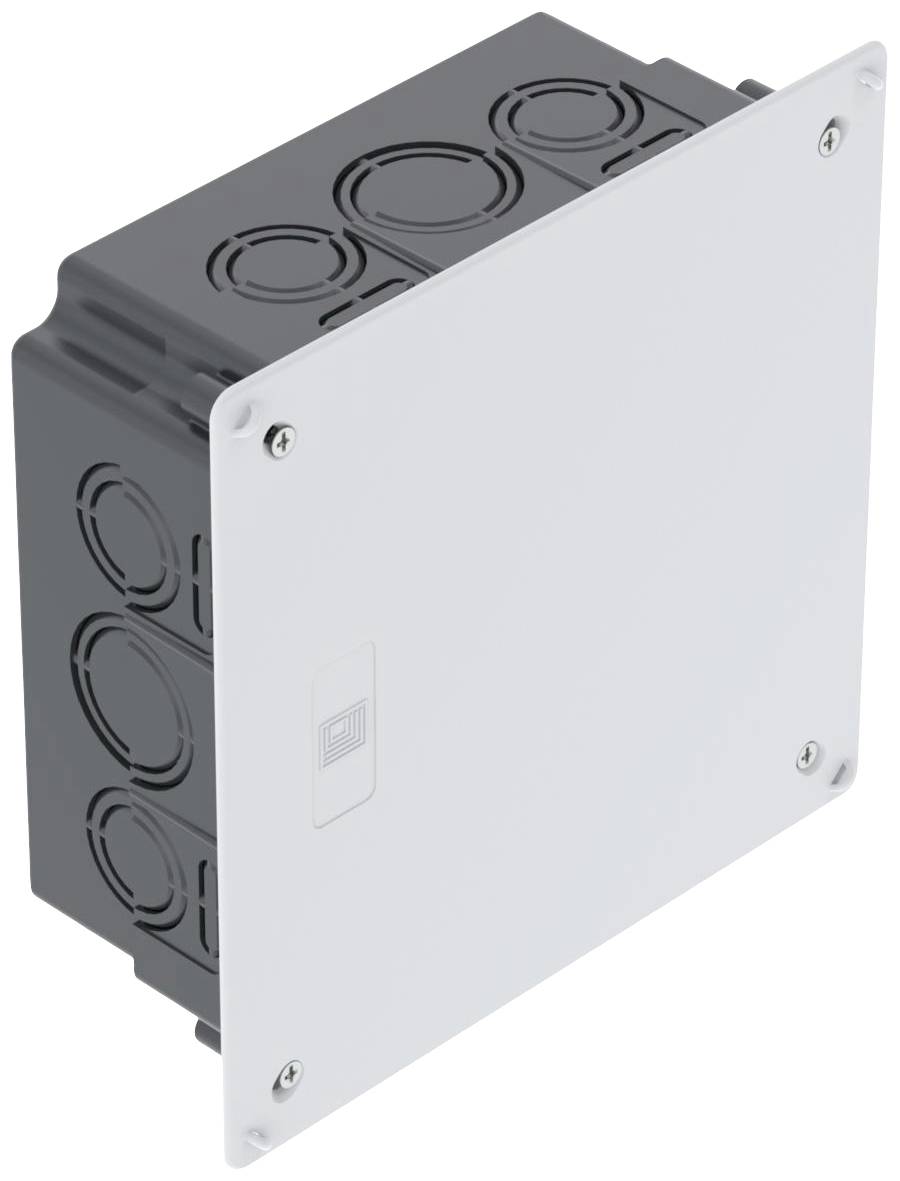

A rectangular, grey electronic control box with a circular recess on the side, which is likely intended for cable management.

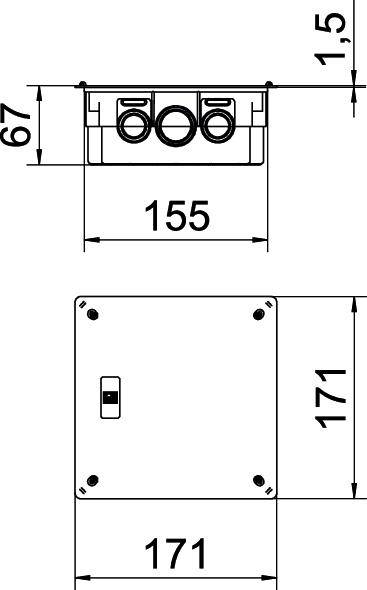

Technical drawing of a rectangular device with dimensions: width 155 mm, height 171 mm, depth 67 mm. Contains switches and connections.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 16.99 / piece)
€ 18.99
-11 %
€ 16.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type = flush-mounted
  • The form = square
  • Design = connection socket/box
  • Design = Individual
  • Assembly = without
  • Length = 150 mm
  • Width = 150 mm
  • With screws = No
  • Introduction of rear = No
  • The number of entries = 12
  • Material = Plastic
  • Halogen-free = No
  • Surface = untreated
  • Color = black
  • Protection (IP) = IP20
  • Cover Mounting = screwed
  • Sealable = No
  • Function receives = without
  • With Shielding = No
  • Wind-tight = No
  • Supports = without
  • With mounting flanges = No
Product type

Lining box

Mounting type

Flush-mount

Max. fire resistance

750 °C

Content

1 pc(s)

Factory colour

Black

Dim

(L x W) 150 mm x 150 mm

Length

150 mm

Width

150 mm

IP20

Mounting

None

Mounting type

Flush mount

Flush mounted (plaster)

Black

150

Single

FALSE

Square

Untreated

Cable junction box

150 m

Plastic

IP20

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1959379 OBO Bettermann 2003124 Lining box (L x W) 150 mm x 150 mm 1 pc(s)

Description

Connection box for the jamming of terminals, with lid and cover screw (15 mm), lid margin is plan to surface is roughened, in connection with cover and lid screws reach the junction boxes the VDE mark according to VDE 0606 and are flame-resistant according to VDE 0471/DIN 695 part 2-1, test temperature 750 °C, protection class IP20.

This text is machine translated.
