Name: Omnitronic MZD-88 19" mixer No. of channels:16
Brand: Omnitronic
SKU: 313305
Availability: InStock

A large silver rack-mount enclosure with numerous sockets on the front panel, likely a professional audio or video distribution unit.

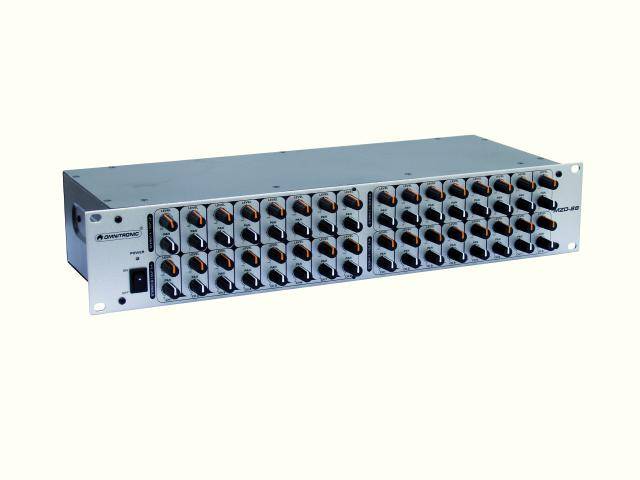

A silver-coloured rack-mount audio device with multiple rotary controls and input connections.

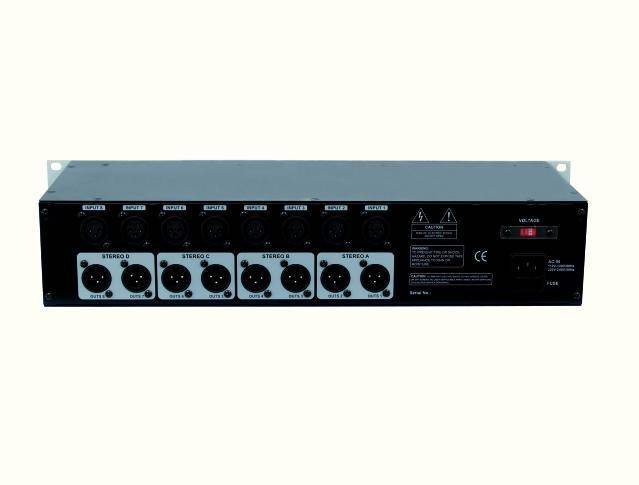

An audio device with eight XLR inputs and outputs, CE marking on the right. Black housing, suitable for studio or stage use.

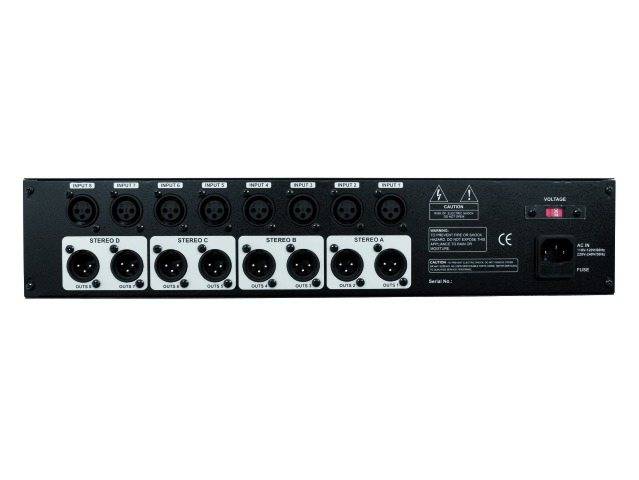

'Rear panel of an audio amplifier with multiple XLR inputs and outputs, voltage selector switch, and power connection.'

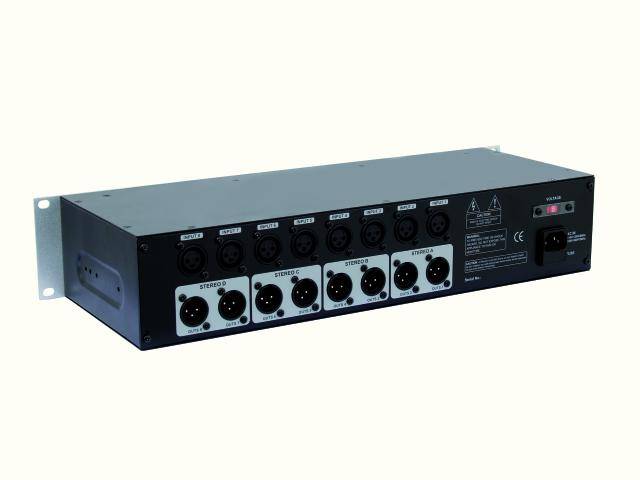

A black rack-mounted device with nine XLR inputs and outputs, a power switch, and a power cable on the right-hand side.

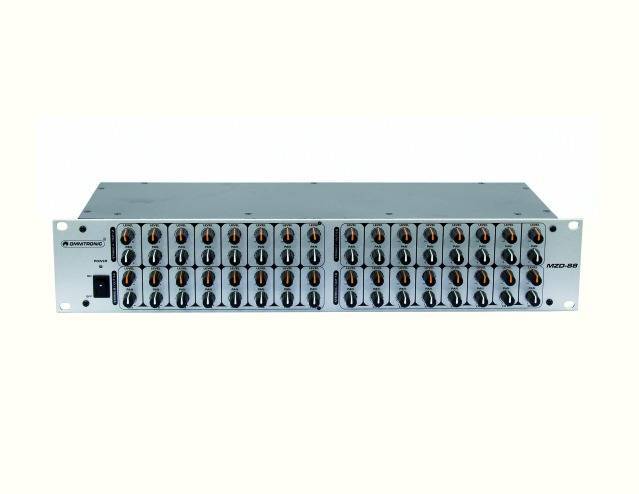

An electronic rack-mounted enclosure with multiple control buttons and sockets on the front panel, suitable for professional audio applications.

1/6

Dispatches on Fri 30 Oct

50 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 349.00 / piece)

€ 349.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Omnitronic MZD-88 matrix-zone distribution

8-channel audio mixer with matrix

Technical specifications

Power supply: 115/230V, 50/60 Hz ~
Total connection value: 10 W
Frequency response: 20-20000 Hz
Dynamic range: 100dB
Max. Input Level: +21 dBU
Input impedance: 10 kOhm
Max. Gain: +12 dB per channel
Dimensions (wxdxh): 482 x 195 x 89 mm
Weighs 3.5 kg.

Product type: 19" mixer

Channels: 16

No. of inputs: 8 x

Interfaces: XLR out
XLR in

No. of 6.3 mm headphone outputs: 1 x

No. of line-ins: 8 x

No. of microphone XLR inputs: 16 x

Weight: 4.2 kg

No of. XLR outputs: 4 x

Width: 550 mm

Height: 130 mm

Length: 255 mm

Dim: (L x W x H) 255 x 550 x 130 mm

Description

8-channel audio mixer with matrix · Matrix input assignment: 8 input sources can all 8 outputs can be assigned freely · Subdivision of the 8 outputs in 4 groups, each with separate level and pan controls per channel · Ultra-flexible configuration options; splits the signal of a maximum of 8 audio sources such as 8 mono zones or 4 Stereo zones, each with a different output signal · Inputs and outputs via balanced XLR sockets · Frequency range 20-20000 Hz · Rack installation, 2 HE
