Omnitronic RM-1422FX USB 19" mixer No. of channels:12 USB port
EAN:
Part number:
Item no:
Number
Total (€ 299.00 / piece)
€ 299.00
incl. VAT
14-day return policy included
Highlights & Details

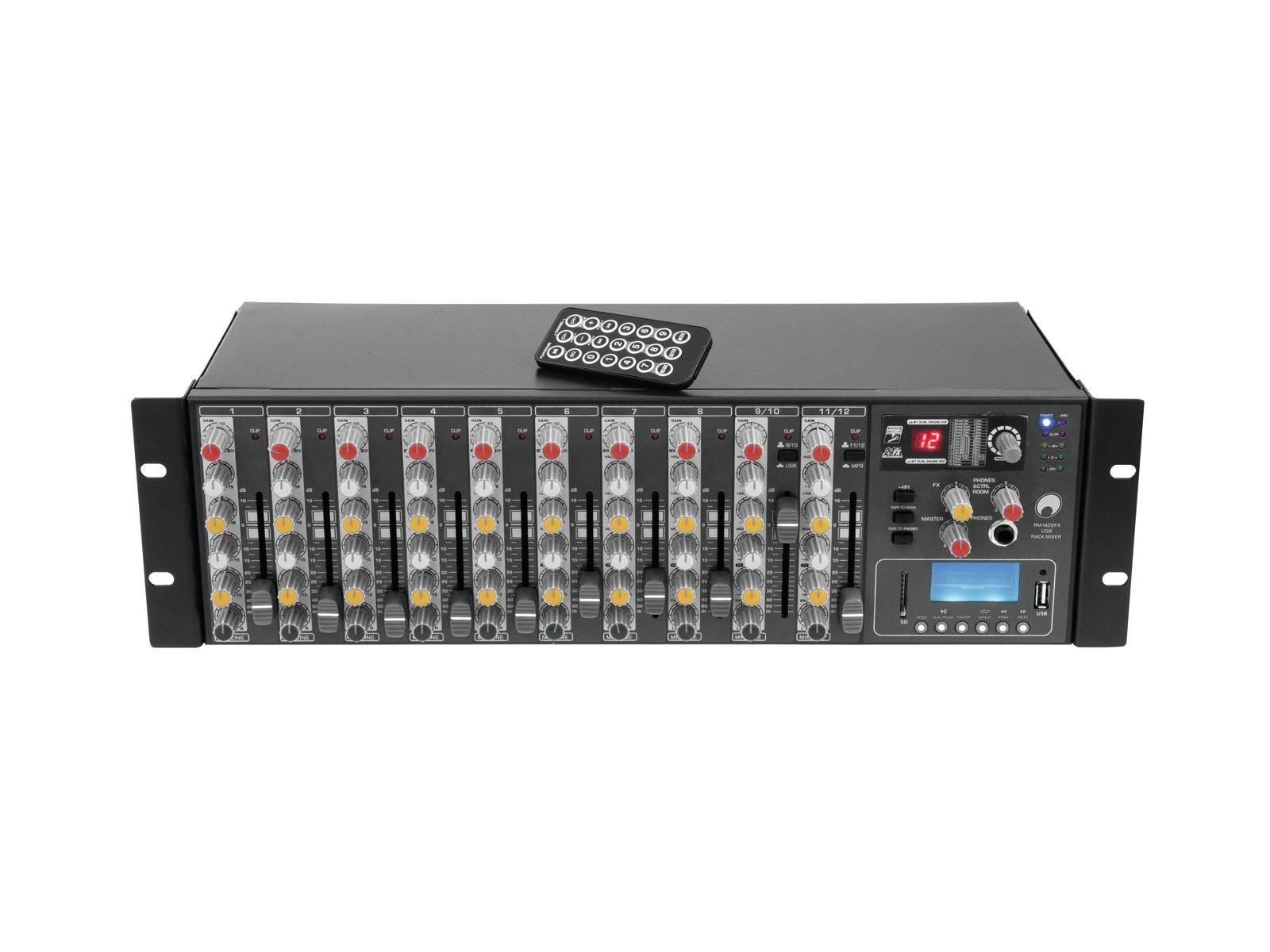

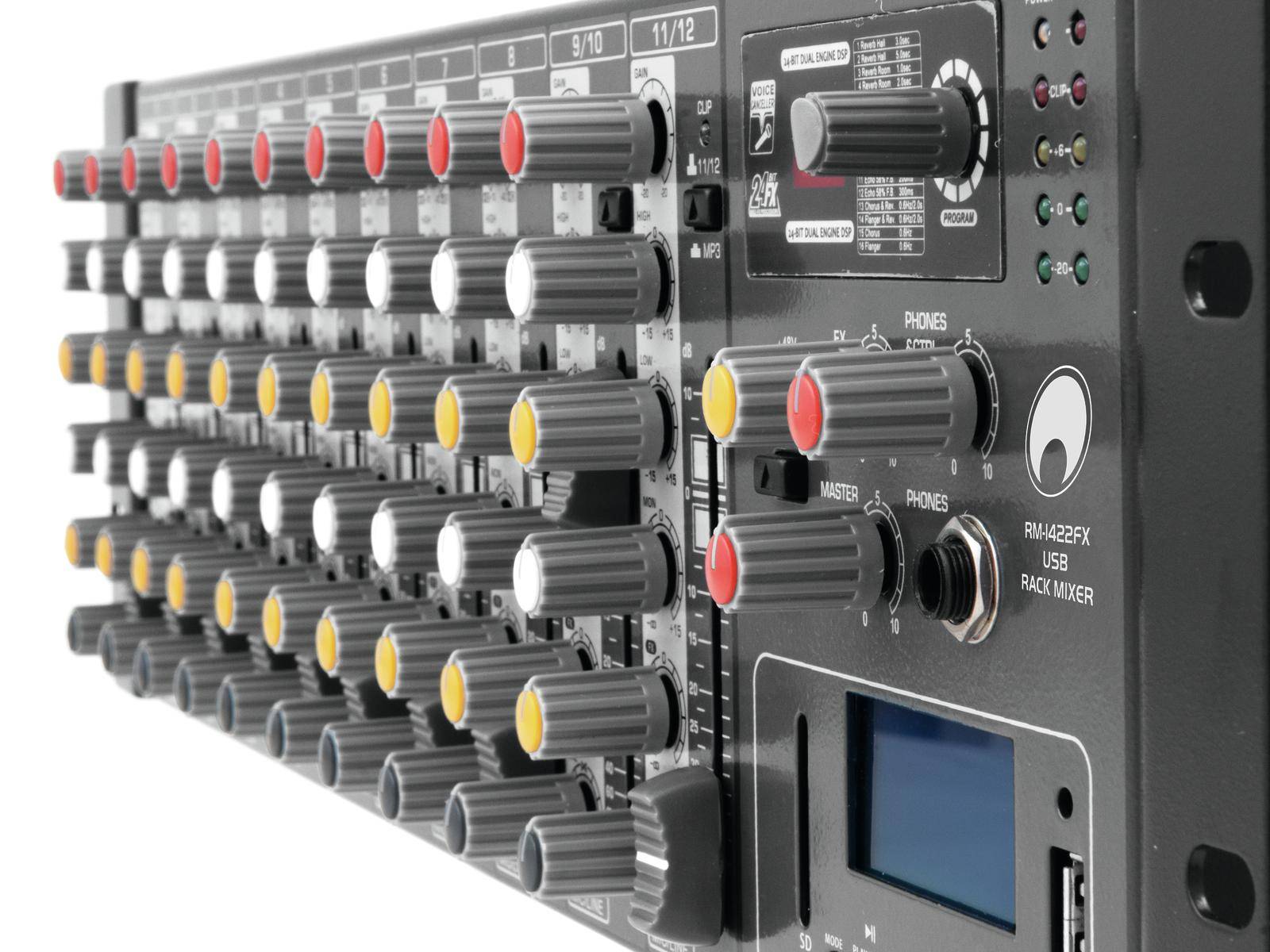

Professional 19" mixer with 12 channels, DSP-effect unit and MP3-Player
- Integrated USB audio interface allows recording and playback with a computer (PC and Mac)
- 24-bit DSP-effect unit with 16 different effects such as reverb and flanger, echo
- 8 mono input channels with gain control, 2-way EQ, pan control and channel fader
- 2 stereo input channels with 2-way EQ, balance control and channel fader
- 8-Channel inserts
- This text is machine translated.
Technical specifications
- Power supply: 100-240V AC, 50/60 Hz
- Total connection value: 50 W

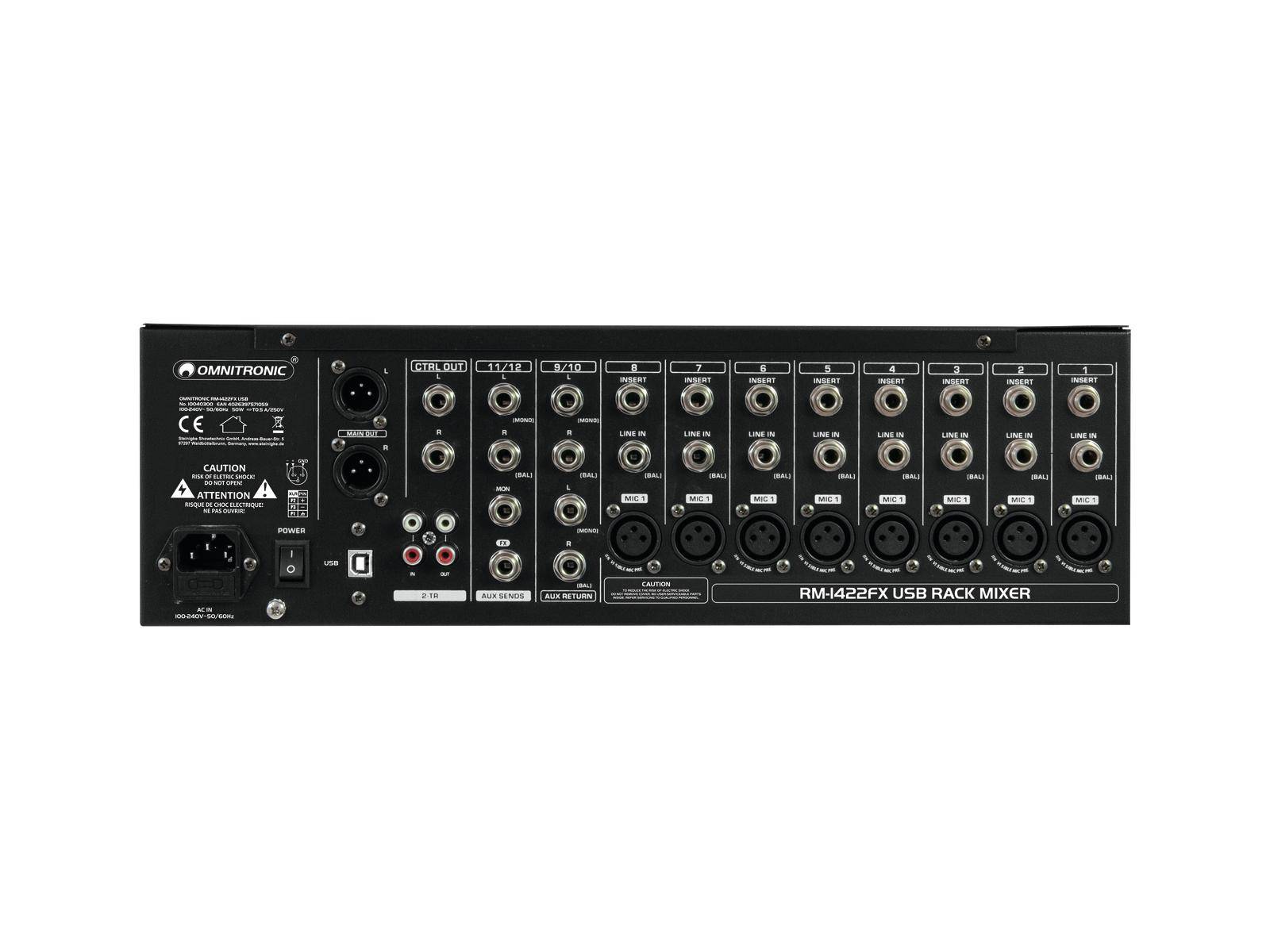

- Inputs:
- Mic, mono XLR balanced
- Line, mono jack balanced
- Channel Insert jack unbalanced
- Aux Return, Stereo L/R symmetric
- Line, stereo jack L/R symmetric
- Tape RCA L/R
- Outputs:
- The OutXLR L/R symmetric
- Control Room OutKlinke L/R unbalanced
- Aux send jack unbalanced
- Tape RCA L/R
- Headphone jack unbalanced
- Headphones impedance: 8 Ohm
- USB-connection: 1.1 type B
- Frequency range: 20-20 000 kHz
- Noise: 0.05 %
- Noise Ratio: 89 dB
- Sound control/channel:
- Height: 15 dB at 12kHz
- Bass: ±15 dB at 80 Hz
- Dimensions (L x W x H): 180 x 483 x 136 mm
- Weight: 3.8 kg
- Shipping weight: 5,02 kg
- Product type
19" mixer
- Channels
12
- No. of inputs
18 x
- Category
USB port
- Interfaces
6.3 mm jack in
RCA in
RCA out
XLR in
XLR out
USB type B
USB type A
- No. of line-ins
12 x
- No. of microphone XLR inputs
8 x
- No. of USB type A ports
1 x
- Weight
3.8 kg
- No of. USB type B ports
1 x
- No of. XLR outputs
1 x
- Width
483 mm
- Height
180 mm
- Length
136 mm
- Dim
(L x W x H) 136 x 483 x 180 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1529892 Omnitronic RM-1422FX USB 19" mixer No. of channels:12 USB port
Description
Features
- Integrated USB audio interface allows recording and playback with a computer (PC and Mac)
- 24-bit DSP-effect unit with 16 different effects such as reverb and flanger, echo
- 8 mono input channels with gain control, 2-way EQ, pan control and channel fader
- 2 stereo input channels with 2-way EQ, balance control and channel fader
- 8-Channel inserts
- Tape input and output
- Separate outputs for main mix and Control Room
- 2 Aux Send Outputs
- Adjustable headphone output
- +48 V phantom power, switchable
- 4-digit Stereo-LED level display
- MP3 player with SD card slot, USB-connection, LCD display and IR remote control
- Rack installation, 3 HE
