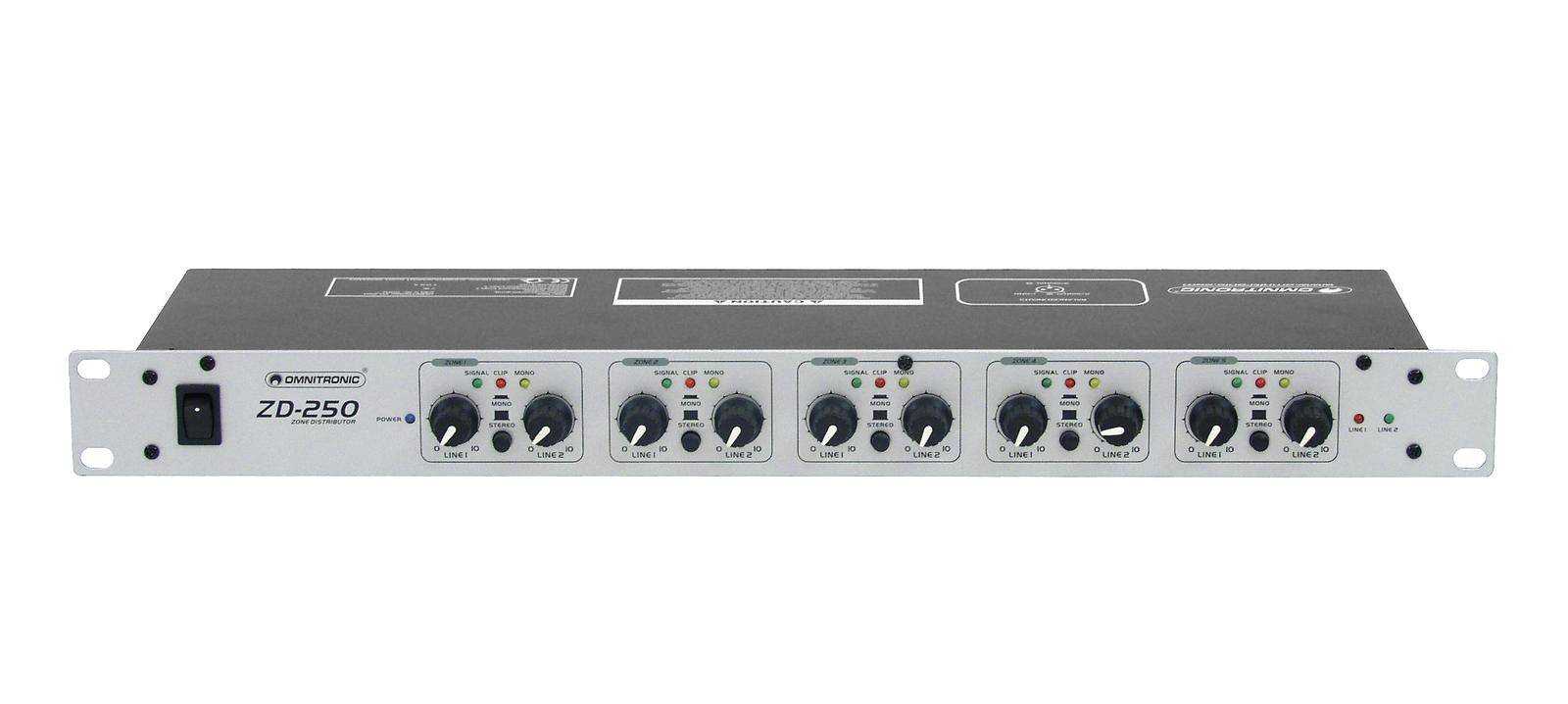

Omnitronic ZD-250 19" mixer No. of channels:5
EAN:
Part number:
Item no:
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
Highlights & Details
Practical Distributor

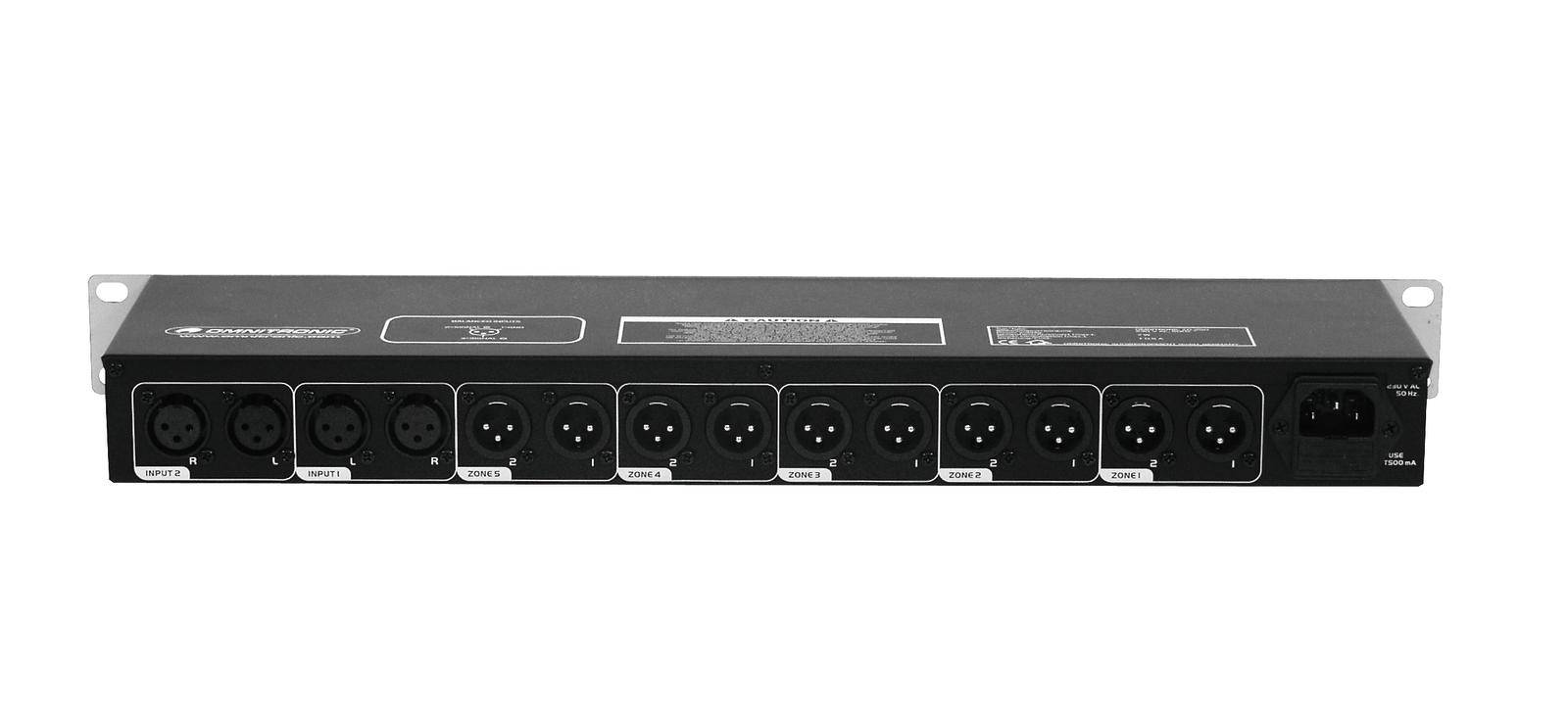

- 2 stereo inputs (XLR)
- 5 Stereo zones outputs (XLR)
- Each zone with volume controls for both inputs as well as mono switch
- This text is machine translated.
Technical specifications
- Power supply: 230 V AC, 50 Hz ~
- Total connection value: 7 W
- Input impedance: 45.1 KOhm
- Max. Input level: 9dB
- Output level: 22 dB
- Ausgansimpedanz: 125 Ohm
- Max. Gain: 15 dB
- Noise: 0.2 %
- Noise Ratio: 69 dB
- Dimensions (wxdxh): 482 x 126 x 44 mm
- Weight: 2.4 kg
- Shipping weight: 2.75 kg
- Channels
5
- No. of inputs
5 x
- Interfaces
XLR in
XLR out
- Weight
2.4 kg
- No of. XLR outputs
5 x
- Width
483 mm
- Height
44 mm
- Dim
(W x H x D) 483 x 44 x 126 mm
- Depth
126 mm
- Impedance
125 Ω
- Product type
19" mixer
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1529990 Omnitronic ZD-250 19" mixer No. of channels:5
Description
Features
- Expands each mixer to additional outputs
- 2 Stereo XLR inputs
- 5 stereo-zone outputs via XLR sockets
- Each zone with volume controls for both inputs as well as mono switch
- LED display for signal input, Overdrive and Mono/Stereo mode
- Rack installation with 1 U
