Omnitronic ZD-160 19" mixer No. of channels:6
EAN:
Part number:
Item no:
Number
Total (€ 210.08 / piece)
€ 210.08
plus VAT.
Highlights & Details

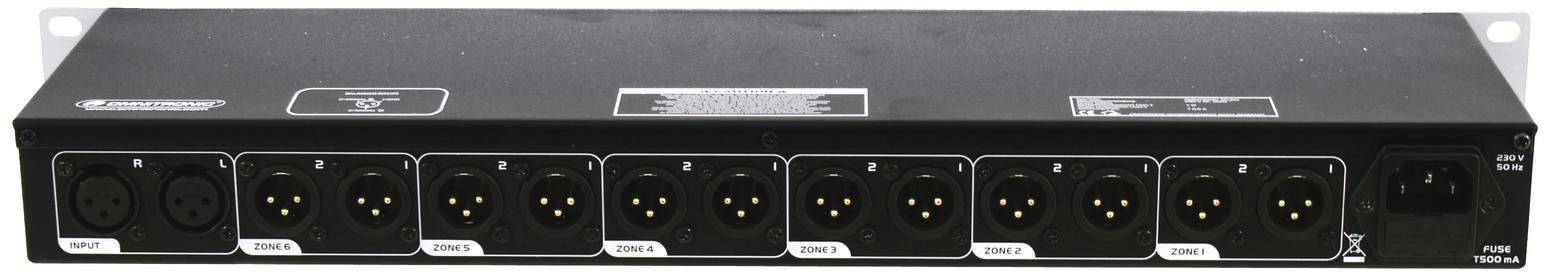

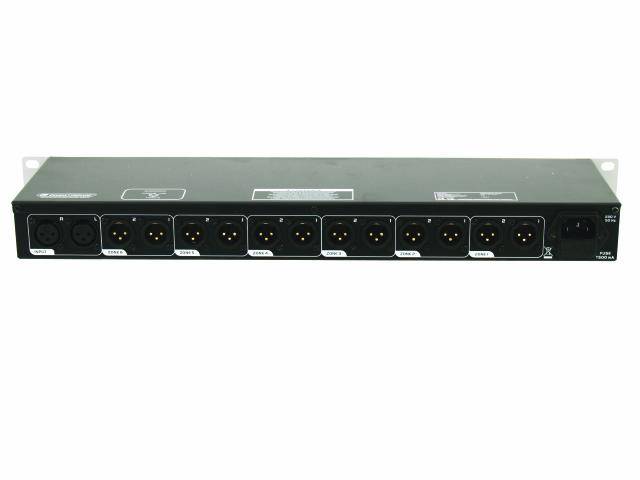

Omnitronic ZD-160 Zone Distributor
- Practical Distributor
Technical specifications
- Power supply: 230 V AC, 50 Hz
- Total connected wattage 7 W
- Input impedance: 45.1 KOhm
- Max. Input level: 9dB
- Output level: 22 dB
- Ausgansimpedanz: 125 Ohm
- Max. Gain: 15 dB
- Noise: 0.2 %
- Noise Ratio: 69 dB
- Dimensions (wxdxh): 482 x 126 x 44 mm
- Weight: 2.3 kg
- Channels
6
- No. of inputs
12 x
- Interfaces
XLR out
XLR in
- Weight
2.8 kg
- No of. XLR outputs
2 x
- Width
530 mm
- Height
90 mm
- Length
265 mm
- Dim
(L x W x H) 265 x 530 x 90 mm
- Product type
19" mixer
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313120 Omnitronic ZD-160 19" mixer No. of channels:6
Description
Practical Distributor · Expands each mixer to additional outputs · 1 Stereo XLR input · 6 stereo-zone outputs via XLR sockets · Each zone with lautstarkergler and mono switch · LED display for signal input and Mono/Stereo mode · Rack installation with 1 U
