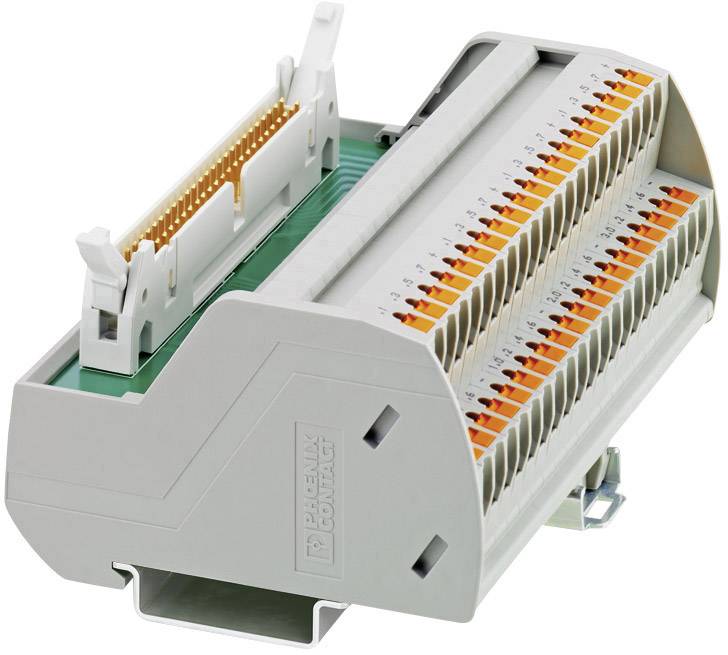

Passive module Varioface-VIP Phoenix Contact 2903803 VIP-2/PT/FLK50/PLC Content: 1 pc(s)
Packaging type
Piece
Product type
Passive module
Total no. of pins
50
Connection
Spring-loaded connector
AWG
26 - 14
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 81.99 / piece)
€ 81.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Passive module
- Total no. of pins
50
- Connection
Spring-loaded connector
26 - 14
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 56 x 107.90 x 72.10 mm
- Connector (field)
Pull spring
- Connector (control)
IDC/FLK strip
- Operating current
2 A
- Weight
0.223 kg
- Content
1 pc(s)
- Number of pins
50
- Width
107.90 mm
- Height
72.10 mm
- Length
56 mm
- Series
Varioface-VIP
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Features
TS 35 socket
DIN rail (top hat rail) 35 mm
107.9
72.1 mm
56 mm
1 A
25 V
50
Spring clamp connection
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1563932 Passive module Varioface-VIP Phoenix Contact 2903803 VIP-2/PT/FLK50/PLC Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1563932 Passive module Varioface-VIP Phoenix Contact 2903803 VIP-2/PT/FLK50/PLC Content: 1 pc(s)
