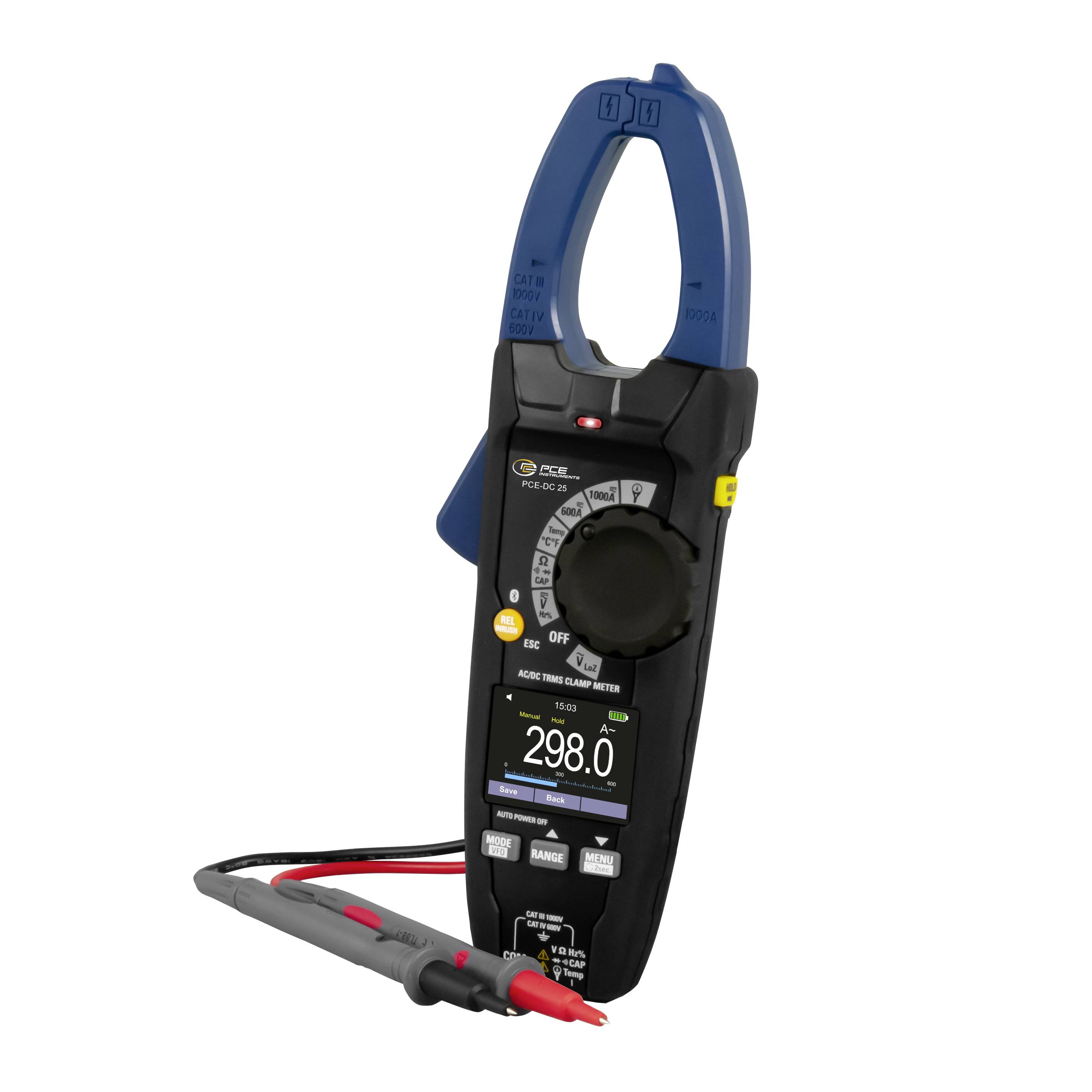

PCE Instruments PCE-DC 25 Clamp meter Digital ISO calibration

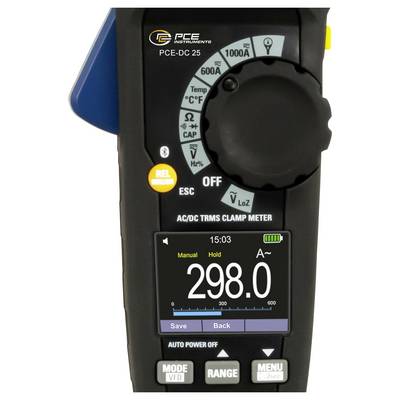

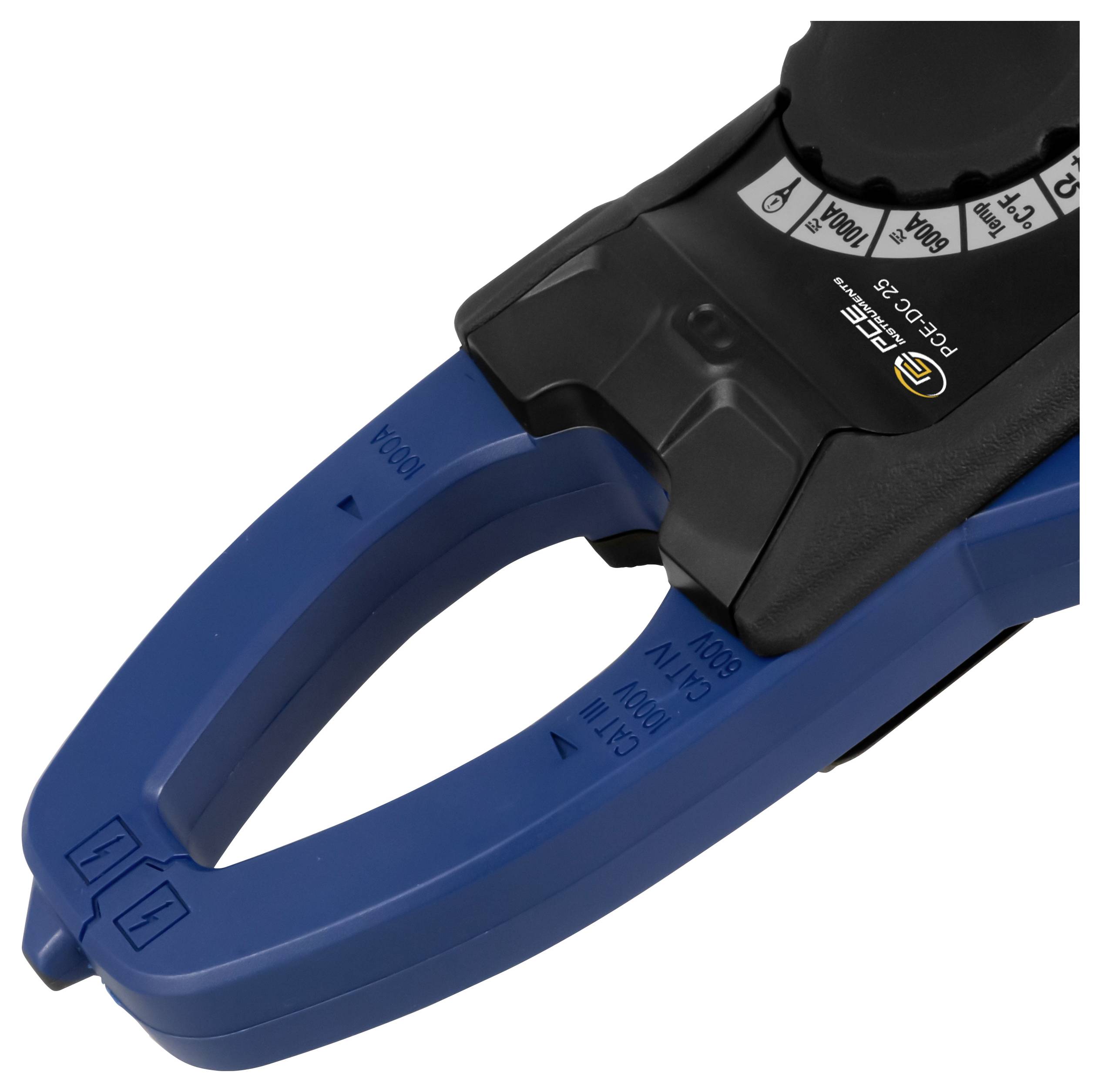

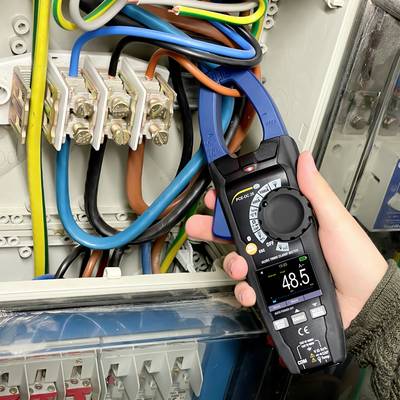

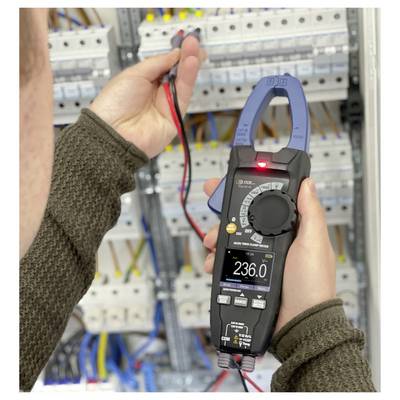

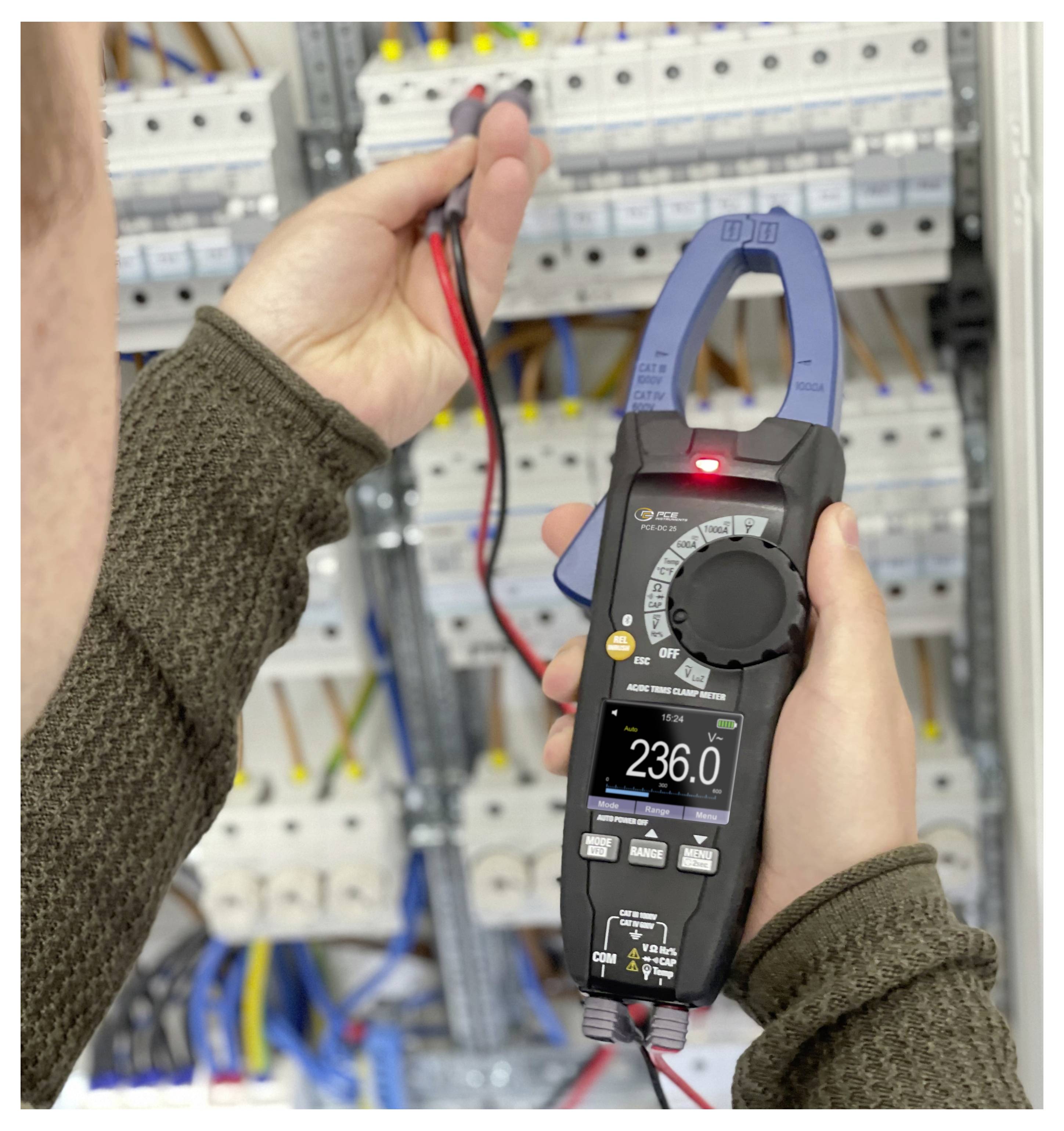

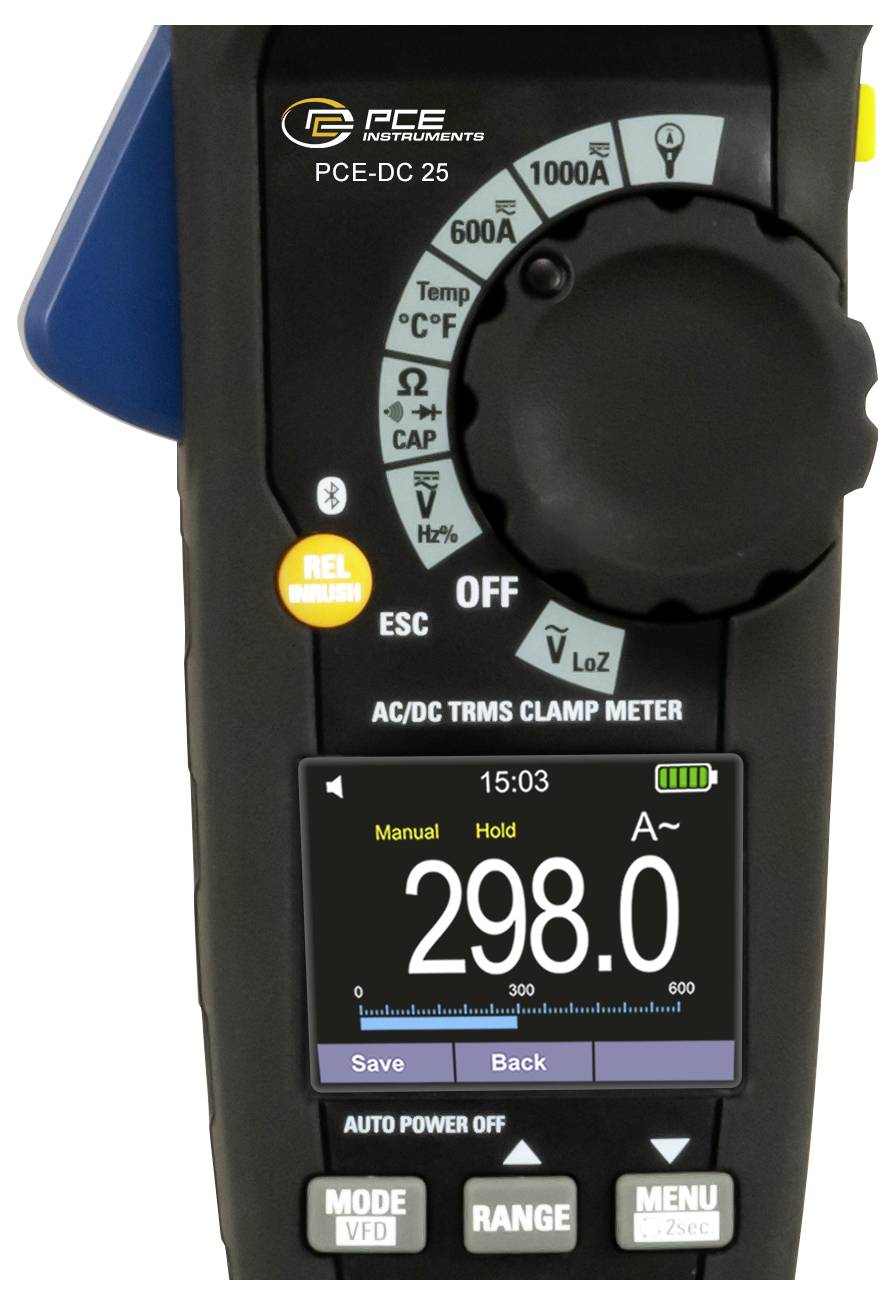

The ammeter has a measurement range of 0 - 1000 A AC/DC. The current is measured inductively via the clamp on the ammeter. Current-carrying supply lines with a diameter of up to 32 mm can be connected to the ammeter. With the optional Rogowski coil, the measuring range of the ammeter can be extended to up to 3000 A AC. When measuring current, the ammeter has sub-functions. Thus, the inrush current can be measured with the ammeter. This is a particularly important function, because motors such as those used in ventilation systems, for example, or hall lighting require a particularly high current at the moment of activation. In addition to current measurement, the ammeter can also measure voltages from 0 - 1000 V AC/DC, resistors, frequencies and capacities. The functions can be set via the rotary selection switch on the ammeter. With the NCV function, voltage-free operation can be determined via the clamp-on ammeter without contact. As soon as a voltage of 150 V AC is applied, this is signaled by an additional red LED. This function is active for each measuring function selected via the rotary selection switch. An LED lamp is integrated in the ammeter for optimum illumination of the measuring point. With the Bluetooth interface, the ammeter can be connected to an Android or iOS device. With the free app for the ammeter the measured values can be displayed, stored and processed further. This means that the ammeter covers a large range of measuring tasks due to the multitude of functions.
