Buy PCE Instruments PCE-ILD 10 Digital thermometer Display (thermometer) 12:1 -50 - +500 °C

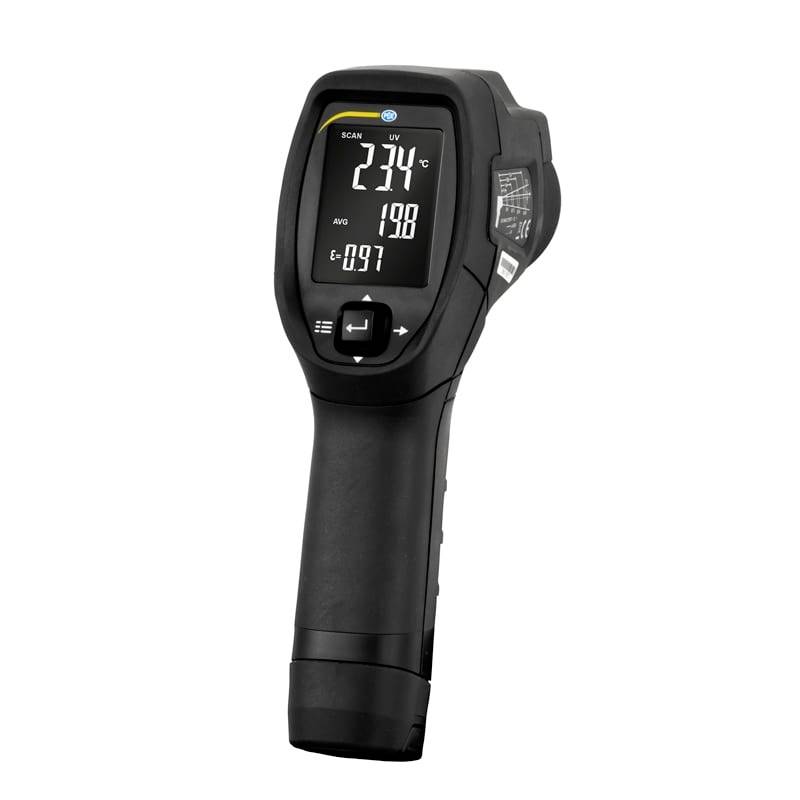

Black handheld infrared thermometer displaying temperature readings on a digital screen.

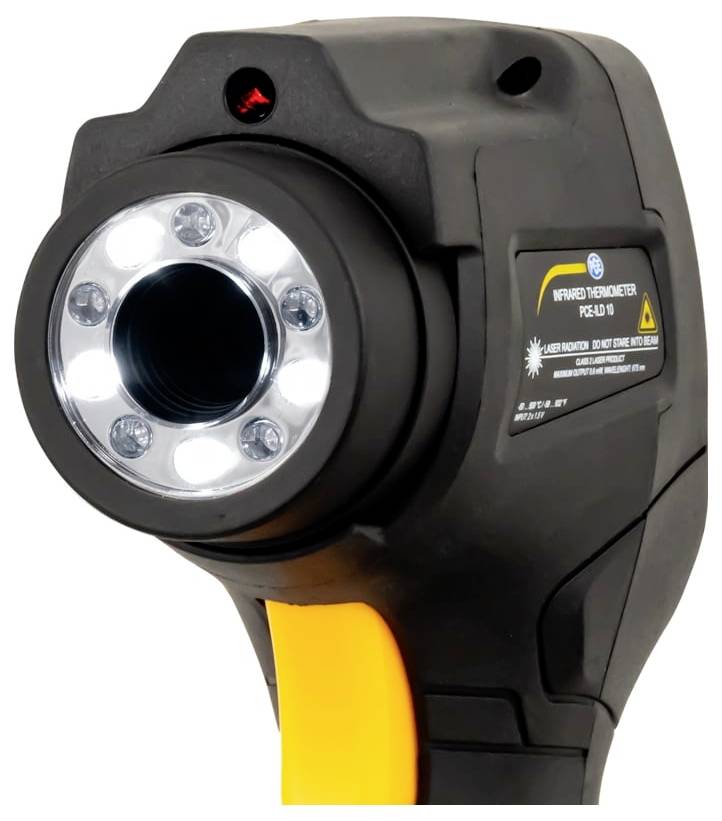

Handheld infrared thermometer gun with circular LED-lit sensor and yellow trigger grip.

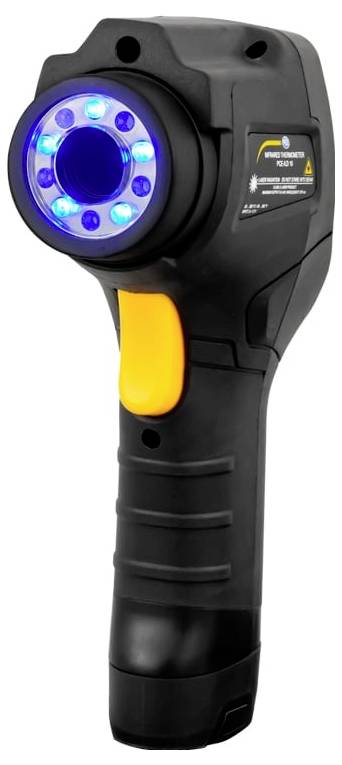

Handheld infrared thermometer with blue illuminated sensor ring and yellow trigger, shown against a white background.

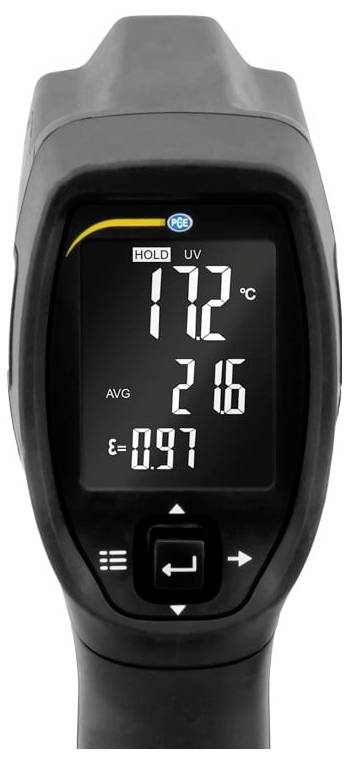

Handheld infrared thermometer showing 17.2°C, average 21.6, and emissivity 0.97 on a digital display with HOLD and UV indicators.

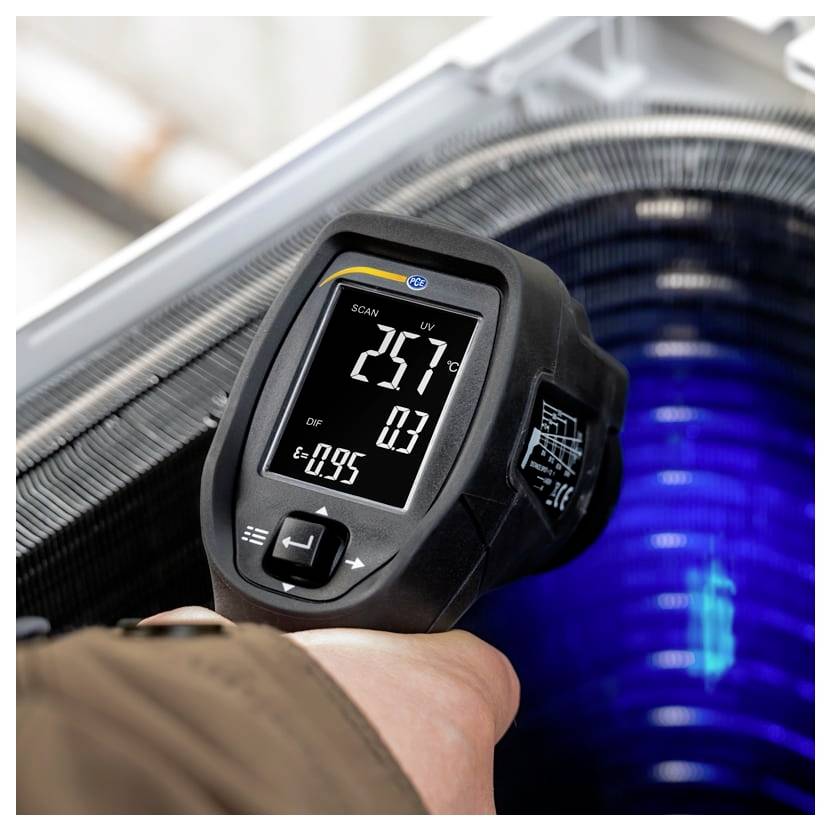

Handheld thermal imaging camera measuring a blue industrial coil, showing on-screen scan readings and temperature values.

1/5

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 130.24 / piece)

€ 130.24

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Digital thermometer PCE-ILD 10

Display (thermometer) 12:1
-50 - +500 °C
Emission level -

Technical specifications

Accuracy: ±3 °C at -50 to 20 °C.±2 °C at 20 to 500 °C.Repeat accuracy ±1 °C / 1.8 °F.Measuring spot ratio: 12:1Emission rate: 0.10 - 1.00Measurement rate 2 HzSpectral range: 8 - 14 µmClass 2 laserLight ring: 5 x white LED, 5 x blue LEDPower supply: 2 x 1.5 V AA batteries

Dim: (L x W x H) 180 x 55 x 100 mm

Height: 100 mm

Length: 180 mm

Width: 55 mm

: Manufacturer's standards (no certificate)

Display: 12:1

Resolution (temperature): 0.1 °C

Power supply (details): 2 x 1.5 V AA batteries

Max. temperature: +500 °C

Min. temperature: -50 °C

Weight: 329 g

Product type: Digital thermometer

Documents & Downloads

Datasheet

Datasheet 2583823 PCE Instruments PCE-ILD 10 Digital thermometer Display (thermometer) 12:1 -50 - +500 °C

User & Safety Instructions

User & Safety Instructions 2583823 PCE Instruments PCE-ILD 10 Digital thermometer Display (thermometer) 12:1 -50 - +500 °C

Description

The digital thermometer has a measurement range from -50 to +500 °C and an adjustable emission value between 0.10 to 1.00. In addition to the current measured value, the largest, smallest, average and differential measured values can be displayed. This allows the digital thermometer to be used for many measuring tasks to determine the surface temperature. The multi-point laser in the digital thermometer is used to align the measuring spot. The measuring spot ratio for the digital thermometer is 12:1. For checking temperatures, any alarm limit values can be stored in the digital thermometer. When an alarm limit is exceeded and fallen below, the digital thermometer automatically triggers an acoustic as well as visual alarm. In addition to the normal temperature measurement, the digital thermometer has two LED rings with 5 LEDs each. The blue LED ring on the digital thermometer is used to find leaks in air conditioning systems, for example, which are equipped with a contrast agent. The surroundings can be illuminated with the white LED ring on the digital thermometer.

This text is machine translated.
