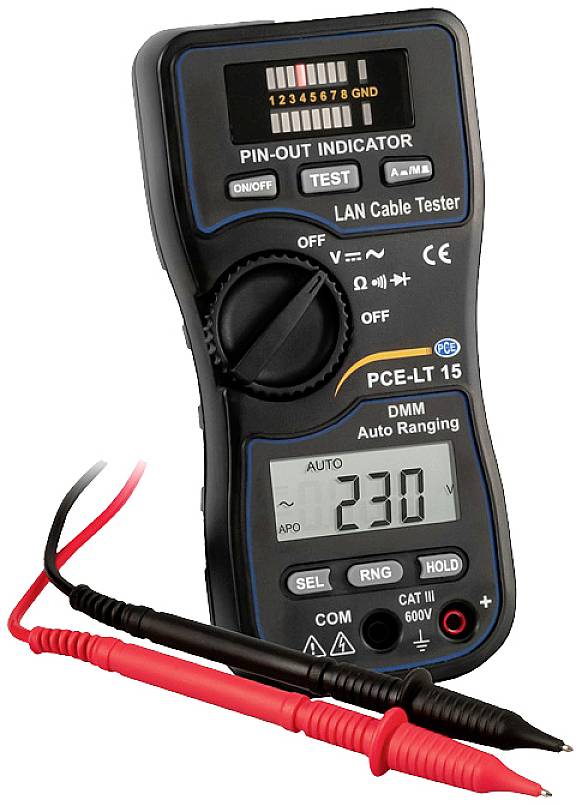

A digital multimeter with display shows '230'. It has various setting options and test connections for measurements.

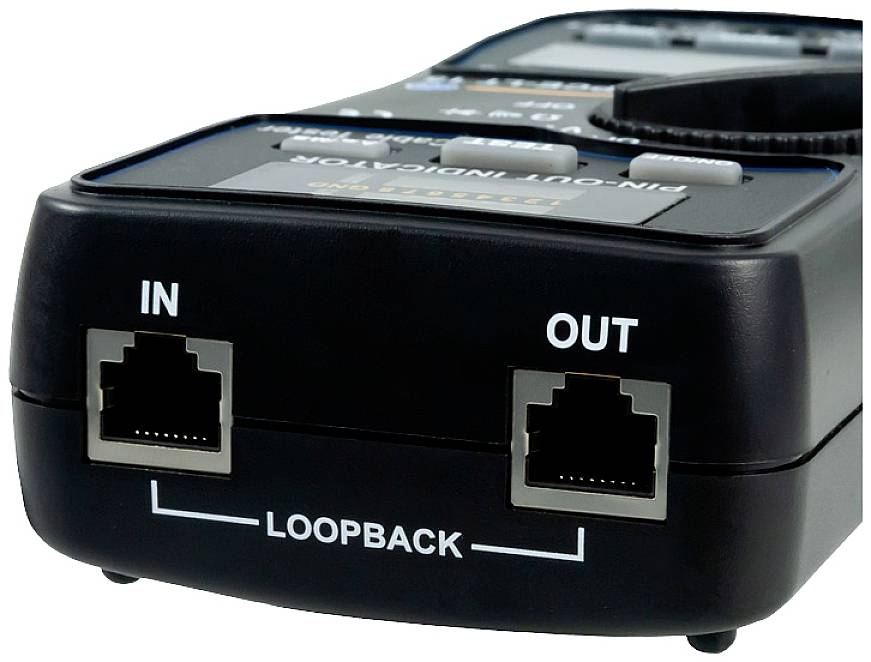

A network tester with two Ethernet ports, labelled 'IN' and 'OUT', with a 'LOOPBACK' marking underneath.

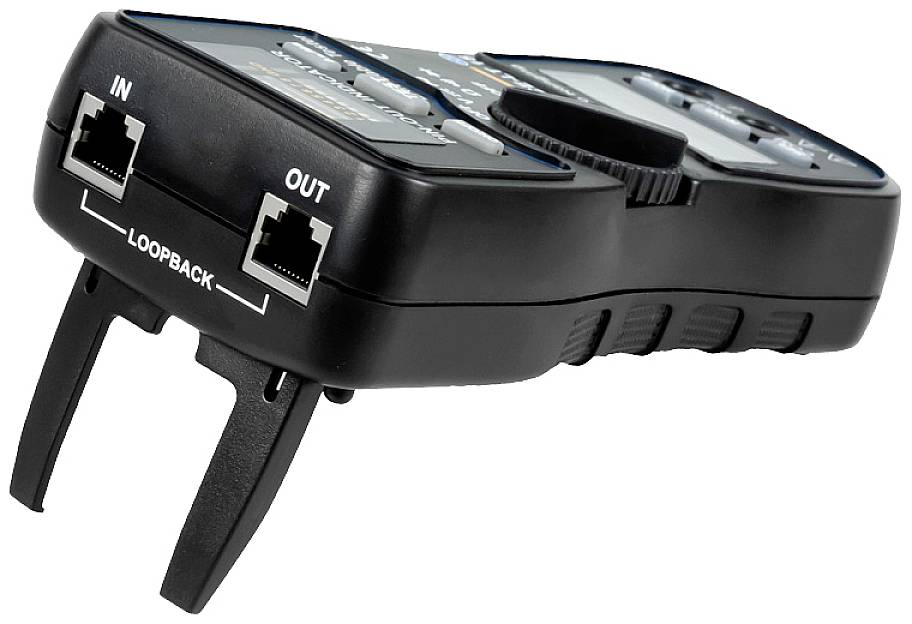

A network cable tester with two ports for 'IN' and 'OUT', which are connected with a 'Loopback', shown from the side.

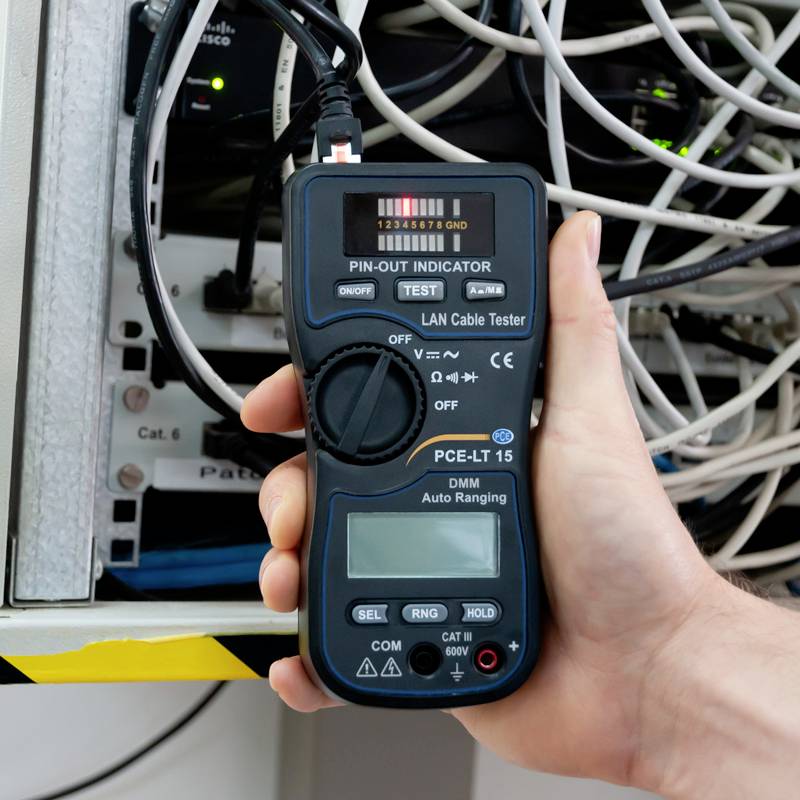

A hand is holding a LAN cable tester device connected to a network at a server rack. The screen displays test results.

1/5

Fast track dispatch on Fri, 11 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 78.98 / piece)

€ 78.98

plus VAT.

Only 6 Piece(s) available

Report legal concerns

Highlights & Details

PCE-LT 15

Combination device of LAN tester and multimeter
LCD
Tests long cables and patch fields
Continuity test and diode test possible
Overweight alert
Short-circuit display

Technical specifications

Measuring function measuring range AC voltage resolution 400 mV 0.1 mV 4 V 1 mV 40 V 10 mV 400 V 100 mV 750 V 1 V. Accuracy ±(1% v.MW. + 5 DGT) Measuring function measuring range DC voltage resolution 400 mV 0.1 mV 4 V 1 mV 40 V 10 mV 400 V 100 mV 1000 V 1 V. Accuracy ±(0.5% v.MW. + 3Dgt) Measuring function measuring range Resistor resolution 400 Ω 0.1 Ω 4 kΩ 1 Ω 40 kΩ 10 Ω 400 kΩ 100 Ω 4 MΩ 1 kΩ Accuracy ±(1.2% v.MW. + 3 DGT) Resistance Resolution 40 MΩ 10 kΩ Accuracy ±(2% v.MW. + 4 DGT) Continuity test 400 Ω Alarm tone measured value < 25Ω LED bar graph display for LAN testers LC display for multimeter functions Voltage supply LAN tester: 1 x 9 V 6F22 battery Multimeter: 2 x 1.5 V AAA battery Dimensions of hand-held device: 165 x 82 x 42 mm Remote unit 75 x 30 x 25 mm Weight of hand-held device 240 g Remote UNIT: 30 g. cat III 600 V electrical safety

Voltage reading range DC (min.): 400 mV

Product type: Handheld multimeter

Voltage DC reading range (max.): 1000 V

Interfaces: RJ45

: Manufacturer's standards (no certificate)

Type: PCE-LT 15

Interfaces: RJ45 plug

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2452504 PCE Instruments PCE-LT 15 Handheld multimeter

Description

LAN tester with multimeter PCE-LT 15 LAN tester for quick testing of network cables / combination devices of LAN tester and multimeter with voltage and resistance measurement of the LAN tester PCE-LT 15 is a combination device which was able to detect configuration errors in the network and can be used simultaneously as a multimeter. Thus, the peripherals of a network can be checked quickly with the LAN tester. With the LAN tester PCE-LT 15 there is the possibility to check 8-pin data lines with RJ-45 plug for continuity, open connections, and short circuits. In addition to the LAN test function, the LAN tester can also measure DC and AC voltages. With the LAN tester, which also serves as a multimeter, you can carry out a continuity test with buzzer and a diode test. The LAN tester is also a device that can identify the most common network installation errors. The two-line LEDs successively indicate the pin assignment of the cable to be tested. In the event of a short circuit, more than two LEDs light up at the same time.
