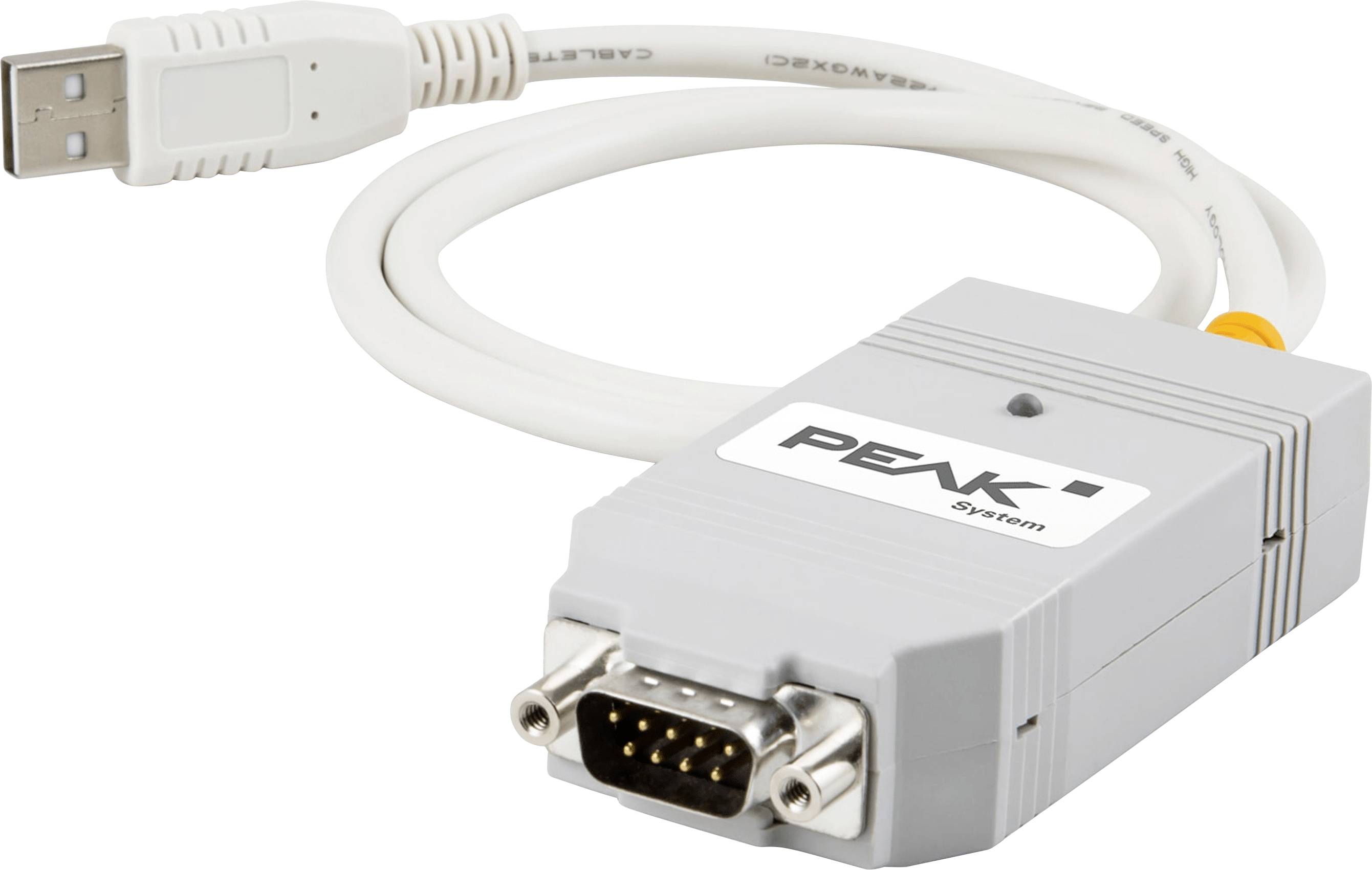

PEAK-System Technik IPEH-004052 PLIN-USB Interface module USB 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 343.70 / piece)
€ 343.70
plus VAT.
Highlights & Details
LIN interface for USB with galvanic isolation and D-sub connection
- USB adapter for connecting a PC to a LIN network (ISO 17987, LIN 2.x)
- Can be operated as LIN Master or LIN slave – Ideal for test, commissioning and diagnostics
- Self-contained scheduler with support for Unconditional, Event and Sporadic frames
- Galvanic isolation
- Including LIN monitor software PLIN-View Pro and PLIN-API for developing your own LIN applications under Windows
Technical specifications
- LIN connector: ISO 17987, compatible with all LIN specifications up to version 2.2
- Bit rates: 1 kbit/s to 20 kbit/s.
- Operating modes: LIN Master or LIN slave, Master task resolution 1 ms
- Bus interface D-Sub 9-pin
- Electrical isolation: 500 V at the LIN interface
- Product type
Interface module
- Interfaces
USB
- Type
PLIN-USB
- Manufacturer part #
IPEH-004052
Documents & Downloads
Datasheet
Datasheet 3593593 PEAK-System Technik IPEH-004052 PLIN-USB Interface module USB 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3593593 PEAK-System Technik IPEH-004052 PLIN-USB Interface module USB 1 pc(s)
Description
The PLIN-USB adapter offers a simple and economical possibility for connecting a computer to a LIN-bus network. The PC connection is made via a USB full-speed port, while the device is connected on the LIN bus side via a D-Sub 9 plug. The galvanic insulation provides a reliable protection of the PC against voltage surges and voltage spikes.
The LIN interface supports the LIN protocol in accordance with ISO 17987 and meets all LIN specifications up to version 2.2. The interface can be operated as Master or slave.
The monitor application PLIN-View Pro as well as the PLIN programming interface for the development of applications with LIN-connection are included in the delivery.
This text is machine translated.
The LIN interface supports the LIN protocol in accordance with ISO 17987 and meets all LIN specifications up to version 2.2. The interface can be operated as Master or slave.
The monitor application PLIN-View Pro as well as the PLIN programming interface for the development of applications with LIN-connection are included in the delivery.
This text is machine translated.
Scope of delivery
- LIN device drivers for Windows and Linux
- LIN Monitor PLIN-View Pro for Windows
- Programming interface PLIN API for developing applications with LIN connection
