PENTATECH 33088 KUE8-400 Wire connector
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Highlights & Details

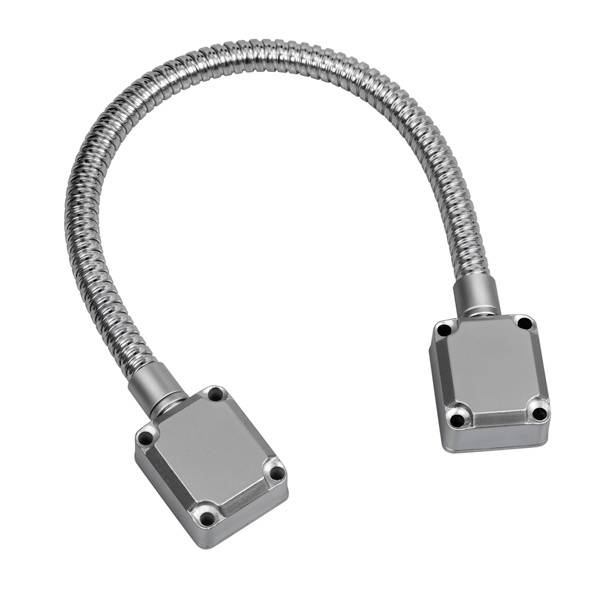

KUE8-400 cable gateway, stainless steel 390 mm for 7.5 mm cable diameter
- Cable junction for windows/doors
- 390 mm stainless steel hose
- For max. 7.5 mm cable diameter
- With end caps for installation on door frames and door leaf
- End cap made of galvanized aluminum die-cast alloy

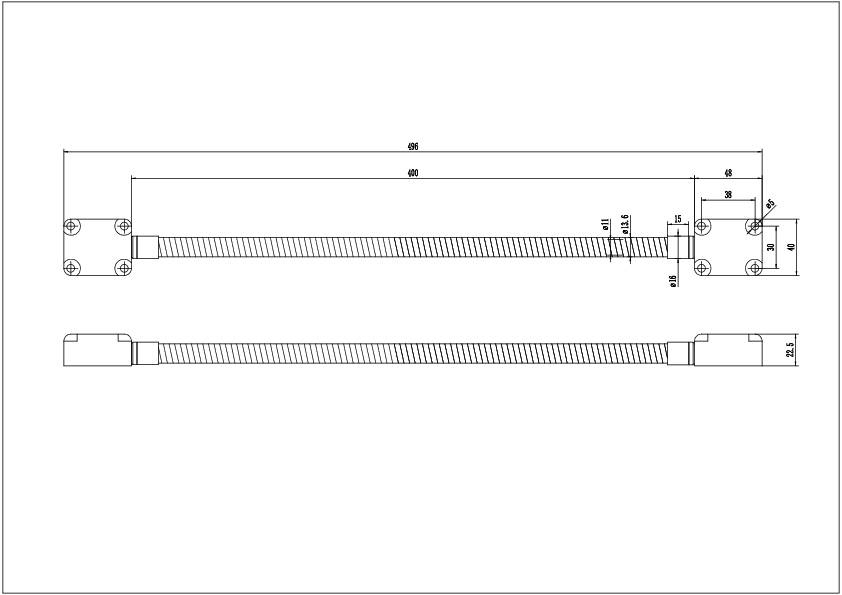

Technical specifications
- Hose length 390 mm
- Outside diameter 13 mm
- Internal dia. 10.5 mm.
- At least Bending radius 60 mm
- End cap made of galvanized die-cast aluminum alloy with dim.: 47 x 40 x 22 mm
- Total length of about 480 mm.
- Product type
Wire connector
Documents & Downloads
Datasheet
Datasheet 2898334 PENTATECH 33088 KUE8-400 Wire connector
User & Safety Instructions
User & Safety Instructions 2898334 PENTATECH 33088 KUE8-400 Wire connector
Description
Cable junction stainless steel, for windows/doors, with end caps for installation on door frame and door leaf.
