PENTATECH 33206 NT04 Panic button
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
Highlights & Details

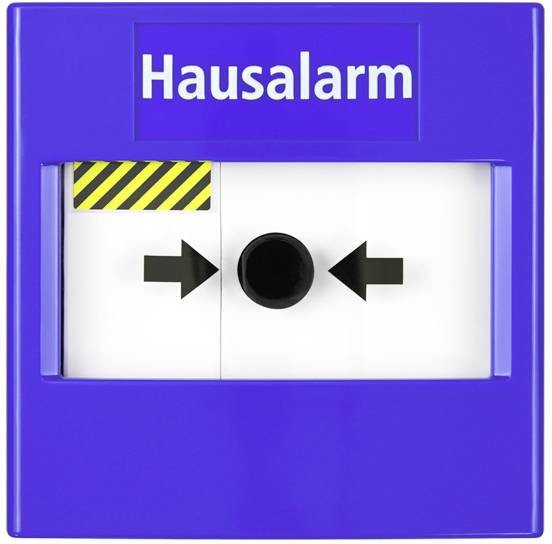

Manual call point blue, inscription "House alarm"
- Glass-free manual call point for the house alarm
- For mounting on the plaster or on a flush-mounted socket
- Reset with supplied key
Technical specifications
- Casing colour: Blue
- Output: No/NC changeover contact, max. 3 A / 250 V AC
- Dim. Surface-mounted 85 x 85 x 58 mm
- Dim. Flush-mounted 85 x 85 x 23 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2267022 PENTATECH 33206 NT04 Panic button
User & Safety Instructions
User & Safety Instructions 2267022 PENTATECH 33206 NT04 Panic button
Description
NT04 manual call point: One-touch alarm
Intuitive and reliable: The glass-free NT04 manual call button is designed for manual house alarm. While other detectors for the house alarm require the use of a glass pane, in emergency situations the button area can be simply pressed on the NT04 – without glass splinters and without having to replace the window later. The detector in a blue housing is clearly marked with the inscription "house alarm". The trigger is displayed via a clearly visible symbol area.
Simple and flexible mounting
The manual call point can be mounted flexibly: On the plaster or on a commercially available flush-mounted socket. A box for surface mounting and an adapter plate for box mounting are already included in the delivery. In addition, the detector comes with a key for the simple reset after an alarm is triggered. The NT04 has a universal connection through changeover contact.
This text is machine translated.
Intuitive and reliable: The glass-free NT04 manual call button is designed for manual house alarm. While other detectors for the house alarm require the use of a glass pane, in emergency situations the button area can be simply pressed on the NT04 – without glass splinters and without having to replace the window later. The detector in a blue housing is clearly marked with the inscription "house alarm". The trigger is displayed via a clearly visible symbol area.
Simple and flexible mounting
The manual call point can be mounted flexibly: On the plaster or on a commercially available flush-mounted socket. A box for surface mounting and an adapter plate for box mounting are already included in the delivery. In addition, the detector comes with a key for the simple reset after an alarm is triggered. The NT04 has a universal connection through changeover contact.
This text is machine translated.
Features
- Manual call point in blue housing with inscription "house alarm"
- for surface mounting or for fixing in a standard flush-mounted socket
- Release is indicated with striped flag on the pressure surface
- Reset with key (1 x included in delivery) Incl. Surface-mounting box and adapter plate for mounting in the flush-mounted socket.
Scope of delivery
- Manual call point
- Adapter plate for mounting on the flush-mounted socket
- Surface-mount box
- 2 x machine screws for mounting on the flush-mounted socket
- 2 x screws/plugs for wall mounting of the surface box
- 1 x key
- User manual.
