PENTATECH 33089 KUE6-400 Wire connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 7.99 / piece)
€ 7.99
incl. VAT
14-day return policy included
Highlights & Details
KUE6-400 stainless steel cable junction 400mm for 6mm cable diameter
- Cable junction for windows/doors
- 400 mm stainless steel hose

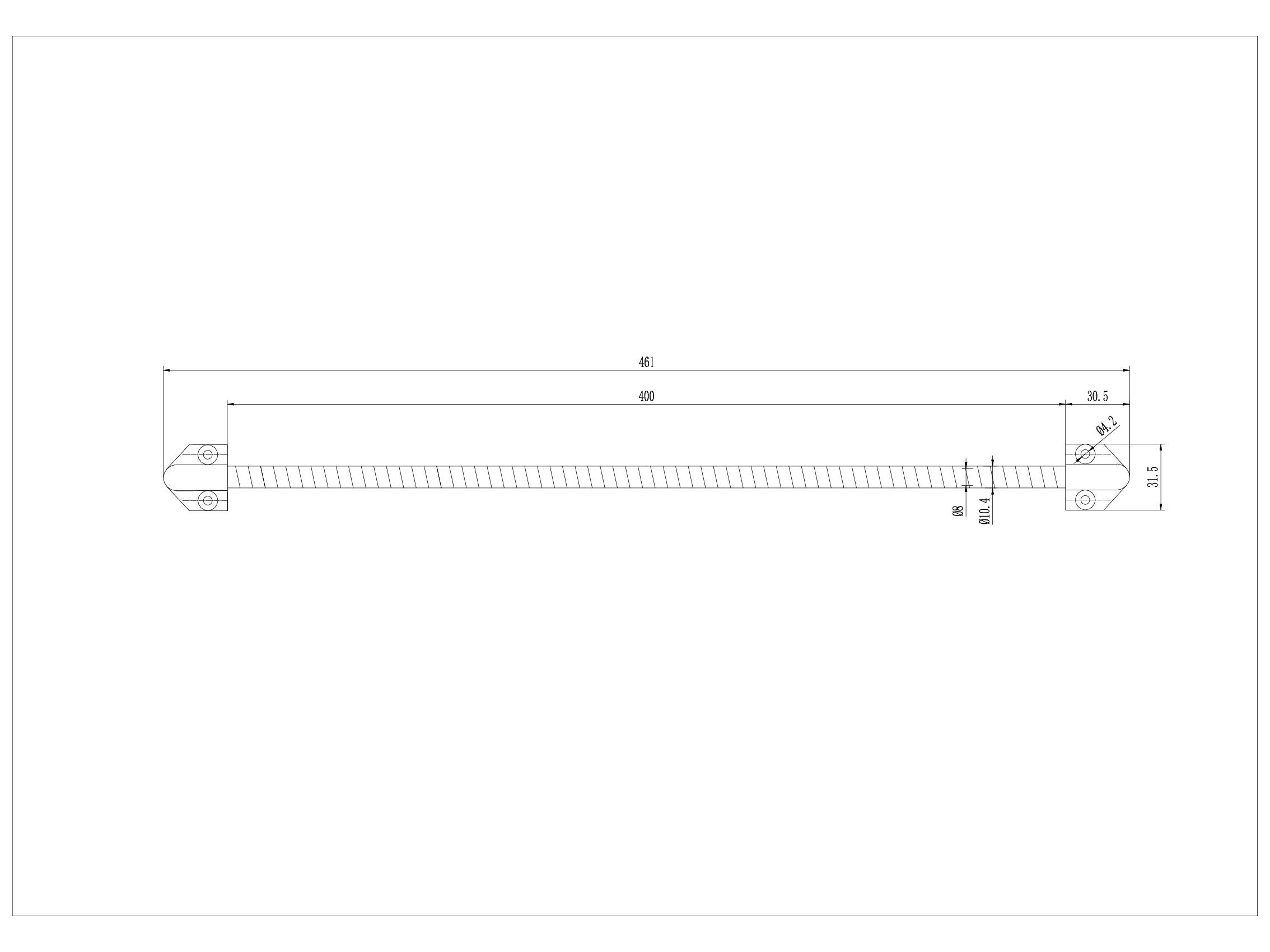

Technical specifications
- Hose length 400 mm
- Internal diameter. 8 mm.
- Outside diameter 10.5 mm
- At least Bending radius 90 mm
- Total length of about 440 mm.
- Product type
Wire connector
Documents & Downloads
Datasheet
Datasheet 2898333 PENTATECH 33089 KUE6-400 Wire connector
User & Safety Instructions
User & Safety Instructions 2898333 PENTATECH 33089 KUE6-400 Wire connector
Description
Wide range of uses
If cables run on a door leaf or door frame and need to be protected, it is advisable to use a cable duct. This model can be used in various applications, for example in aluminum windows and doors or industrial control cabinets.
High-quality and robust
The cable passages consist of a robust high-grade steel tube and high-quality end caps, which can be mounted to a door leaf or door frame.
This text is machine translated.
If cables run on a door leaf or door frame and need to be protected, it is advisable to use a cable duct. This model can be used in various applications, for example in aluminum windows and doors or industrial control cabinets.
High-quality and robust
The cable passages consist of a robust high-grade steel tube and high-quality end caps, which can be mounted to a door leaf or door frame.
This text is machine translated.
Features
- For max. 6 mm cable diameter
- 8mm inner diameter
- External diameter 10.5 mm
- Bending radius min. 90mm
- With end caps for installation on door frames and door leaf
- End cap made of zinc die-cast alloy
- Total length of about 440mm.
Scope of delivery
- 400 mm stainless steel hose
- Two end caps
