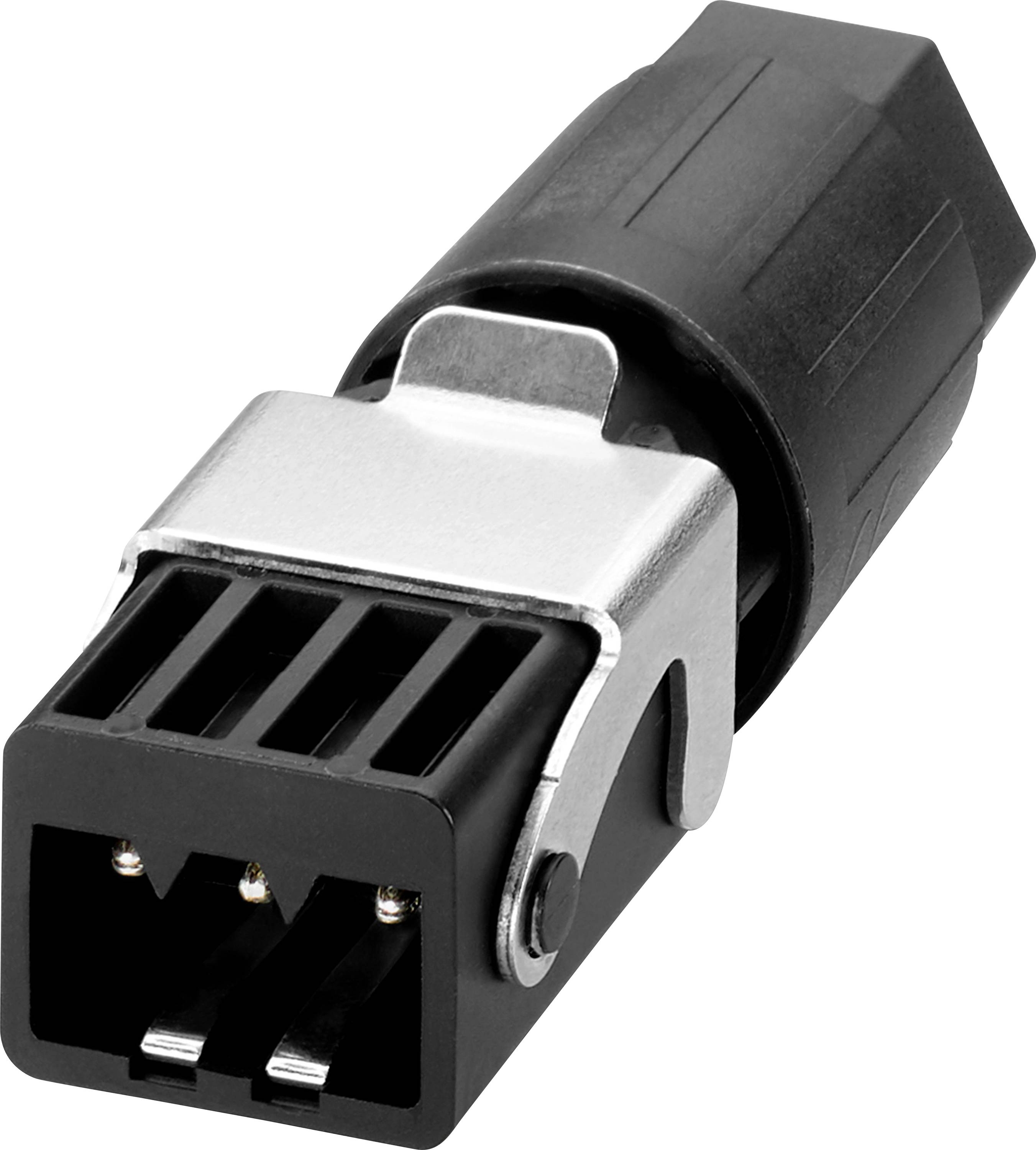

A black, rectangular power plug with a metal insert and three visible connection pins is shown in close-up.

A black, rectangular power plug with a metal insert and three visible connection pins is shown in close-up.

Packaging type

Single

Product type

Connector

Connector type

QUICKON plug

Total no. of pins

4 + PE

Connection

QUICKON connector

IDC

Datasheet (PDF)

Phoenix Contact

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 17.99 / piece)

€ 17.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Wire connection
Connection cross-section flexible 0.5 mm² ... 1.5 mm².
Connection cross-section rigid 0.5 mm² ... 1.5 mm².
Connection cross-section AWG 20 ... 16
Tightening torque nut 8 Nm

Packaging type: Single

Product type: Connector

Connector type: QUICKON plug

Total no. of pins: 4 + PE

Connection: QUICKON connector
IDC

Nominal voltage: 250 V DC
400 V AC

Factory colour: Black

Content: 1 pc(s)

Nominal current: 16 A
10 A

Nominal current - rounded value: NaN A

: 20 ... 16

Manufacturer part #: 1490382

Cable Ø (max.): 13 mm

Cable Ø up to: 7 mm

Cable Ø range: 7 - 13 mm

Number of pins: 4

Width: 27.5 mm

Height: 26 mm

Length: 67 mm

: IP54
IK07

Type: QPD STAS 3PE1,5 BK

Leading contact (PE): Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3306561 Phoenix Contact 1490382 Connector QUICKON plug Total number of pins: 4 + PE 16 A, 10 A Black 1 pc(s) Single

User & Safety Instructions

User & Safety Instructions 3306561 Phoenix Contact 1490382 Connector QUICKON plug Total number of pins: 4 + PE 16 A, 10 A Black 1 pc(s) Single

Description

Easy and quick assembling without special tools
The connectors quickly replace the devices
Secure connection through mechanical coding against incorrect plugging and finger-touch protection according to DIN EN 0105
QUICKON quick connection for up to 80% time saving when connected on the spot

This text is machine translated.

Description

Easy and quick assembling without special tools
The connectors quickly replace the devices
Secure connection through mechanical coding against incorrect plugging and finger-touch protection according to DIN EN 0105
QUICKON quick connection for up to 80% time saving when connected on the spot

This text is machine translated.
