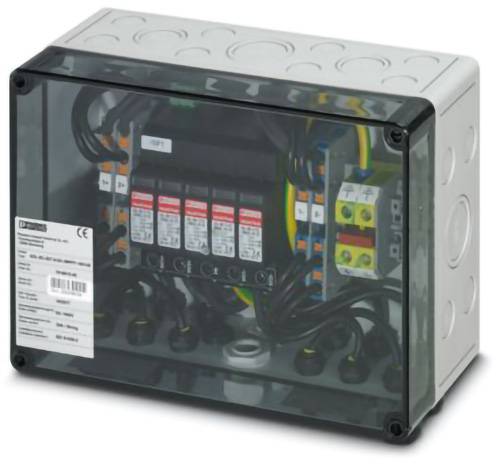

Phoenix generator connection box SOL-SC-2ST-0-DC-2MPPT-1006SE

Quick installation and start-up
Standard-compliant combination of switching devices thanks to application of the DIN EN 61439
Large portfolio of available generator junction boxes
Application-oriented consulting

Technical specifications

MPP VOLTAGE 1000 V DC
Protection system: IP65
Impact strength: IK08
Ambient temperature (operation): -20 °C - +55 °C
Material housing: Polycarbonate
Material cover/door: Polycarbonate (transparent)
Number of inputs (strings): 2 (per MPP tracker)
No. of supported MPP track: 2: 2: 1 (per MPP tracker)
Number of outputs (MPP tracker): 2
Number of outputs (± per MPP tracker): 1 (per MPP tracker)
Type of cable entry: MC4-Evo 2
Cable cross-section range: 2.5 mm² ... 6 mm².

Product type: Generator junction box

Dim: (W x H x D) 254 x 180 x 111 mm

Content: 1 pc(s)

Width: 254 mm

Height: 180 mm

Depth: 111 mm

System voltage: 1000 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3558138 Phoenix Contact 1834566 SOL-SC-2ST-0-DC-2MPPT-1006SE Generator junction box

User & Safety Instructions

User & Safety Instructions 3558138 Phoenix Contact 1834566 SOL-SC-2ST-0-DC-2MPPT-1006SE Generator junction box

Description

The Solarline generator connection boxes (GAKs) are used in small roof-mounted systems as well as in large open-field systems. The main tasks of the GAKs are the overvoltage protection of the PV system, if necessary the collection of strings and the looping through of the protective equipotential bonding conductor to the local equipotential bonding.
Further functions are optional and dependent on the equipment.

Examples of optional functions are the protection of the strings by means of string fuses as well as the activation of the strings via DC switch disconnectors or DC fire switch.
The full functional scope of the GAKs can be derived from its article name (see user note for the type key of the GAKs, which can be downloaded from the "Downloads" area).

This text is machine translated.
