Name: Phoenix Contact 3273146 Distribution block 15.6 mm Pull spring Black 10 pc(s) Piece
Brand: Phoenix Contact
SKU: 1831567
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

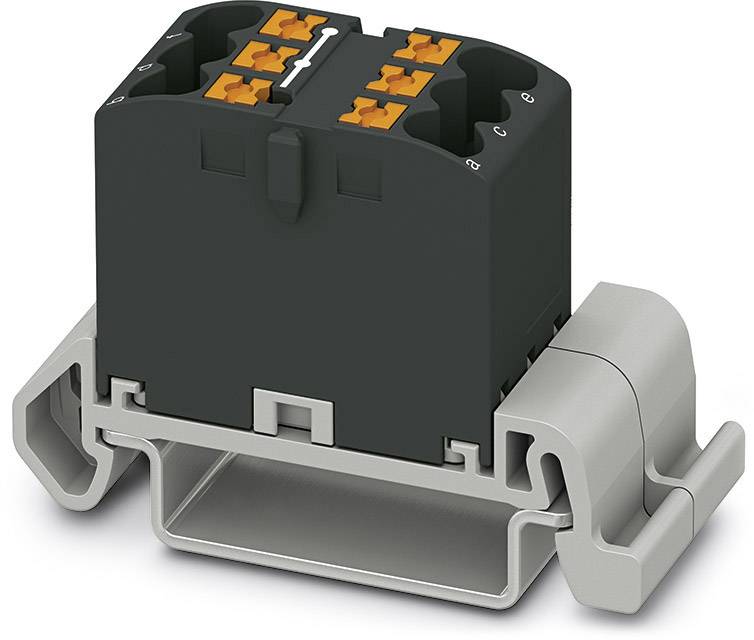

A black electrical connector on a grey mounting clip, suitable for mounting on a DIN rail.

Image similar

Packaging type

Piece

Product type

Distribution block

Connection

Pull spring

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (max.)

2.50 mm²

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

422 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 4.60 / piece)

€ 57.99

-21 %

€ 45.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Distribution block

Features: + push-in spring bracket

Connection: Pull spring

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 2.50 mm²

Clamp width: 15.6 mm

No. of rows: 1

Pins per row: 6

Factory colour: Black

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 500 V

Manufacturer part #: 3273146

Content: 10 pc(s)

Type: PTFIX 6X2,5-NS35A BK

Dim: (L x W x H) 45.7 x 15.6 x 28.7 mm

Width: 15.6 mm

Height: 28.7 mm

Length: 45.7 mm

Flammability rating: V0

Connector colour: Black

UKCA: yes
