Name: Phoenix Contact 3273224 Distribution block 40.6 mm Pull spring Red 8 pc(s) Piece
Brand: Phoenix Contact
SKU: 1831587
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

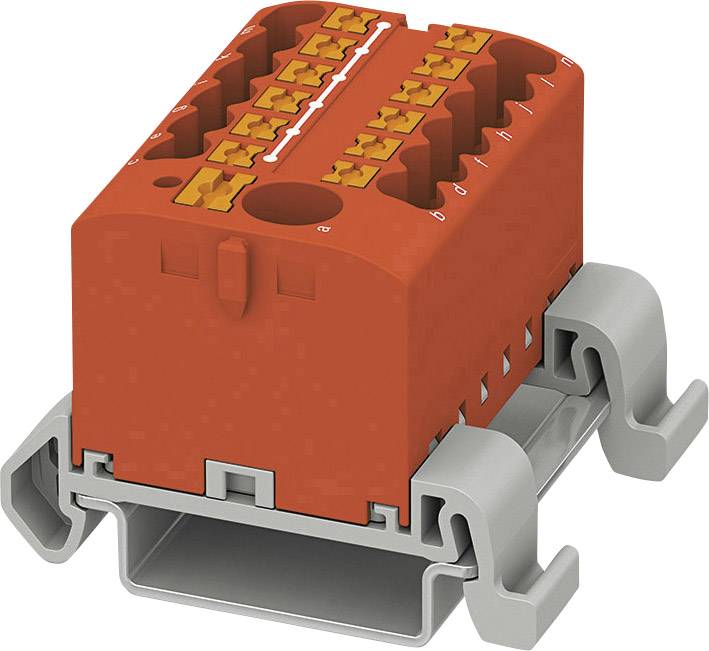

A red electrical connector on a grey mounting bracket, suitable for multiple wire connections in electrical installations.

Image similar

Packaging type

Piece

Product type

Distribution block

Connection

Pull spring

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (max.)

2.50 mm²

Dispatches on Fri 30 Oct

106 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 8 pc(s))

Set(s)

Total (€ 6.75 / piece)

€ 83.99

-36 %

€ 53.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Distribution block

Features: + push-in spring bracket

Connection: Pull spring

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 2.50 mm²

Clamp width: 40.6 mm

No. of rows: 1

Pins per row: 13

Factory colour: Red

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 500 V

Manufacturer part #: 3273224

Content: 8 pc(s)

Type: PTFIX 6/12X2,5-NS35A RD

Dim: (L x W x H) 45.7 x 40.6 x 28.7 mm

Width: 40.6 mm

Height: 28.7 mm

Length: 45.7 mm

Flammability rating: V0

Connector colour: Red

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Connection

Factory colour

Content

Cross section (inflexible) (max.)

Cross section (flexible) (max.)

Cross section (inflexible) (min.)

Cross section (flexible) (min.)

Phoenix Contact 1046608 Distribution block Pull spring Grey 30 pc(s) Piece

Item no:2435772

Fast track dispatch on Tue 27 Oct

6 Set(s)Conrad Electronic

17.5 A

Pull spring

Grey

30 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

Phoenix Contact 1028361 Distribution block Pull spring Blue 50 pc(s) Piece

Item no:2435793

Unavailable

Conrad Electronic

32 A

Pull spring

Blue

50 pc(s)

6 mm²

0.2 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1045925 Distribution block Pull spring Blue 50 pc(s) Piece

Item no:2435773

Unavailable

Conrad Electronic

17.5 A

Pull spring

Blue

50 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046610 Distribution block Pull spring Blue 30 pc(s) Piece

Item no:2435774

Unavailable

Conrad Electronic

17.5 A

Pull spring

Blue

30 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046611 Distribution block Pull spring Red 30 pc(s)

Item no:2435775

Unavailable

Conrad Electronic

17.5 A

Pull spring

Red

30 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046949 Distribution block Pull spring Grey 20 pc(s) Piece

Item no:2435777

Unavailable

Conrad Electronic

17.5 A

Pull spring

Grey

20 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046950 Distribution block Pull spring Blue 20 pc(s) Piece

Item no:2435778

Unavailable

Conrad Electronic

17.5 A

Pull spring

Blue

20 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046951 Distribution block Pull spring Red 20 pc(s) Piece

Item no:2435779

Unavailable

Conrad Electronic

17.5 A

Pull spring

Red

20 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046963 Distribution block Pull spring Red 20 pc(s) Piece

Item no:2435782

Unavailable

Conrad Electronic

17.5 A

Pull spring

Red

20 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046973 Distribution block Pull spring Grey 20 pc(s) Piece

Item no:2435785

Unavailable

Conrad Electronic

17.5 A

Pull spring

Grey

20 pc(s)

6 mm²

0.2 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1831587 Phoenix Contact 3273224 Distribution block 40.6 mm Pull spring Red 8 pc(s) Piece

Description

Up to 80% time advantage through assembly-finished blocks without manual bridging. Time-saving conductor connection by tool-free push-in direct plug-in technique. Unique wiring by eleven different color variants. Flexible use through rail mounting, direct mounting or sticking. Up to 50% space savings on the rail through cross-mounting.

This text is machine translated.
