Name: Phoenix Contact 3273382 Distribution block 56 mm Pull spring Green 8 pc(s)
Brand: Phoenix Contact
SKU: 1831641
Availability: InStock

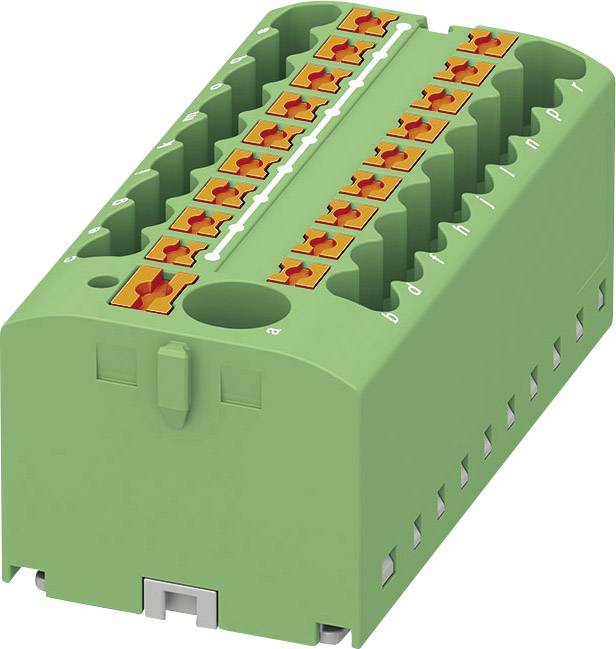

Green electrical connector block with orange terminals, suitable for industrial applications and wiring.

Image similar

Product type

Distribution block

Connection

Pull spring

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (max.)

2.50 mm²

Nominal current - rounded value

24 A

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

36 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 8 pc(s))

Set(s)

Total (€ 10.50 / piece)

€ 98.99

-15 %

€ 83.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Distributor block 3273382

PTFIX 6/18X2,5 GN

Technical specifications

Product type: Distribution block

Features: + push-in spring bracket

Connection: Pull spring

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 2.50 mm²

Clamp width: 56 mm

No. of rows: 1

Pins per row: 19

Factory colour: Green

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 500 V

Manufacturer part #: 3273382

Content: 8 pc(s)

Type: PTFIX 6/18X2,5 GN

Dim: (L x W x H) 28.2 x 56 x 21.2 mm

Width: 56 mm

Height: 21.2 mm

Length: 28.2 mm

Flammability rating: V0

Connector colour: Green

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

Content

Cross section (flexible) (max.)

Cross section (flexible) (min.)

Cross section (inflexible) (max.)

Cross section (inflexible) (min.)

Factory colour

Nominal current - rounded value

Phoenix Contact 1046608 Distribution block Pull spring Grey 30 pc(s) Piece

Item no:2435772

Fast track dispatch on Thu 29 Oct

4 Set(s)Conrad Electronic

Pull spring

30 pc(s)

1.5 mm²

0.14 mm²

2.5 mm²

0.14 mm²

Grey

17.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

Phoenix Contact 1028361 Distribution block Pull spring Blue 50 pc(s) Piece

Item no:2435793

Unavailable

Conrad Electronic

Pull spring

50 pc(s)

6 mm²

0.2 mm²

6 mm²

0.2 mm²

Blue

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1045925 Distribution block Pull spring Blue 50 pc(s) Piece

Item no:2435773

Unavailable

Conrad Electronic

Pull spring

50 pc(s)

1.5 mm²

0.14 mm²

2.5 mm²

0.14 mm²

Blue

17.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046610 Distribution block Pull spring Blue 30 pc(s) Piece

Item no:2435774

Unavailable

Conrad Electronic

Pull spring

30 pc(s)

1.5 mm²

0.14 mm²

2.5 mm²

0.14 mm²

Blue

17.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046611 Distribution block Pull spring Red 30 pc(s)

Item no:2435775

Unavailable

Conrad Electronic

Pull spring

30 pc(s)

1.5 mm²

0.14 mm²

2.5 mm²

0.14 mm²

Red

17.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046949 Distribution block Pull spring Grey 20 pc(s) Piece

Item no:2435777

Unavailable

Conrad Electronic

Pull spring

20 pc(s)

1.5 mm²

0.14 mm²

2.5 mm²

0.14 mm²

Grey

17.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046950 Distribution block Pull spring Blue 20 pc(s) Piece

Item no:2435778

Unavailable

Conrad Electronic

Pull spring

20 pc(s)

1.5 mm²

0.14 mm²

2.5 mm²

0.14 mm²

Blue

17.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046951 Distribution block Pull spring Red 20 pc(s) Piece

Item no:2435779

Unavailable

Conrad Electronic

Pull spring

20 pc(s)

1.5 mm²

0.14 mm²

2.5 mm²

0.14 mm²

Red

17.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046963 Distribution block Pull spring Red 20 pc(s) Piece

Item no:2435782

Unavailable

Conrad Electronic

Pull spring

20 pc(s)

1.5 mm²

0.14 mm²

2.5 mm²

0.14 mm²

Red

17.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046973 Distribution block Pull spring Grey 20 pc(s) Piece

Item no:2435785

Unavailable

Conrad Electronic

Pull spring

20 pc(s)

6 mm²

0.2 mm²

6 mm²

0.2 mm²

Grey

17.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1831641 Phoenix Contact 3273382 Distribution block 56 mm Pull spring Green 8 pc(s)

Description

Up to 80% time advantage through assembly-finished blocks without manual bridging. Time-saving conductor connection by tool-free push-in direct plug-in technique. Unique wiring by eleven different color variants. Flexible use through rail mounting, direct mounting or sticking. Up to 50% space savings on the rail through cross-mounting.

This text is machine translated.
