Name: Phoenix Contact Pin housing PCB MSTBV Total number of pins 6 Contact spacing: 5 mm 1753518 1 pc(s)
Brand: Phoenix Contact
SKU: 743868
Price: 1.79 EUR
Availability: InStock

Green electrical connector with multiple metal pins, suitable for mounting on printed circuit boards.

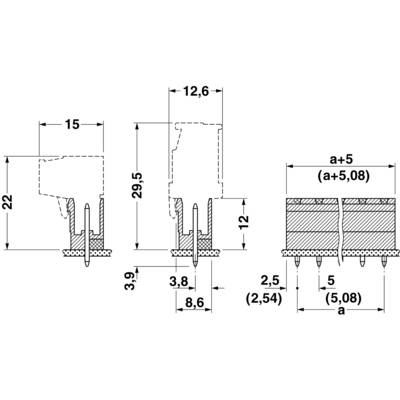

Technical drawing of a connector with dimensions: Height 29.5 mm, Width 12.6 mm, Pin spacing 2.54 mm, Pin length 3.9 mm.

1/2

Image similar

Product type

Pin housing PCB

Connector type

Pin strip, straight

No. of rows

Series

MSTBV

5 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

83 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.79 / piece)

€ 1.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Single storeyed basic case for für wave soldering processes

Content: 1 pc(s)
No. of rows: 1
Total number of pins: 6

Technical specifications

Pin dimensions: 1 x 1 mm
Insulation material group: IIIa
Insulation material type: PBT.

Product type: Pin housing PCB

Connector type: Pin strip, straight

No. of rows: 1

Connector system: wire-to-board

Series: MSTBV

Features: lateral opening

CS: 5 mm

Pins per row: 6

Total number of pins: 6

Width: 30.00 mm

Pin Ø: 1.4 mm

Pin shape: Rectangular

Nominal current: 12 A

Nominal current - rounded value: 12 A

Content: 1 pc(s)

Dim: (L x W x H) 8.60 x 30.00 x 15.90 mm

Connection: Print

Actuation direction: Perpendicular (to the PCB)

Case material: Polyamide

Manufacturer part #: 1753518

Factory colour: Green

Industrial packaging: Yes

Contact material: Cathode copper

Board contact surface: Tin plated

Connector contact surface: Tin plated

Nominal voltage: 320 V

Height: 15.90 mm

Length: 8.60 mm

Connector orientation: Perpendicular (to the PCB)

Type: MSTBV 2,5/ 6-G

Type: Combicon basic housing

Min. stripping length: 5.00 mm

Nominal current (details): 12 A

Contamination level: 3

Documents & Downloads

Datasheet

Datasheet 743868 Phoenix Contact Pin housing PCB MSTBV Total number of pins 6 Contact spacing: 5 mm 1753518 1 pc(s)

User & Safety Instructions

User & Safety Instructions 743868 Phoenix Contact Pin housing PCB MSTBV Total number of pins 6 Contact spacing: 5 mm 1753518 1 pc(s)

Description

CLASSIC COMBICON One-story base housing for wave soldering:
Low construction height of MC 1.5 plug-family,Generous wiring space, multi-pin connectors with low height and compact grids, separate pole coding by removing the keying nose and inserting the keying profile at the casing. Without side walls Plug-in direction vertical to the conductor axis
