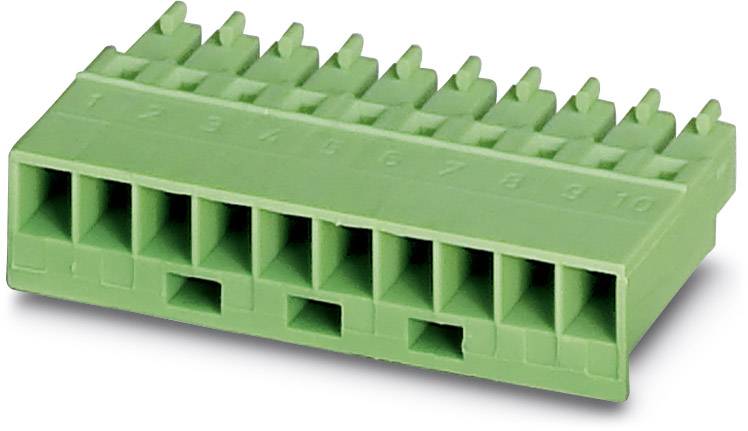

Image similar
Phoenix Contact Socket housing cable MCC Total number of pins 3 Contact spacing: 3.81 mm 1852189 50 pc(s)
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
MCC
CS
3.81 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 0.78 / piece)
€ 38.99
incl. VAT
14-day return policy included
Highlights & Details
Printed-circuit board connector MCC 1/ 3-STZ-3,81
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 3
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
MCC
- CS
3.81 mm
- Pins per row
3
- Total number of pins
3
- Width
23.10 mm
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Content
50 pc(s)
- AWG max.
18
- AWG (min.)
24
- Dim
(L x W x H) 8.70 x 23.10 x 12.22 mm
- Connection
Crimp
- Manufacturer part #
1852189
- Factory colour
Green
- Industrial packaging
Yes
- Connector contact surface
Tin plated
- Nominal voltage
160 V
- Height
12.22 mm
- Length
8.70 mm
- Type
MCC 1/ 3-STZ-3,81
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 567360 Phoenix Contact Socket housing cable MCC Total number of pins 3 Contact spacing: 3.81 mm 1852189 50 pc(s)
User & Safety Instructions
User & Safety Instructions 567360 Phoenix Contact Socket housing cable MCC Total number of pins 3 Contact spacing: 3.81 mm 1852189 50 pc(s)
Description
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 3, Pitch: 3.81 mm, Connection method: Crimp connection, Color: green, Corresponding female crimp contacts with current [A] and conductor cross section range [mm²] data: 5A/MCC-MT 0,2-0,35 (1859988); 8A/MCC-MT 0,5-1,0 (1859991)
