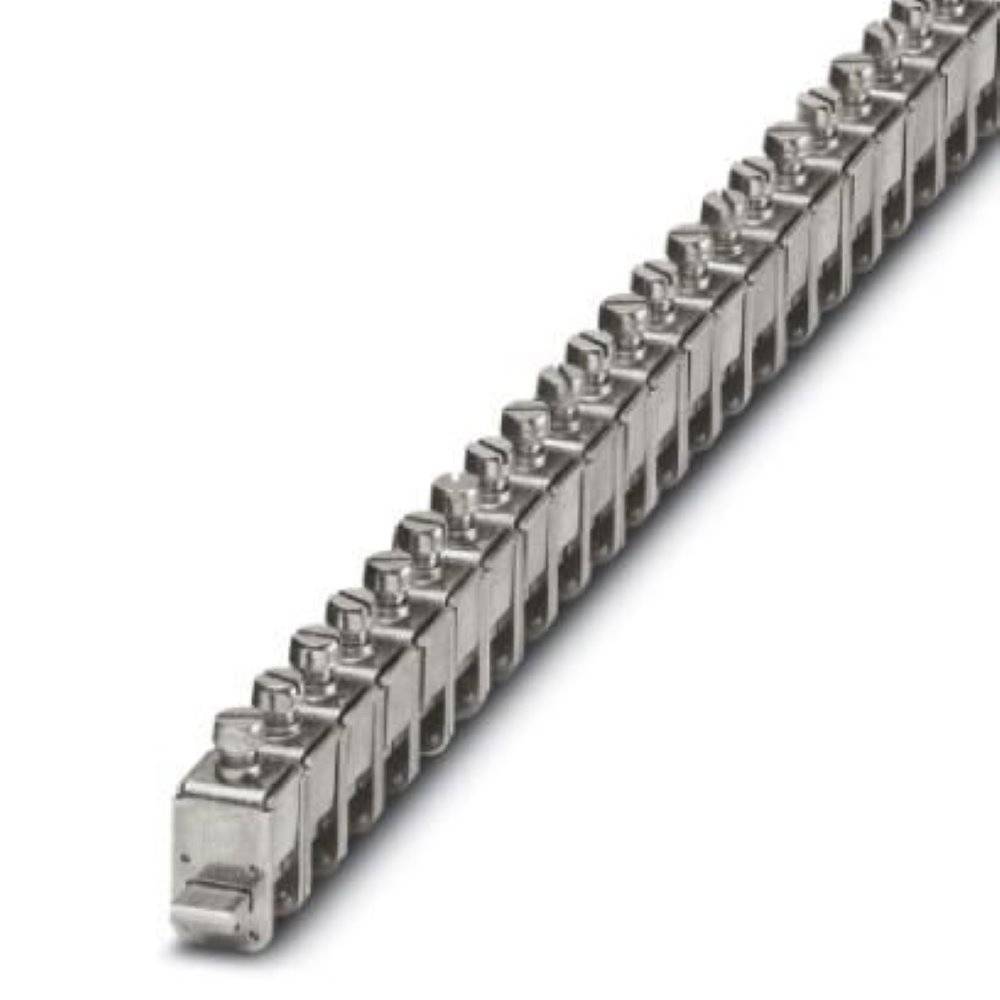

Image similar

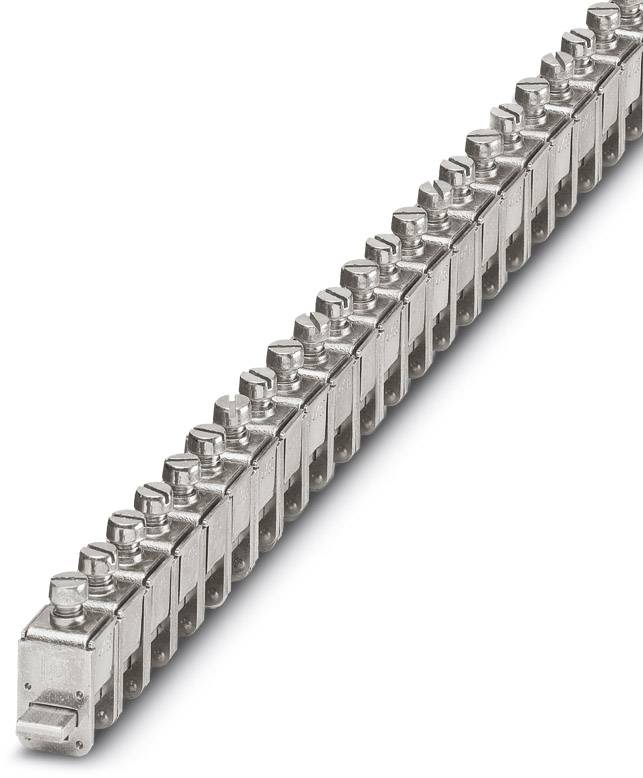

Image similar
Pick-off terminal block AK 35 0404046 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Screws
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
125 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.45 / piece)
€ 72.26
plus VAT.
14-day return policy included
Highlights & Details
Pick-off terminal block AK 35
- AK 35
Technical specifications
- Product type
Terminal
- Connection
Screws
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
14
- AWG max.
2
- Clamp width
14.3 mm
- Factory colour
Silver
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Stripping length (max.)
16 mm
- Manufacturer part #
0404046
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
AK 35
- Dim
(L x W) 26 mm x 14.3 mm
- Width
14.3 mm
- Length
26 mm
- Flammability rating
V2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 583477 Pick-off terminal block AK 35 0404046 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 583477 Pick-off terminal block AK 35 0404046 Phoenix Contact
Description
Pick-off terminal block, Connection method Screw connection, Load current : 125 A, Cross section: 2.5 mm² - 35 mm², Width: 14.3 mm, Color: silver
