Name: Pracht 9613112 9613112 LED hall light LED (monochrome) 153 W White
Brand: Pracht
SKU: 3163466
Availability: SoldOut

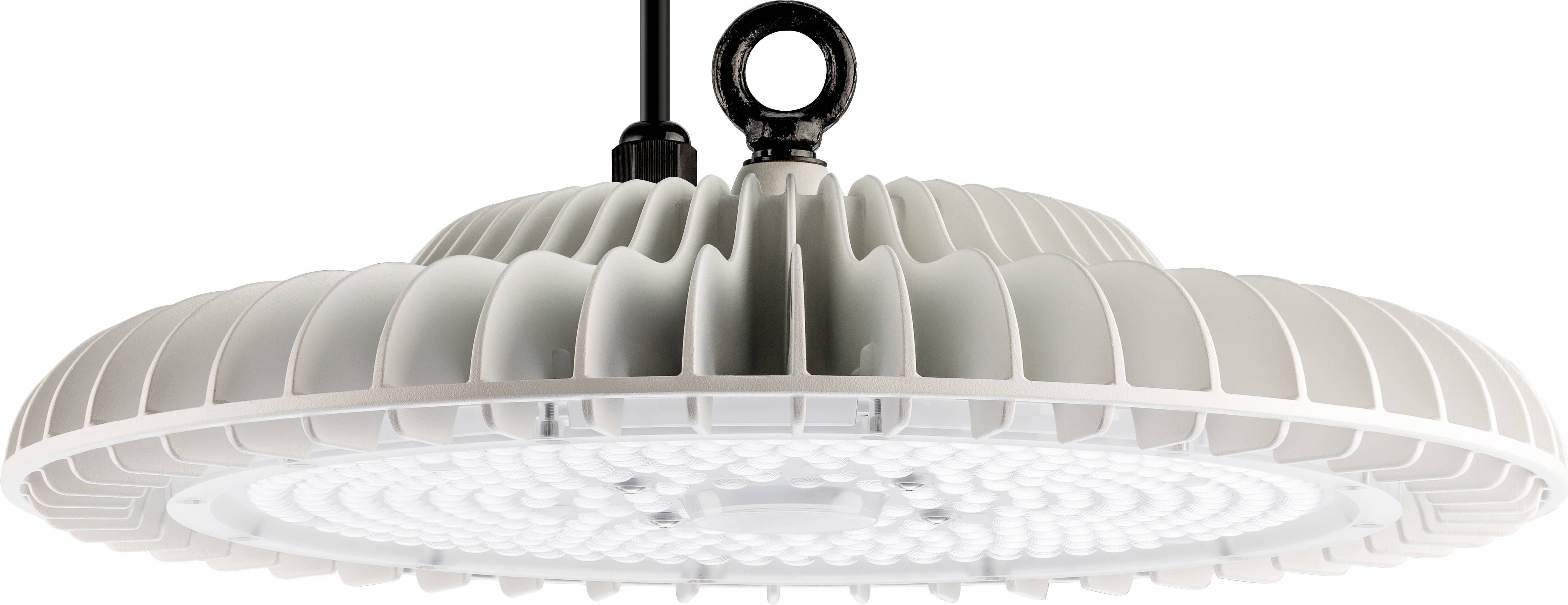

Industrial light with a ring-shaped housing and fin-like structure on the top surface. Suspension device with an eyelet visible.

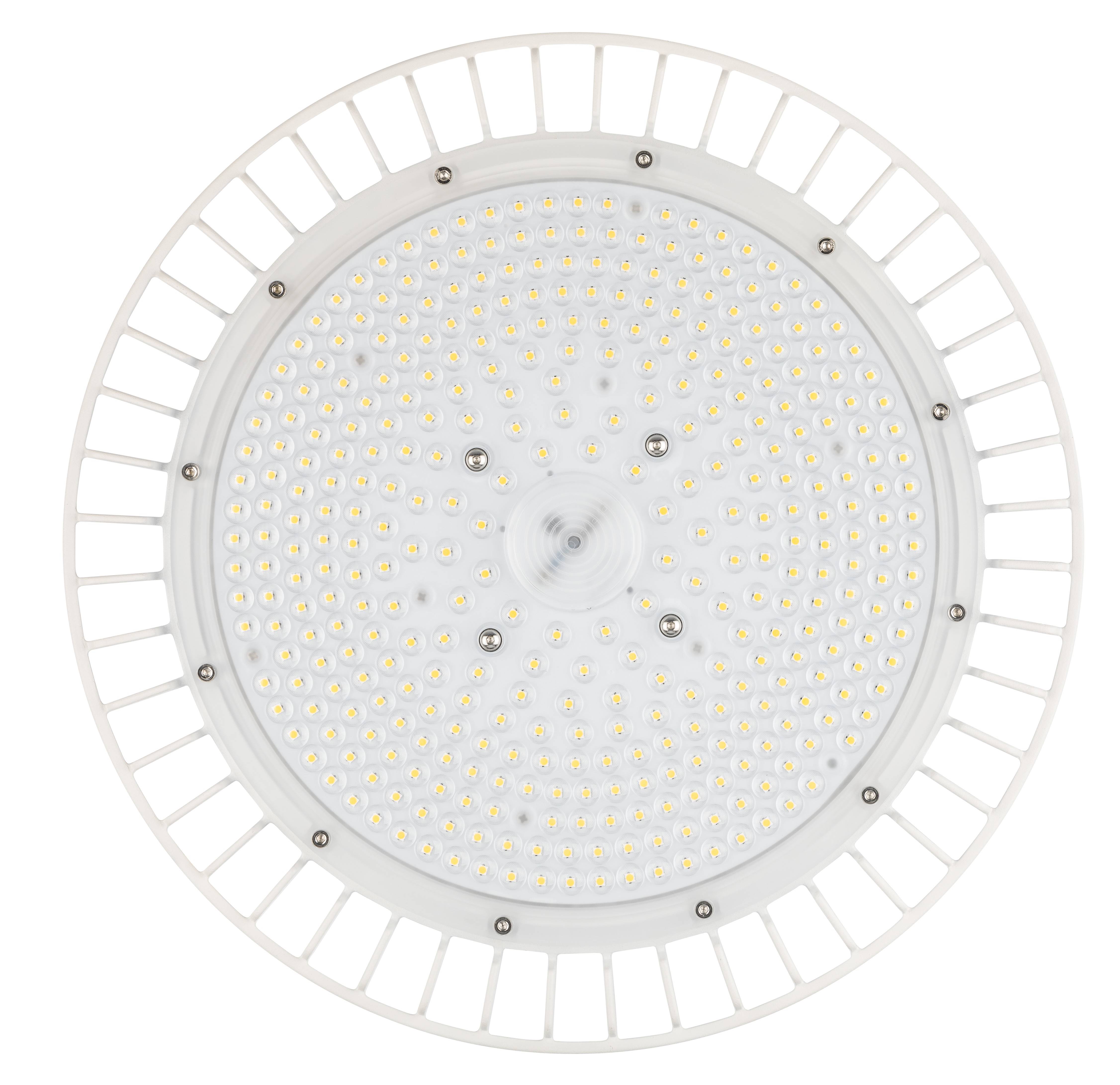

Industrial LED lamp with circular design and numerous small LED lights on a white background.

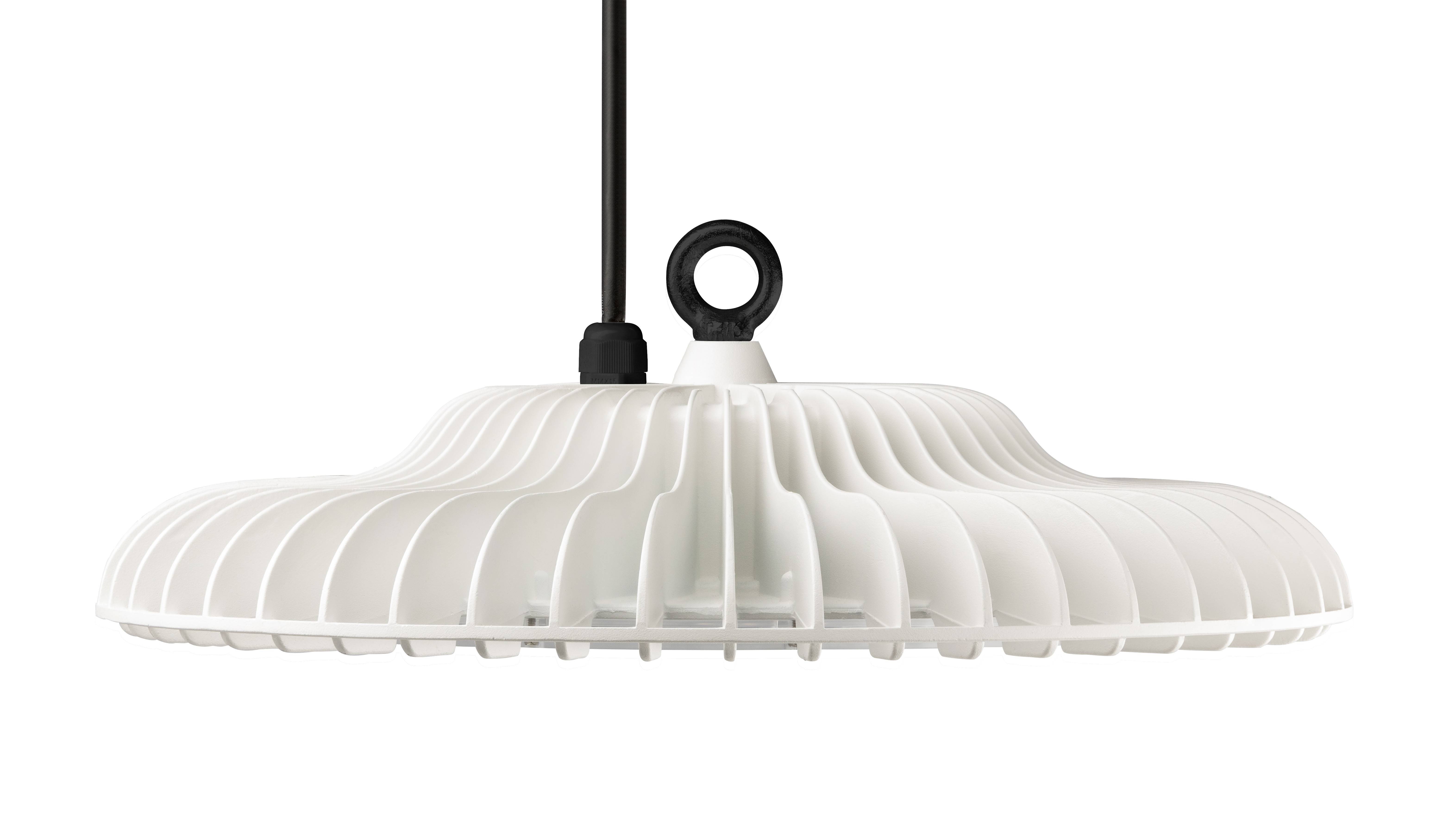

White LED pendant light with ribbed structure, suspended from the ceiling with a black cable. Perfect for industrial or modern interior spaces.

1/3

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 285.00 / piece)

€ 285.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Bulb: LED not replaceable
With bulb: Yes
Suitable for the number of bulbs: 1
Suitable for side lighting: No.
Version: Other
Material of housing: Aluminium
Housing color: White
Voltage type AC/DC
Nominal current: 0.74 mA
Rated LED current at constant current 585 mA
Operating device: LED operating device current-controlled
Removable operating device: No.
With operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Light distributor: Diffuser lens/-optic/-panel
Light distribution: Symmetric
Reflector: Without
Material of the reflector: Without reflector
Radiation angle: Extremely wide radiation >80°
Color consistency (McAdam ellipse): SDCM5
Rated life L70/B50 at 25 °C: 102126 h
Rated life L90/B10 at 25 °C: 27424 h
Protection class (IP) IP65
Protection class (NEMA): Other
Impact strength: IK08
Suitable for sports facilities: No.
Protection class: I
Lamp with limited surface temperature ""D-sign"": Yes
Rated ambient temperature according to IEC62722-2-1: -40..50°C.
Integrated emergency power supply: No.
Suitable for emergency light: No.
Filament testing according to IEC 60695-2-11:850°C - 30 s.
Max. System power 153 W
Rated light current according to IEC 62722-2-1: 27000 lm
Light output 176 lm/W
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Power factor 0.95
Constant luminous flux regulation: No.
Adjustable color temperature: No.
Luminous flux can be set: No
Width 380 mm
Height/depth 123 mm
Length: 380 mm
Outer diameter: 380 mm
Type of wiring: Finish
Connection type: Other
With protective cover: No.
Max. Number of lights circuit breaker B16: 9
Max. Number of lamps line circuit breakers C16: 15

Product type: LED hall light

Type: Circular

No. of bulbs: 1

Bulb type: LED (monochrome)

: 153 W

: 4000 K

Colour: White

: 27000 lm

Total luminous flux: 27000 lm

Light features: Incl. ballast

Protection class: I

: IP65

Factory colour: White

Material: Aluminium

Dim: (Ø x H) 380 mm x 123.00 mm

: n.rel.

Recess diameter: 380 mm

Colour rendering index: 80-89

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Width: 380.00 mm

Height: 123.00 mm

Length: 380.00 mm

Depth: 123 mm

(Ø): 380 mm

Rated luminous flux: 27000 lm

Light bulb included: Yes

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3163466 Pracht 9613112 9613112 LED hall light LED (monochrome) 153 W White

Description

LED hall lamp COMO BL, wide-beam (100°), BEG-capable, and thanks to lower wattage with the same luminous flux now even more efficient (176 lm/W). Compact round design and integrated ballast, including short, age-resistant silicone seals. Cover lenses with optimum internal structure for glare limitation (up to UGR 20) from PC. White powder-coated casing made of aluminum alloy. Optimised for logistics halls, industrial buildings and cold stores. Standard attachment by loop for hanging. Ceiling or horizontal wall mounting with the help of further accessories. 1:1 exchange possible. Individual configuration and CASAMBI available in the Pro-Line version.

This text is machine translated.
