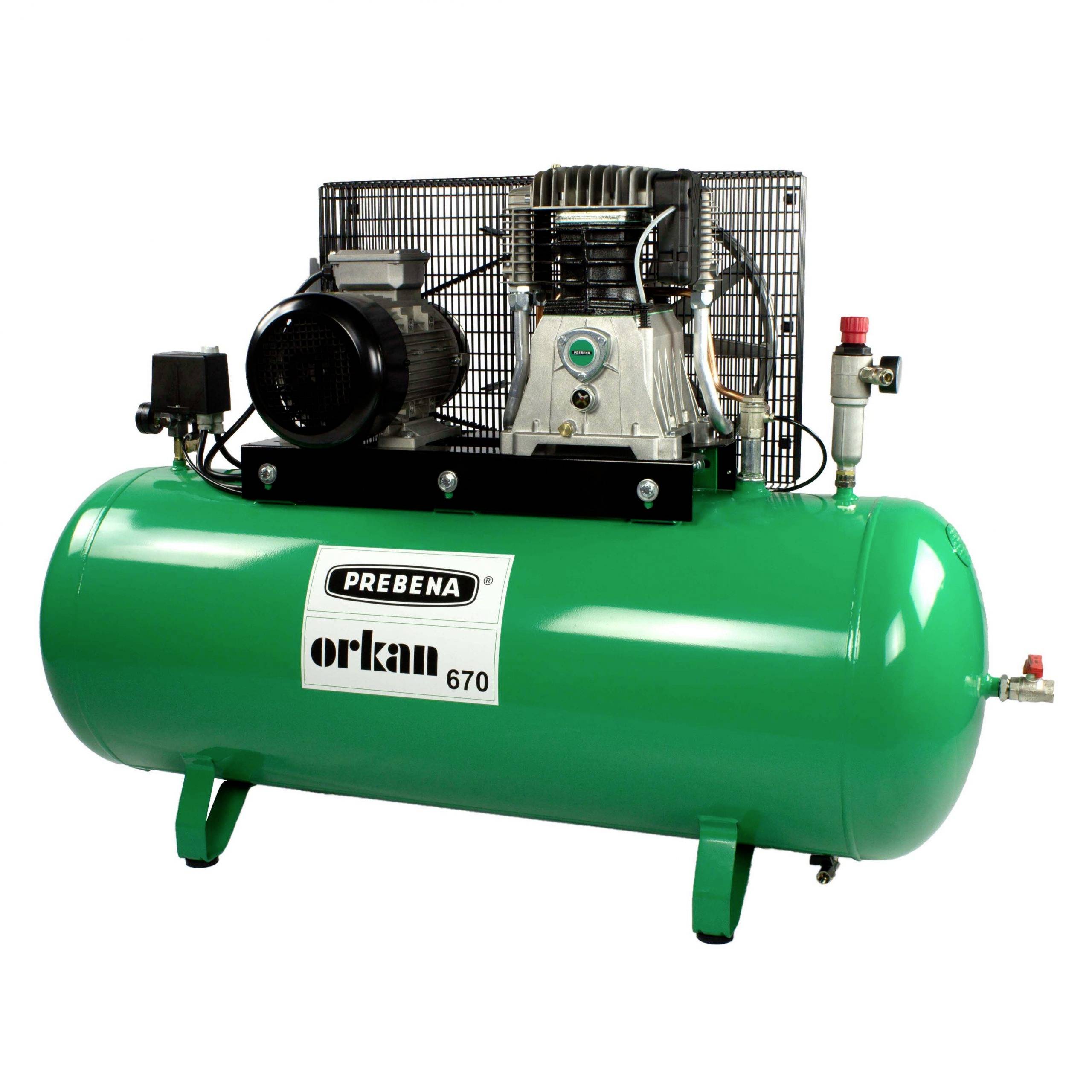

Prebena Air compressor ORKAN670 270 l 10 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,096.64 / piece)
€ 2,096.64
plus VAT.
Highlights & Details
Prebena compressor ORKAN670
- Boiler volume: 270 l
Technical specifications
- Voltage (V): 400
- Frequency (Hz) 50
- Cylinder: 2
- Max. Pressure (bar): 10
- Stationary/mobile: Stationary
- Compressed air connections: 3
- Motor circuit breaker: Yes
- Air connection via shut-off valve: Yes
- Ball valve for easy draining of condensation: Yes
- Vibration damping rubber feet: Yes
- Tank pressure gauge: Yes
- Quality pressure switch: Yes
- Pressure pipe ventilation: Yes
- CE earth-contact plug: Yes
- Belt guard made of metal: Yes
- 400V plug with phase inverter: Yes
- Suction filter: Yes
- Connection cable length (m): 5.0
- Engine (kW): 4.00
- Tank volume (l): 270
- Fill Capacity Product Finder 200-500
- Bar Product Finder: 0-10
- Speed (rpm): 1270
- Filling capacity (l/min): 450
- Suction power (l/min): 600
- Electrical fuse (A): 8.5
- Noise emission dB (A): 97
- Oil sight glass: Yes
- Safety valve tested: Yes
- Pressure reducer incl. pressure gauge and quick coupling: Yes
- Filter pressure reducer with quick couplers: 1
- Quick couplings 2
- Product type
Air compressor
- No. of cylinders
2
4000 W
- Vaccum power
600 l/min
- Flow rate
450 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
1270 U/min
- Boiler volume
270 l
- Operating voltage
400 V
- Weight
145 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3779340 Prebena Air compressor ORKAN670 270 l 10 bar
User & Safety Instructions
User & Safety Instructions 3779340 Prebena Air compressor ORKAN670 270 l 10 bar
Conformity certificate
Conformity certificate 3779340 Prebena Air compressor ORKAN670 270 l 10 bar
Description
Compressor with V-belt drive, 400 V plug with 16 A phase inverter, EN/VDE-tested connection cable, large fan wheel for efficient cooling, filter pressure reducer with water separator, low vibration and noise through low speed, quality pressure switch with relief valve, integrated motor protection, air connection with ball joint, manometer for boiler pressure gauge, tested safety valve, vibration-damping rubber feet
75% duty cycle
