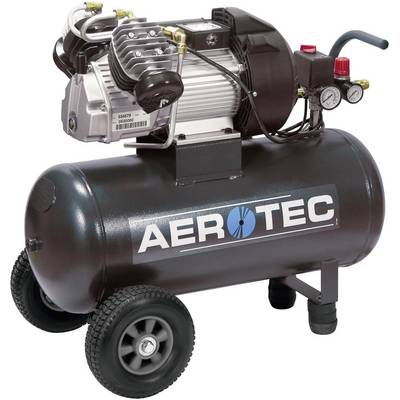

Aerotec Air compressor 400-50 50 l 10 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 407.56 / piece)
€ 407.56
plus VAT.
Highlights & Details
Compressor 400-50
- Contents: 50 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2
2200 W
- Vaccum power
350 l/min
- Flow rate
235 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
2880 U/min
- Boiler volume
50 l
- Operating voltage
230 V
- Length
860 mm
- Width
380 mm
- Height
710 mm
- Weight
50 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 431378 Aerotec Air compressor 400-50 50 l 10 bar
User & Safety Instructions
User & Safety Instructions 431378 Aerotec Air compressor 400-50 50 l 10 bar
User & Safety Instructions 431378 Aerotec Air compressor 400-50 50 l 10 bar
Description
Wheeled piston compressor in oil-lubricated design with 2-cylinder unit in V shape. Including Pressure reducer for exact output pressure setting. With large profiled, ball-bearing rubber wheels. The condensate drain is done with the ball valve. 2 feet for stability. Load at start-up via Condor Pressure Switch.
Features
- Direktgeflanschtes ball cock
- 2-cylinder unit with stainless steel valves
- Condor Pressure Switch
- Boiler internal pressure manometer
- output pressure gauge
- ball-bearing rubber wheels.
Hints
This text is machine translated.
