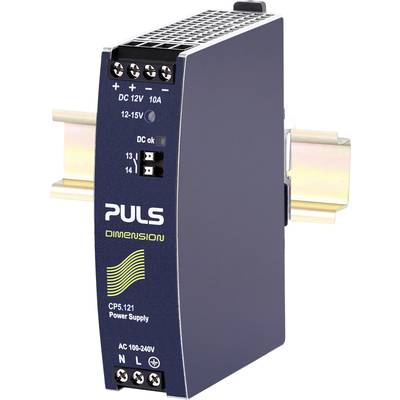

PULS CP5.121 Rail mounted PSU (DIN) 12 V DC 120 W Content 1 pc(s)
EAN:
Part number:
Item no:
13 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 176.46 / piece)
€
Technical specifications
- Nominal input voltage
AC 100-240V
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
8 A at 15 V
10 A at 12 V
- Input voltage (max.)
264 V AC
120 W
- Output voltage (nominal)
12 V DC
- Connection
Screw terminal
- Dim
(L x W x H) 124 x 32 x 102 mm
- Output voltage (min.)
12 V
15 V
- Operating temperature (max.)
+70 °C
- Max. operating temperature (derating)
+60 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
CP5.121
- Content
1 pc(s)
- MTBF
732000 h
- Width
32 mm
- Height
102 mm
- Length
124 mm
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Type
CP5.121
- Efficiency
94 %
Description
The DIN rail power supplies of THE DIMENSION product family impress through their highest performance, a large variety of variants as well as extensive features and approvals.
