Buy Renkforce 1582598 Digital code lock Surface-mount Set 12 V IP65 + backlit keypad

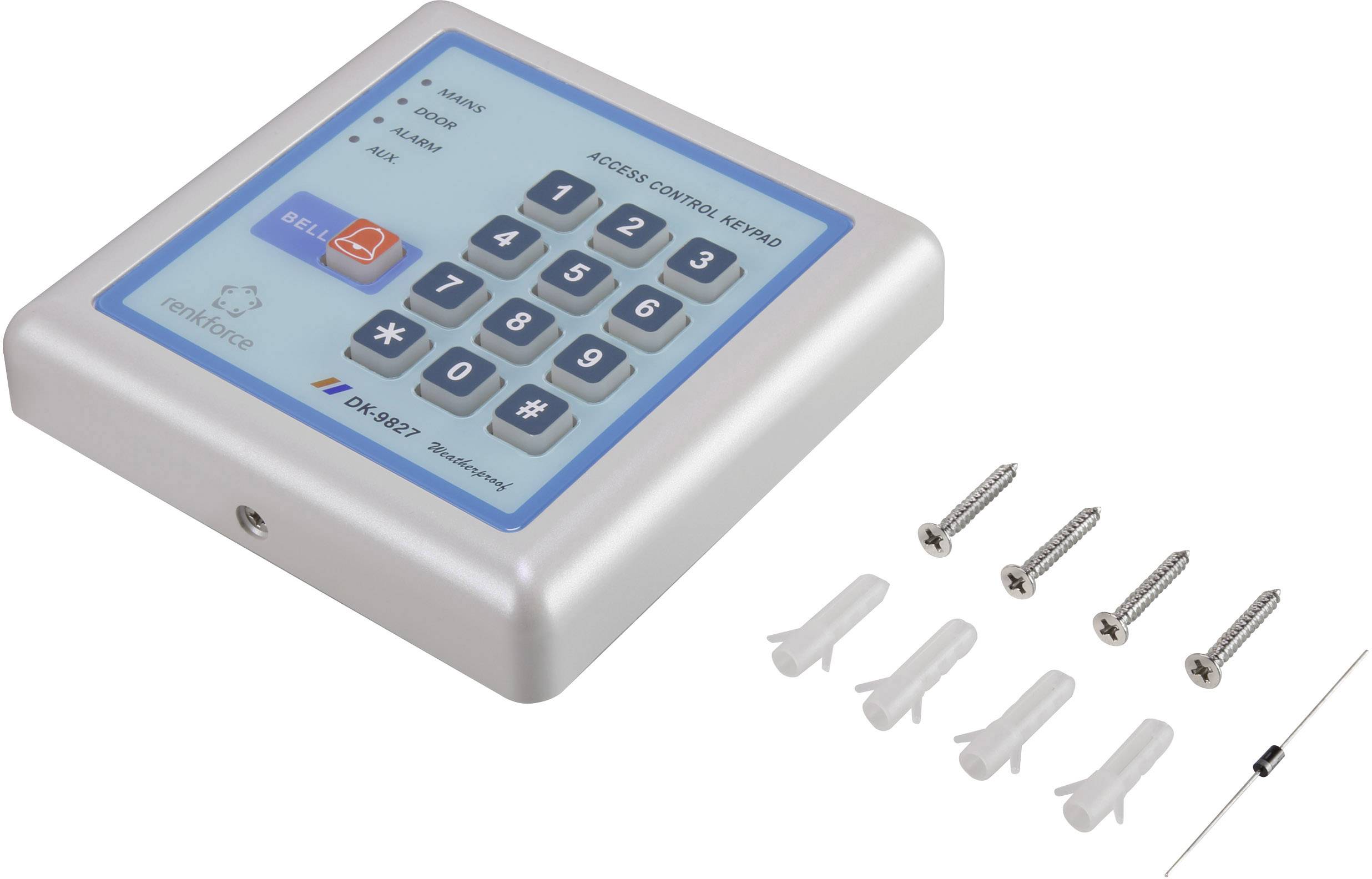

A numeric access control panel with a keypad, illuminated 'BELL' button and accessories such as screws and wall plugs for mounting.

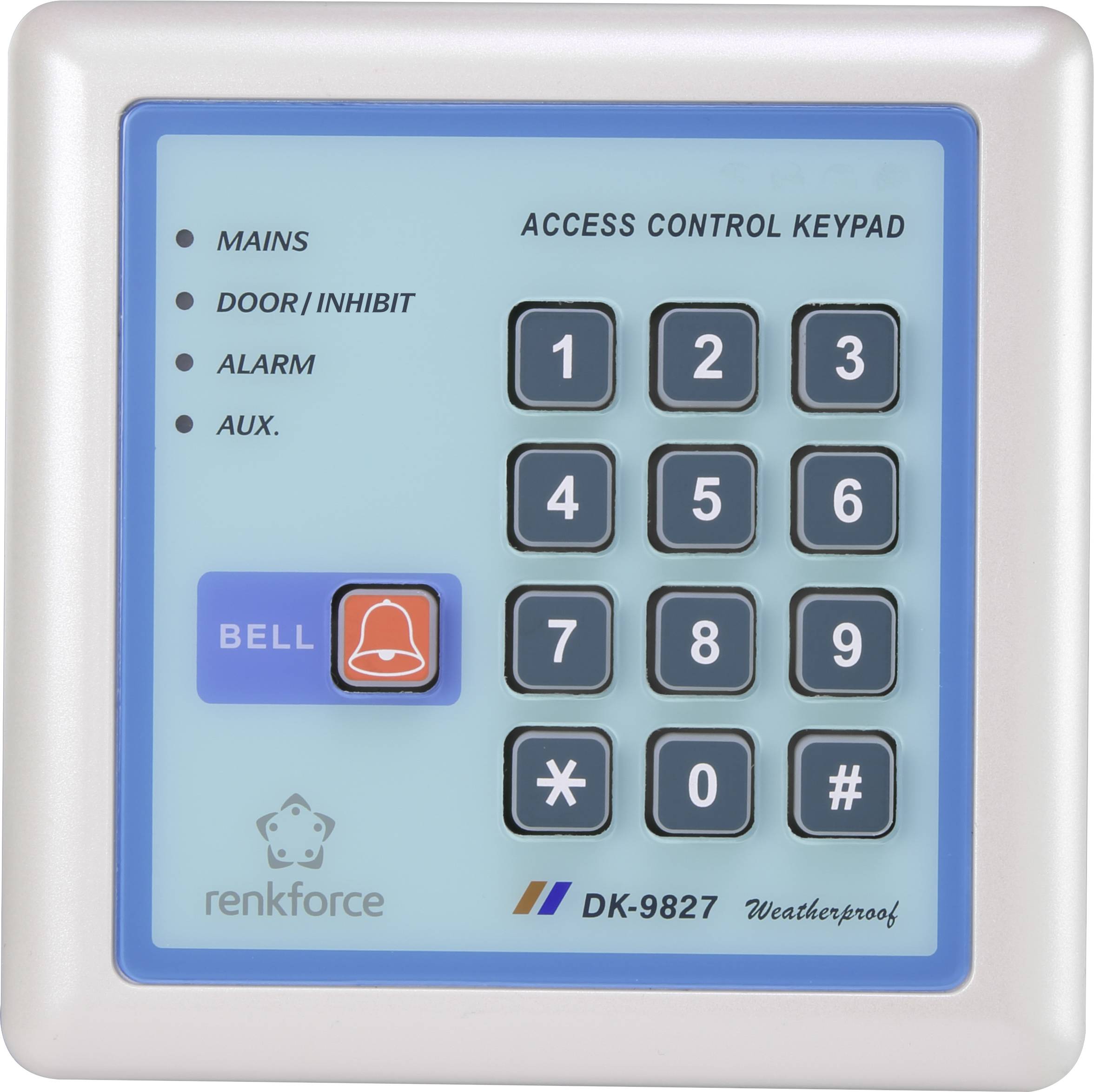

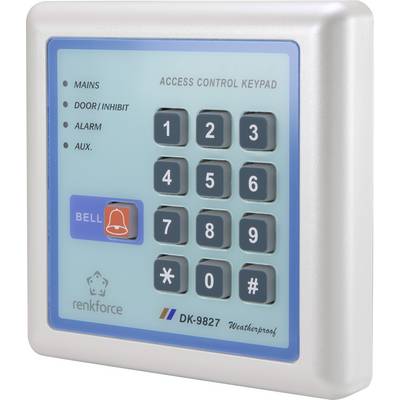

Door access control device with keypad. Keys from 0 to 9, asterisk and hash. Keys for 'BELL'. Indicators: Mains, Door/Inhibit, Alarm, Aux.

An electronic access control system with a numeric keypad, wall-mountable. Includes screws and mounting hardware.

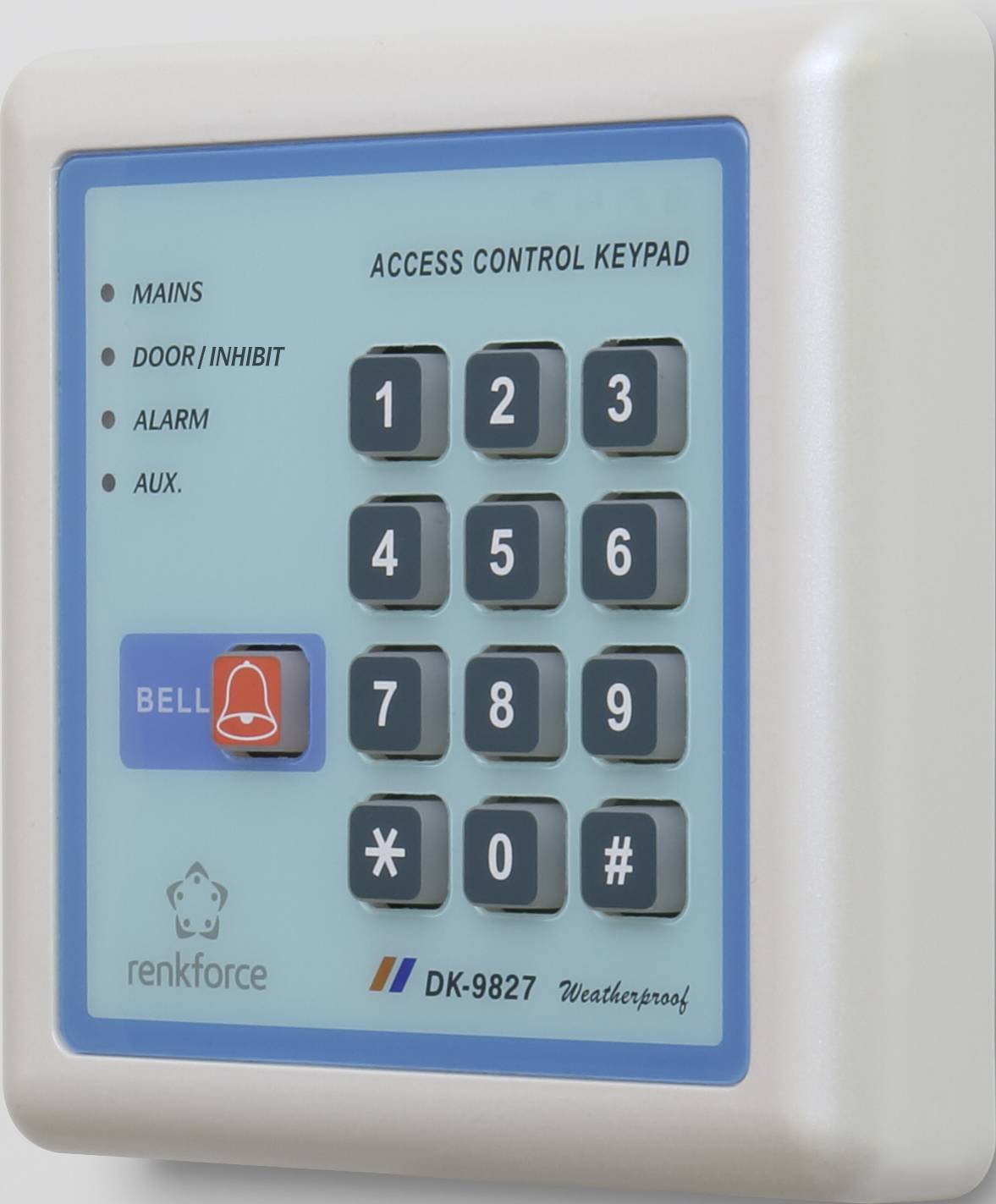

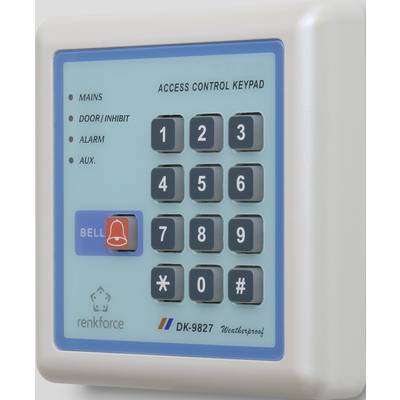

Access control keypad with numeric keypad and bell symbol. Functions: 'Mains', 'Door Inhibit', 'Alarm', 'Aux'.

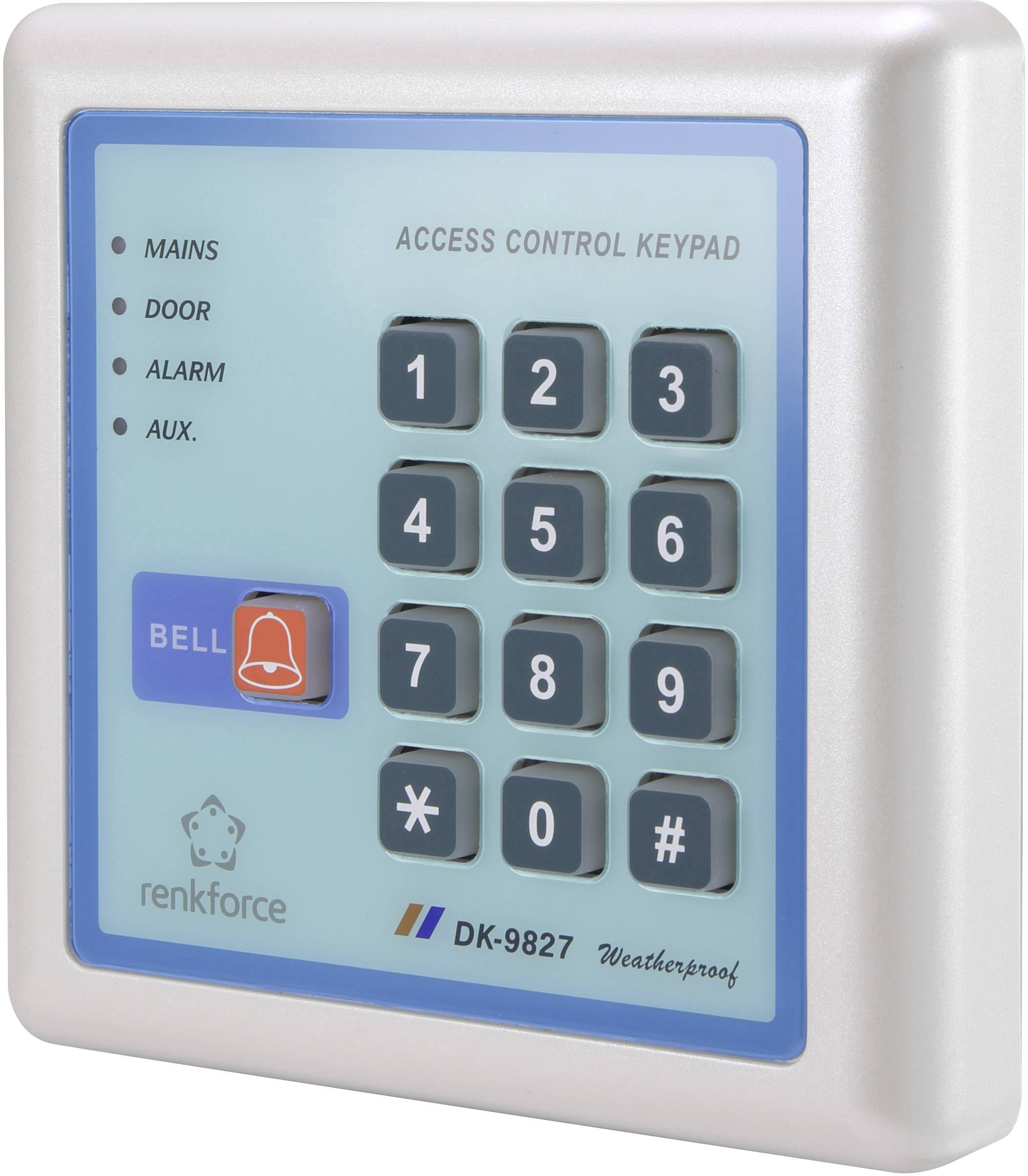

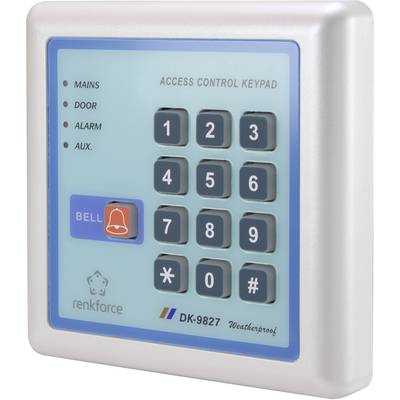

'Electronic Access Control: Keypad with numbers 0-9, bell button bottom left, and system status LEDs for Mains, Door, Alarm, Aux.'

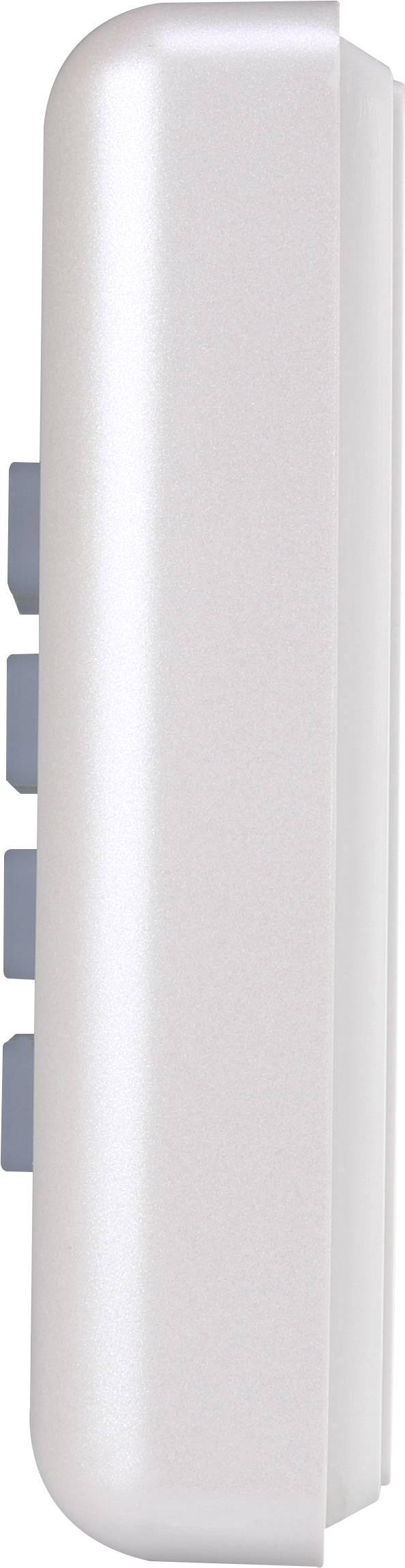

A side view of a device with several rectangular buttons on the left side.

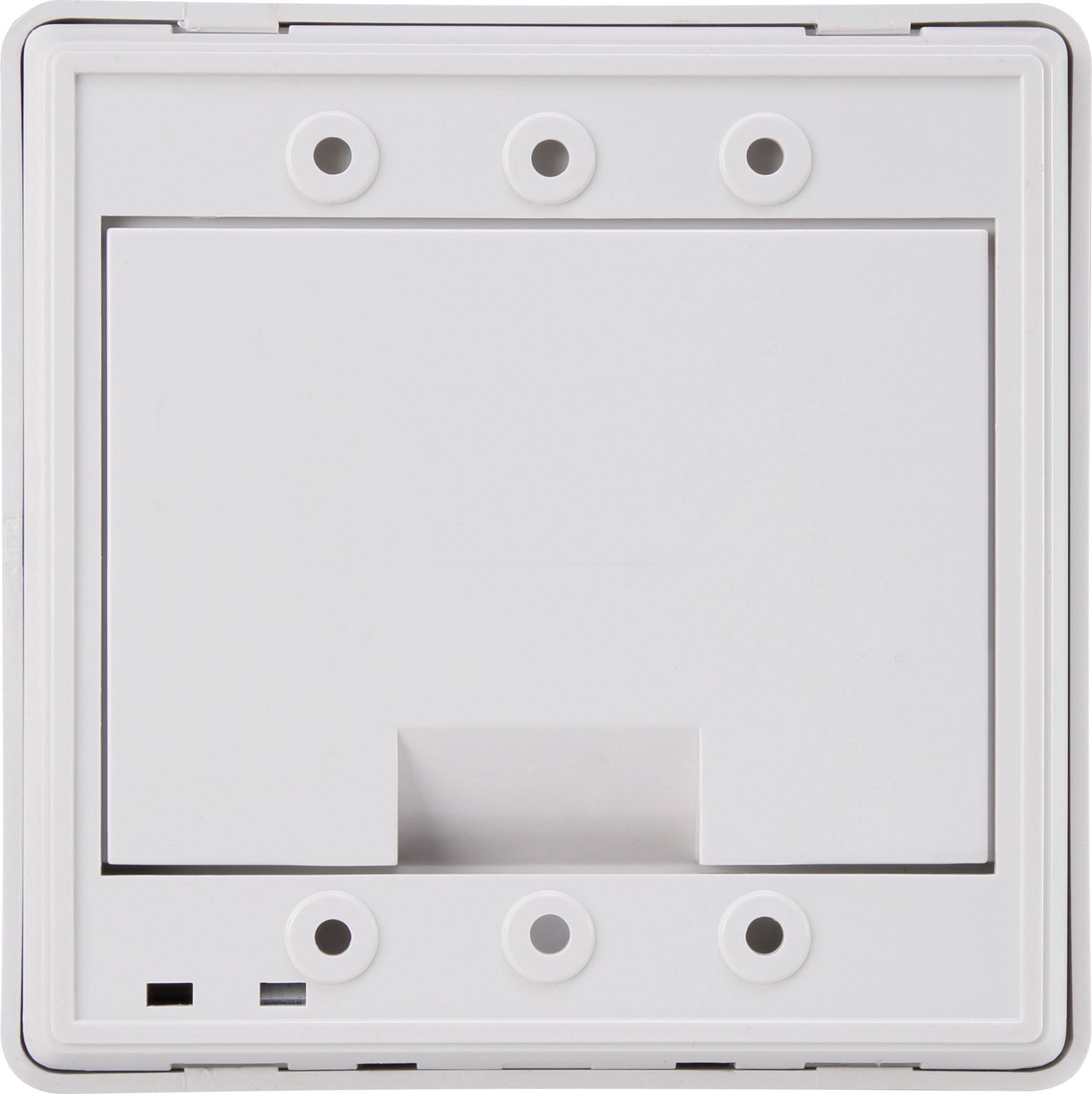

A square, white plastic casing with several round holes and rectangular cut-outs, possibly for a socket or switch.

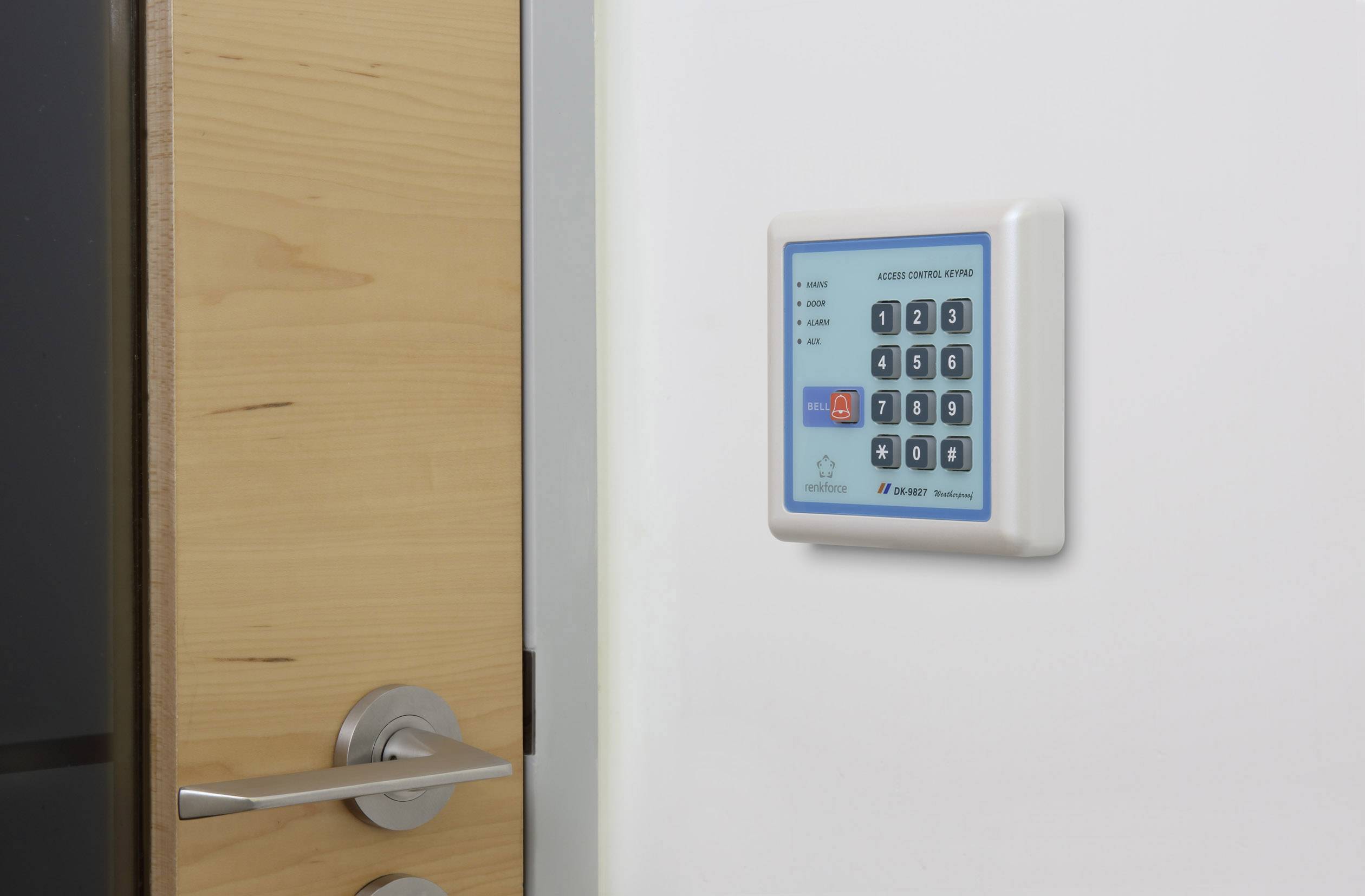

A door with an access control panel featuring a numerical keypad on the wall.

1/9

Our service for you

Fast track dispatch on Tue, 15 Sep

55 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 57.13 / piece)

€ 57.13

plus VAT.

Report legal concerns

Highlights & Details

Renkforce 3-channel multi-Code Lock

28 mm thin
Doorbell feature
Backlit keyboard
Splashproof

Technical specifications

- Operation Voltage:
12V DC, 11-15V DC
- Operation Current:
Quiescent - 15mA
Maximum - 100mA (Relays operating)
- Tamper Switch Contact:
Normally Closed Dry Contact, 50mA / 24VDC Max.
- OUTPUT 3, Duress, Inter-lock & Key Active Output Rating:
NPN Open Collector switches to ground when active, 24VDC / 100mA Sink
- Auto Refreshing Time During Code Entry:
a) Eash Digit Maximum Entry Time Limit -- 10 seconds
b) Eash Code Maximum Entry Time Limit -- 30 seconds
IP65
- Working temperature & humidity: -20-70ºC / 5-95%
- Storage temperature and humidity: -20-70ºC / 5-95%

Product type: Digital code lock

Operating voltage: 12 V

Current consumption: 15 mA

Mounting type: Surface-mount

Triggered by: Numerical code

Contact load capacity: 1 A

: IP65

: not cloud-enabled

Weight: 230 g

Dim: (W x H x D) 117 x 117 x 28 mm

Features: + backlit keypad

Weight, information: empty

Width: 117 mm

Height: 117 mm

Depth: 28 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1582598 Renkforce 1582598 Digital code lock Surface-mount Set 12 V IP65 + backlit keypad

Information

Information 1582598 Renkforce 1582598 Digital code lock Surface-mount Set 12 V IP65 + backlit keypad

Conformity certificate

Conformity certificate 1582598 Renkforce 1582598 Digital code lock Surface-mount Set 12 V IP65 + backlit keypad

Description

This combination of code lock and doorbell has as a great access control for buildings, rooms or sensitive IT areas is well proven. An unbelievably wide range of different code and user combinations is available. In addition to programming individual access codes, you can also determine which of the two output relays is activated by the code entry. If a code is entered incorrectly 10 times, the keypad can be locked or a quiet alarm triggered. In addition, an integrated sabotage contact reliably protects against unauthorized opening of the case.
