Renkforce Motherboard and CPU AMD Ryzen 5 5600 GT 4.60 GHz 0 GB DDR4 RAM Micro-ATX

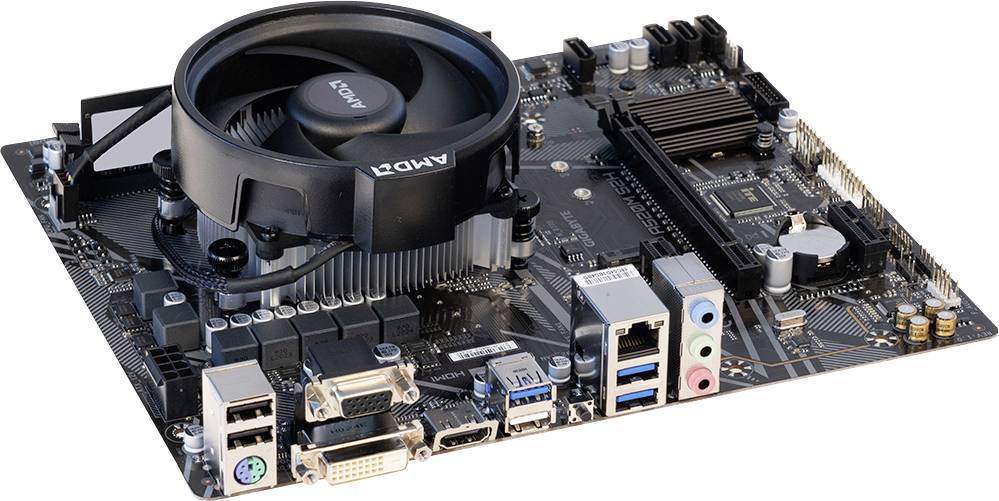

'Image of a computer motherboard with a CPU cooler, various ports, and slots for RAM and expansion cards, indicating hardware configuration.'

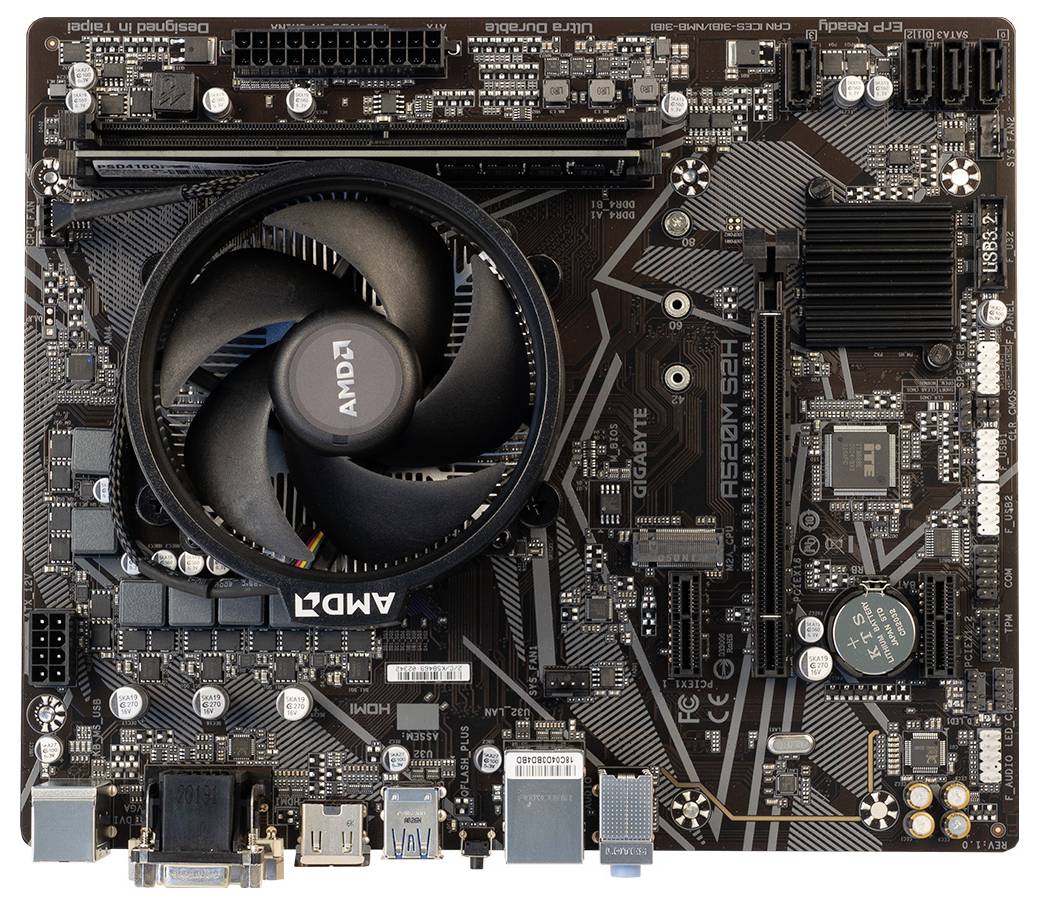

'Top view of a motherboard with AMD fan installed; numerous circuits, ports, and components visible, suggesting computer hardware setup.'
1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Currently not available
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 285.00 / piece)
€ 285.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Renkforce PC tuning kit AMD Ryzen 5 5600GT 4.6 GHz/TM, GA-A520M-S2H, M-ATX

  • AMD Ryzen 5 5600 GT (6 x 3.6/4.6 GHz) processor
  • 1* PCI Express 3.0 x16 slot
  • 2* PCI Express 3.0 x1 slot
  • 4* SATA3 6.0 GB/s connectors
  • 1* M.2 ports M.2 (Socket 3, 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
  • Gigabyte A520M S2H Micro ATX mainboard
  • Integrated AMD RADEON graphics
  • The ultimate performance booster for your PC
  • Synchronized components
  • Assembled.
  • 2 free DDR4 memory sockets (max. 2x32 GB) (not included)

Technical specifications

  • 1 x 24-pin ATX main Power connector
  • 1 x 8 pin ATX 12V Power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x Adressable LED strip header
  • 1 x RGB LED strip header
  • 1 x M.2 socket 3 connector
  • 4 x SATA 6Gb/s connector
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
  • 1 x serial port header
  • 1 x speaker header
  • 1 x chassis intrusion header
  • 1 x Clear CMOS jumper
  • ＊All fan heads are subjective to support AIO_Pump, Pump and high-performance fan with the capacity of providing up to 2A/12V @ 24W.
Product type

Motherboard and CPU

Chipset

AMD® A520

Features

CPU cooler included

Motherboard

Gigabyte A520M S2H

AMD AM4

Form factor

Micro-ATX

CPU series

AMD Ryzen 5

Processor/type

5600 GT

Processor cores (No.)

6 x

CPU speed

3.6 GHz

CPU turbo clock speed (max.)

4.60 GHz

Onboard graphics card

Yes

Onboard graphics card (GPU manufacturer)

AMD

Onboard graphics card (version)

Radeon

Dedicated graphics card

No

0 GB

RAM type

DDR4 RAM

Memory clock speed

3200 MHz

RAM / Max. upgrade

64 GB

Interfaces

Audio 7.1 (3.5 mm jack)

No. of DDR4 slots

2 x

No. of Gigabit LANs

1 x

No. of PCIe 3.0 x16

1 x

No. of PCIe x1

2 x

No. of USB 3.2

4 x

No. of USB 2.0 ports

2 x

No. of SATA III ports

4 x

Onboard audio

7.1

No. of PS/2 ports

1 x

Motherboard slots

1* PCI Express 3.0 x16 slot
2* PCI Express 3.0 x1 slot
4* SATA3 6.0 GB/s connectors
1* M.2 ports M.2 (Socket 3, 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Range of uses

Office

Gaming

Home

Media

CPU clock rate

6 x 3.6 GHz / max. 4.60 GHz

Documents & Downloads

Datasheet

Datasheet 3639225 Renkforce Motherboard and CPU AMD Ryzen 5 5600 GT 4.60 GHz 0 GB DDR4 RAM Micro-ATX

User & Safety Instructions

User & Safety Instructions 3639225 Renkforce Motherboard and CPU AMD Ryzen 5 5600 GT 4.60 GHz 0 GB DDR4 RAM Micro-ATX

Description

With our tuning kits you can increase the performance of your PC in just a few simple steps.

The tuning kit is one of the most effective ways to achieve the targeted performance of a desktop computer. The perfectly tuned complete set consists of mainboard, processor, RAM (only A-brands) as well as high-end CPU-cooler and is already assembled (tower cooler must be self installed).
Each set is subjected to a detailed test after assembly and is perfectly adjusted, thus guaranteeing maximum performance.

By swapping key components that are crucial for the performance of the PC, you will bring your PC up to date with the latest technology.

You can find further details of this tuning kit in the download area and in the image overview.

Attention: NO memory is included in the delivery with this set!

This text is machine translated.

Scope of delivery

  • Pre-assembled kit, comprising: Motherboard, CPU and CPU-cooler

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
