Renkforce PC tuning kit Intel® Core™ i5-12400 4.4 GHz 16 GB DDR4 RAM M.2 PCIe Micro-ATX
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 469.00 / piece)
€ 469.00
incl. VAT
Only 4 Piece(s) available
Highlights & Details

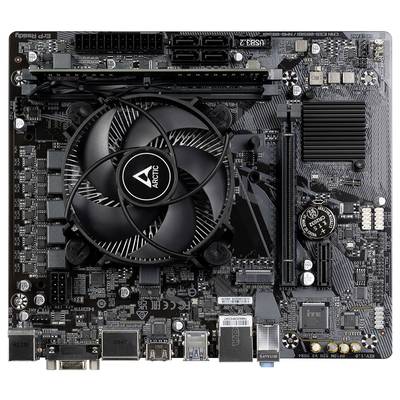

Renkforce PC tuning kit, Intel® Core™ i5-12400, 16 GB DDR4-RAM, micro ATX
- Intel® Core™ i5 12400 (6 x 2.5/4.4 GHz) processor
- Gigabyte GA H610M S2H V3 micro ATX motherboard
- The ultimate performance booster for your PC
- Synchronized components
- Assembled and tested
Technical specifications
- Operation with 4 monitors is possible !
- Monitor connections for internal Intel UHD 730 graphics: 1x VGA, 1x HDMI, 2x display port
- Internal onboard connections:
- 1 x 24 pin ATX main power connector
- 1 x 8-pin ATX 12V power connection
- 1 x CPU fan connection
- 2 x system fan connections
- 1 x M.2 base 3 connections
- 4 x SATA 6Gb/s connections
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB 3.2 Gen 1 connections
- 2 x USB 2.0/1.1-pin strip
- 1 x Trusted Platform Module header (only for the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module)
- 1 x serial port header
- 1 x clear CMOS jumper
- 1 x chassis-intrusion-header
- Product type
PC tuning kit
- Chipset
Intel® H610
- Features
CPU cooler included
- Motherboard
Gigabyte GA H610M S2H V3
Intel® 1700
- Form factor
Micro-ATX
- CPU series
Intel® Core™
- Processor/type
i5-12400
- Processor generation
12th Gen (Alder Lake)
- Processor cores (No.)
6 x
- CPU speed
2.5 GHz
- CPU turbo clock speed (max.)
4.4 GHz
- Onboard graphics card
Yes
- Onboard graphics card (GPU manufacturer)
Intel
- Onboard graphics card (version)
UHD graphics 730
- Dedicated graphics card
No
16 GB
- RAM type
DDR4 RAM
- Memory clock speed
3200 MHz
- RAM / Max. upgrade
64 GB
- SSD connection
M.2 PCIe
- Operating system (Version)
w/o OS
- Interfaces
VGA
HDMI™
DisplayPort
Audio 7.1 (3.5 mm jack)
- No. of DDR4 slots
2 x
- No. of LAN ports
1 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
1 x
- No. of USB 3.2
2 x
- No. of USB 2.0 ports
4 x
- No. of SATA III ports
4 x
- Onboard audio
7.1 HD
- No. of PS/2 ports
1 x
- Range of uses
Office
Home
Media
- CPU clock rate
6 x 2.5 GHz / max. 4.4 GHz
Documents & Downloads
Datasheet
Datasheet 3333811 Renkforce PC tuning kit Intel® Core™ i5-12400 4.4 GHz 16 GB DDR4 RAM M.2 PCIe Micro-ATX
User & Safety Instructions
User & Safety Instructions 3333811 Renkforce PC tuning kit Intel® Core™ i5-12400 4.4 GHz 16 GB DDR4 RAM M.2 PCIe Micro-ATX
Description
With our tuning kits you can increase the performance of your PC in just a few simple steps.
The tuning kit is one of the most effective ways to achieve the targeted performance of a desktop computer. The perfectly tuned complete set consists of mainboard, processor, RAM (only A-brands) as well as high-end CPU-cooler and is already assembled (tower cooler must be self installed).
Each set is subjected to a detailed test after assembly and is perfectly adjusted, thus guaranteeing maximum performance.
By swapping key components that are crucial for the performance of the PC, you will bring your PC up to date with the latest technology.
You can find further details of this tuning kit in the download area and in the image overview.
This text is machine translated.
The tuning kit is one of the most effective ways to achieve the targeted performance of a desktop computer. The perfectly tuned complete set consists of mainboard, processor, RAM (only A-brands) as well as high-end CPU-cooler and is already assembled (tower cooler must be self installed).
Each set is subjected to a detailed test after assembly and is perfectly adjusted, thus guaranteeing maximum performance.
By swapping key components that are crucial for the performance of the PC, you will bring your PC up to date with the latest technology.
You can find further details of this tuning kit in the download area and in the image overview.
This text is machine translated.
