Name: Renkforce PC tuning kit AMD Ryzen 9 9900X 5.60 GHz 32 GB DDR5 RAM ATX
Brand: Renkforce
SKU: 3324658
Availability: BackOrder

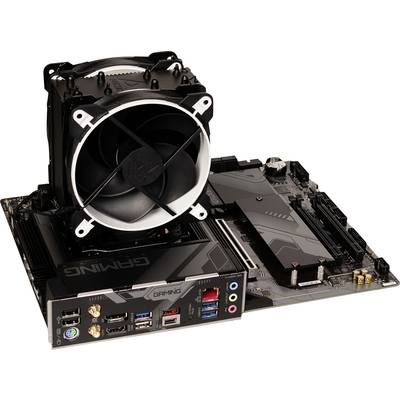

A computer motherboard with an installed CPU cooler. Visible connections include USB ports, audio sockets, and LAN port.

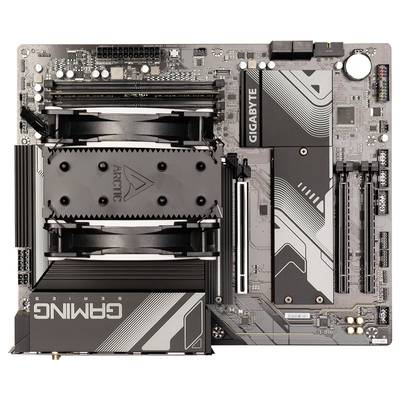

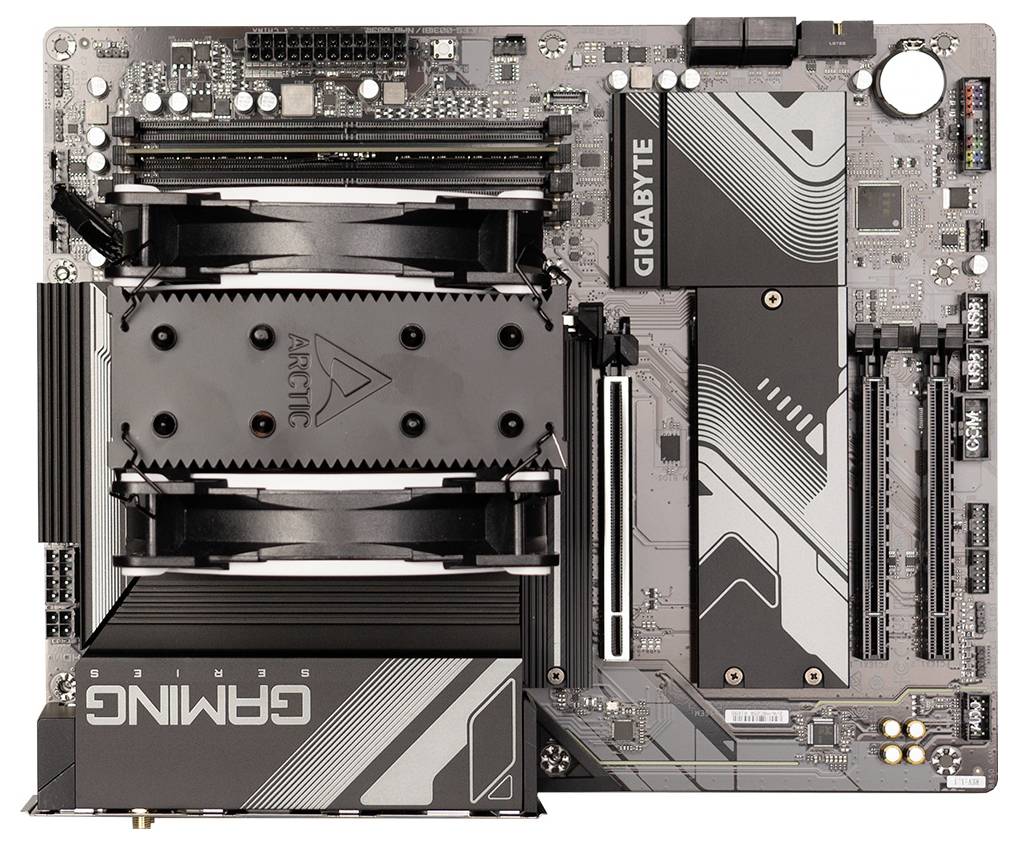

Motherboard viewed from above with branding from 'GIGABYTE' and 'ARCTIC', heatsinks and connectors for processor, RAM, and expansion cards.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,149.00 / piece)

€ 1,149.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Renkforce PC tuning kit AMD Ryzen9 - 9900X, 32GB DDR5, GA-GamingX-AX, ATX

AMD Ryzen 9 9900X (12 x 4.4/5.6 GHz) processor
32 GB DDR5 memory (2x 16 GB module) (can be extended to up to 256 GB (4x64 GB))
Integrated AMD Radeon™ graphics with RDNA2 technology (2-core / 2200 MHz)
1x PCI Express PCIe 4.0 x16 slot for your graphics card
2.5G Gigabit LAN, 7.1 HD audio and WIFI 6e (ax) 2.4/5/6 GHz and Bluetooth 5.2/5.3
3x PCIe 4.0 x4 M.2 SSD connections
1 x USB 3.2 1st Gen 2 Type-C port, 1 x USB 3.2 1st Gen 2 Type A port (red), 3 x USB 3.2 1st Gen 1 ports
High-quality CPU cooler
The ultimate performance booster for your PC
Synchronized components
Assembled and tested

Technical specifications

Internal onboard connections: 1 x 24-pin ATX main power connection; 1 x 8-pin ATX 12V power connection; 1 x CPU fan headers; 3 x system fan headers; 1 x addressable LED strip headers (D_LED1); 1 x RGB LED strip headers; 1 x M.2 base 3 connections; 4 x SATA 6Gb/s connections; 2 x front panel headers; 1 x front panel audio header; 1 x USB type-C® header with USB 3.2 Gen 1 support; 2 x USB 3.2 Gen 2 header; 1 x USB 2.0/1.1 header; 1 x trusted platform module header (only for GC-TPM2.0 SPI/GC-TPM2.0 SPI 1/GC-TPM2.0 SPI V2 module); 1 x serial connector header; 1 x reset jumper; 2.0 x reset jumper; 1 x Clear CMOS jumper

Product type: PC tuning kit

Chipset: AMD® B650

Features: CPU cooler included

Motherboard: Gigabyte Gaming X-AX

: #####AMD AM5

Form factor: ATX

CPU series: AMD Ryzen 9

Processor/type: 9900X

CPU cache: 64 MB

Processor cores (No.): 12 x

CPU speed: 4.4 GHz

CPU turbo clock speed (max.): 5.60 GHz

Onboard graphics card: Yes

Onboard graphics card (GPU manufacturer): AMD

Onboard graphics card (version): RADEON

Dedicated graphics card: No

: 32 GB

RAM type: DDR5 RAM

Memory clock speed: 5600 GHz

RAM / Max. upgrade: 256 GB

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 2 x

No. of PCIe x4: 1 x

No. of USB 3.2 2nd Gen (USB 3.1): 1 x

No. of USB 3.2: 3 x

No. of USB 3.0 ports: 1 x

No. of USB 2.0 ports: 3 x

No. of SATA III ports: 4 x

Onboard audio: 7.1 HD

No. of PS/2 ports: 2 x

Range of uses: Office
Design
Gaming
Home
Media

CPU clock rate: 12 x 4.4 GHz / max. 5.60 GHz

Documents & Downloads

Datasheet

Datasheet 3324658 Renkforce PC tuning kit AMD Ryzen 9 9900X 5.60 GHz 32 GB DDR5 RAM ATX

User & Safety Instructions

User & Safety Instructions 3324658 Renkforce PC tuning kit AMD Ryzen 9 9900X 5.60 GHz 32 GB DDR5 RAM ATX

Description

Get the complete package for your computer with this Renkforce upgrade kit. The tuning kit is one of the most effective ways to achieve the targeted performance of a desktop computer. The perfectly matched complete set consists of motherboard, processor, RAM and CPU cooler and is already assembled (tower cooler must be self installed). By changing key components that are critical to the performance of the PC, the PC is brought to the state of the art. Each set is subjected to a detailed test after assembly and is perfectly adjusted, thus offering maximum performance.

The brand new AMD Ryzen 9 9900X (Granite Ridge) on AMD Zen 5 architecture is manufactured in the latest 4Nm FinFET verhaving and provides 12 processor cores (24 threads) and supports a max. Boost frequency of up to 5.6 GHz.
The processor is AMD-specifically unlocked for overclocking, and has a 960 KB L1 cache, 12 MB L2 cache and 64 MB L3 cache).

This text is machine translated.
