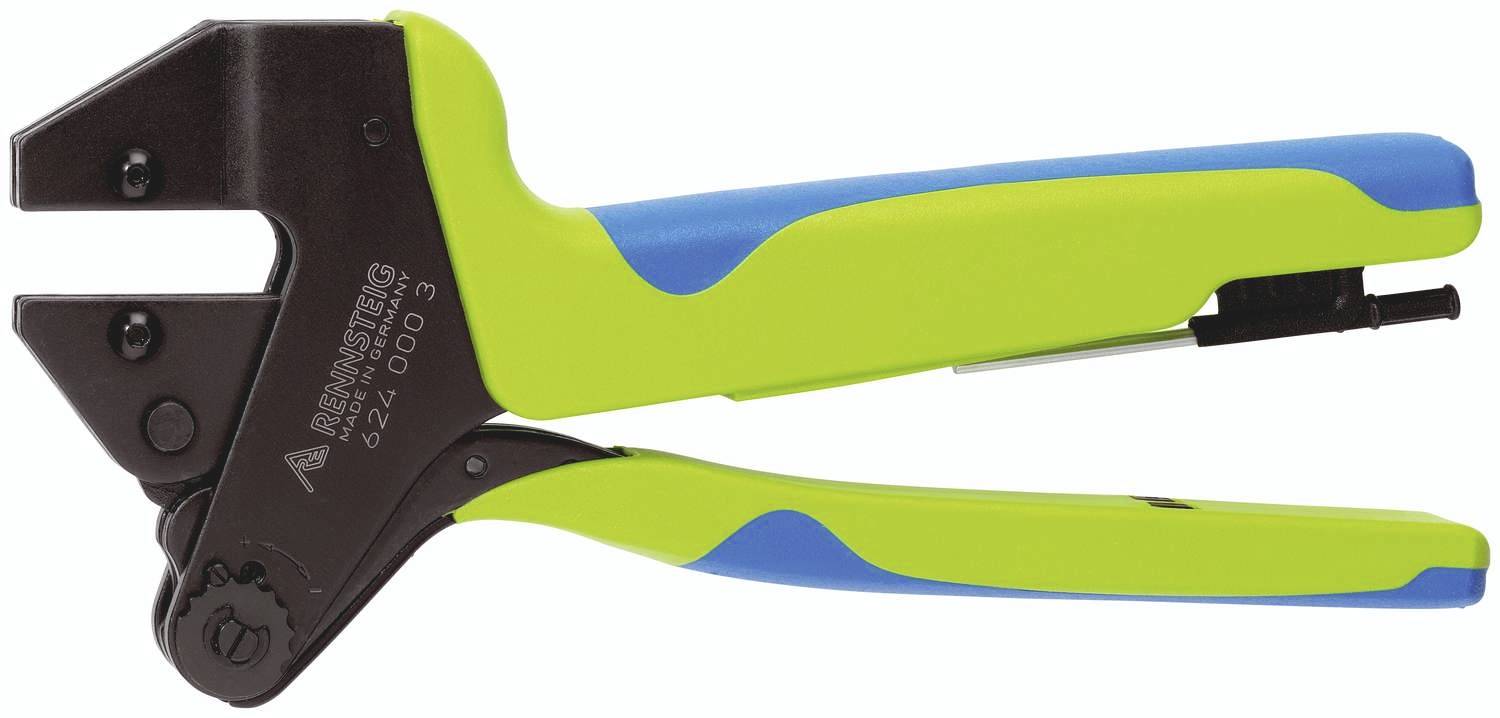

Rennsteig Werkzeuge PEW12.32 624 032 3 Crimper Non-insulated wire connectors 0.5 up to 10 mm²
EAN:
Part number:
Item no:
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
Technical specifications
- Product type
Crimper
- Manufacturer part #
624 032 3
- Range of uses
Non-insulated wire connectors
- Crimp area
0.5 up to 10 mm²
- Crimp area AWG
7 up to 20 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
10 mm²
- Crimp area AWG (min.)
20 awg
- Crimp area AWG (max.)
7 awg
- Length
250 mm
- Weight
550 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1228399 Rennsteig Werkzeuge PEW12.32 624 032 3 Crimper Non-insulated wire connectors 0.5 up to 10 mm²
Description
Crimp system pliers PEW 12. Special crimping pliers for crimping of almost all current crimp connector with a conductor cross-section of 0.08 - 50 mm². guarantees accurate interior and solder-free electrical connections. parallel crimp jaw feed. thanks to optimal leverage ratio only low hand force required. Good handling through ergonomic center of gravity. One and two-handed operation possible. a variety of combination possibilities with changeable crimping insets and contact recordings. Adjustable Crimp pressure. with ratchet (unlocked) for reliable crimping. Ergonomic, non-slip 2K-Grip low grip width. with crimp inset for non-insulated connector according to DIN 46234. 46235 and 46267 0. CM 5-1 0 mm². 1. 5-2. 5 mm². 4. 0-6. 0 mm² and 10. 0 mm². Mandrel crimp. Made in Germany
Hints
This text is machine translated.
