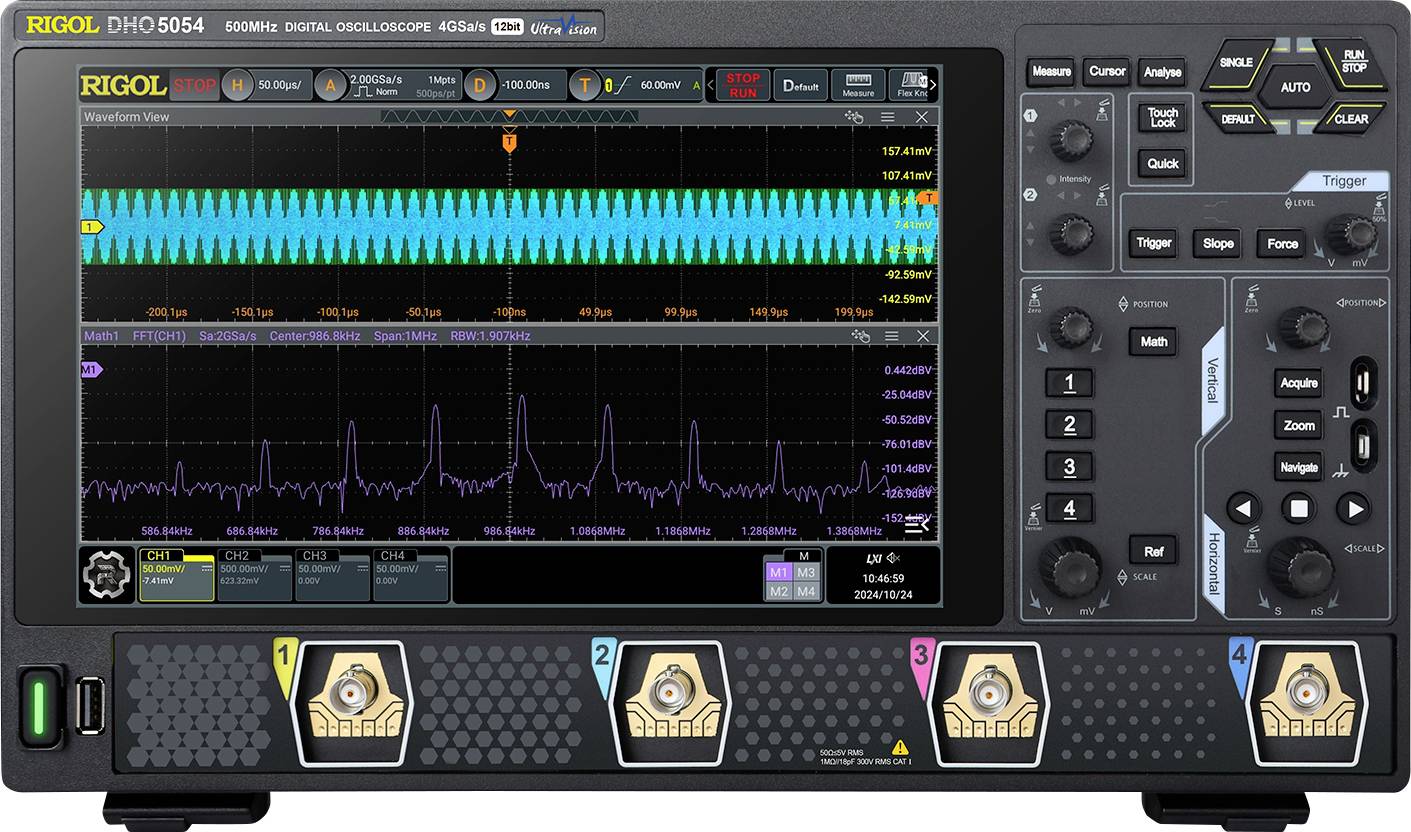

'Oscilloscope with two signal waveforms on the screen, controls on the right-hand side. Displays voltage over time.'

'Oscilloscope with two signal waveforms on the screen, controls on the right-hand side. Displays voltage over time.'

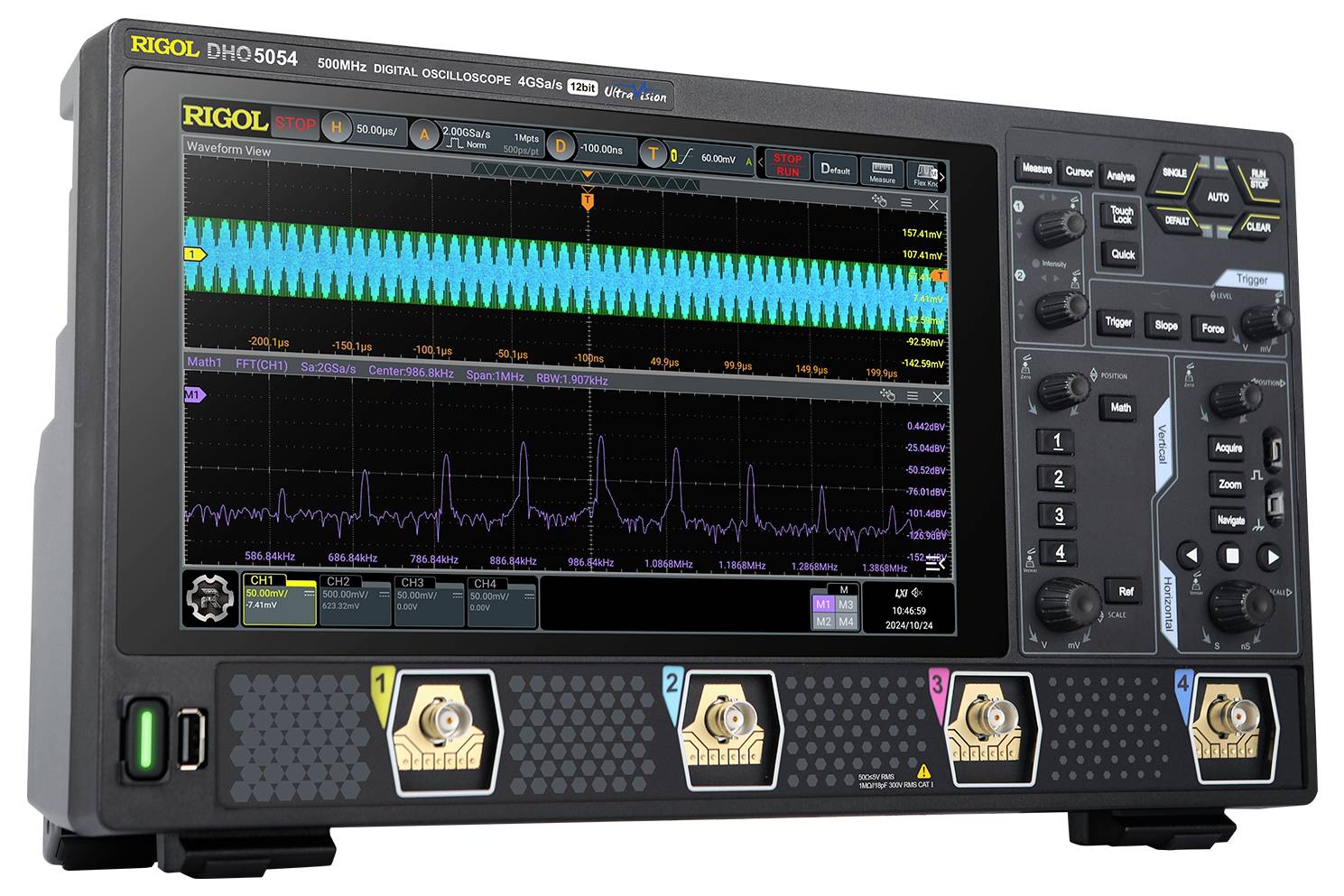

'Oscilloscope with digital display, showing two waveforms in different colours. Various control buttons are visible.'

1/2

Rigol

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 7,239.00 / piece)

€ 7,239.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

RIGOL DHO5054 Oscilloscope

500 MHz
No. of analogue inputs 4

Technical specifications

Product type: Digital

Bandwidth: 500 MHz

Channel sample rate: 4 GS/s

Resolution: 12 Bit

Screen size: 10.1 inch

Oscilloscope features: Digital storage (DSO)

No. of analogue inputs: 4

: Manufacturer's standards (no certificate)

Interfaces: USB 3.2 1st Gen (USB 3.0) type A socket

Channel memory depth: 250 MP

Type: DHO5054

Documents & Downloads

Datasheet

Datasheet 3394084 Rigol DHO5054 Digital 500 MHz 4 GS/s 250 MP 12 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3394084 Rigol DHO5054 Digital 500 MHz 4 GS/s 250 MP 12 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions 3394084 Rigol DHO5054 Digital 500 MHz 4 GS/s 250 MP 12 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions 3394084 Rigol DHO5054 Digital 500 MHz 4 GS/s 250 MP 12 Bit Digital storage (DSO) 1 pc(s)

Description

Digital oscilloscope, 500 MHz bandwidth, 12-bit, 4 channels, 10.1-inch WXGA touchscreen,
Sampling rate 4 GS/s per channel, memory depth 500/250M points (2/4 channel),
RS232/UART and I2C/SPI trigger and analysis function, signal acquisition rate of up to 1,000,000 signals/s, real-time hardware recorder up to 500,000 recordings (1 channel), 41 automatic measurements, extended FFT up to 1M points, four freely definable mathematical functions, signal analysis with Zoom, memory play, playback, zone trigger, Pass/Fail test, interfaces: USB 3.0 host, USB 3.0 device, Ethernet, HDMI

This text is machine translated.

Scope of delivery

Power cord, USB cable, per channel: Passive probe RP3500A, 10:1, 500 MHz

Description

Digital oscilloscope, 500 MHz bandwidth, 12-bit, 4 channels, 10.1-inch WXGA touchscreen,
Sampling rate 4 GS/s per channel, memory depth 500/250M points (2/4 channel),
RS232/UART and I2C/SPI trigger and analysis function, signal acquisition rate of up to 1,000,000 signals/s, real-time hardware recorder up to 500,000 recordings (1 channel), 41 automatic measurements, extended FFT up to 1M points, four freely definable mathematical functions, signal analysis with Zoom, memory play, playback, zone trigger, Pass/Fail test, interfaces: USB 3.0 host, USB 3.0 device, Ethernet, HDMI

This text is machine translated.

Scope of delivery

Power cord, USB cable, per channel: Passive probe RP3500A, 10:1, 500 MHz
