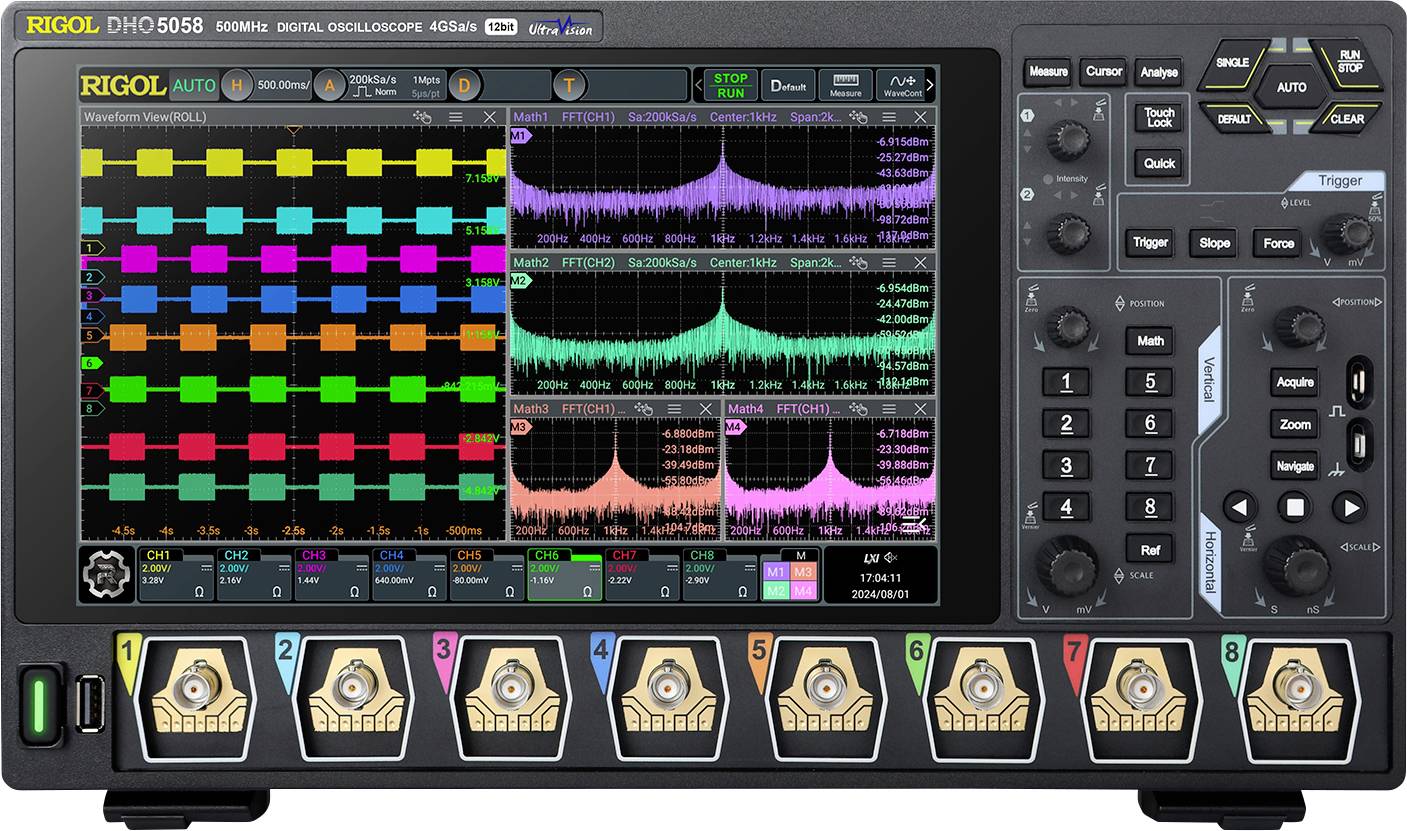

A digital oscilloscope with coloured waveforms on the screen and a control interface with numerous buttons and rotary knobs.

A digital oscilloscope with coloured waveforms on the screen and a control interface with numerous buttons and rotary knobs.

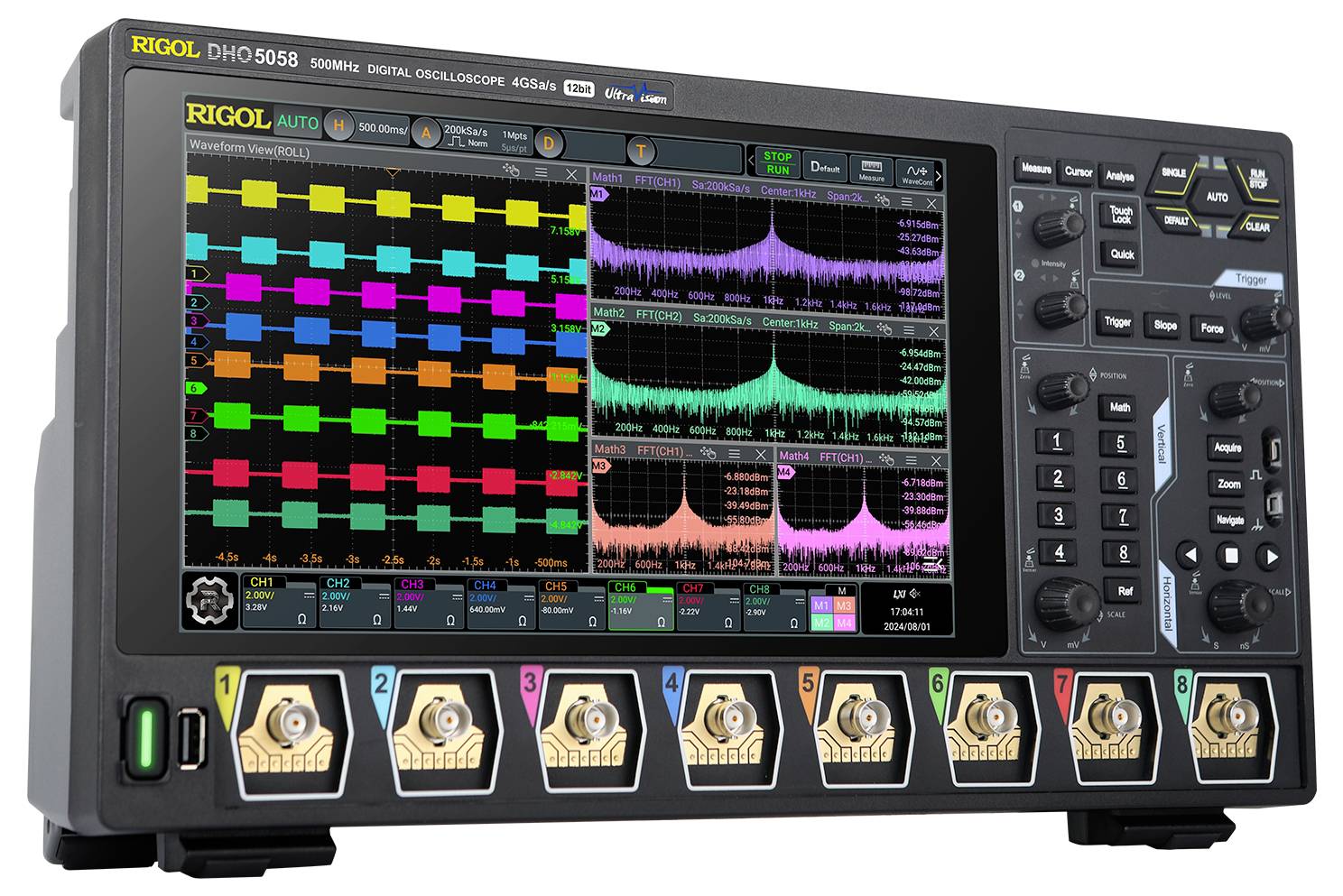

Digital oscilloscope with a colour display showing multiple signals and waveforms on the screen, displaying data analysis and measurements.

1/2

Rigol

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 14,479.00 / piece)

€ 14,479.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

RIGOL DHO5058 Oscilloscope

500 MHz
No. of analogue inputs 8

Technical specifications

Product type: Digital

Bandwidth: 500 MHz

Channel sample rate: 4 GS/s

Resolution: 12 Bit

Screen size: 10.1 inch

Oscilloscope features: Spectrum analyzer

No. of analogue inputs: 8

: Manufacturer's standards (no certificate)

Interfaces: Ethernet

Channel memory depth: 500 MP

Type: DHO5058

Documents & Downloads

Datasheet

Datasheet 3394086 Rigol DHO5058 Digital 500 MHz 4 GS/s 500 MP 12 Bit Spectrum analyzer 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3394086 Rigol DHO5058 Digital 500 MHz 4 GS/s 500 MP 12 Bit Spectrum analyzer 1 pc(s)

User & Safety Instructions 3394086 Rigol DHO5058 Digital 500 MHz 4 GS/s 500 MP 12 Bit Spectrum analyzer 1 pc(s)

User & Safety Instructions 3394086 Rigol DHO5058 Digital 500 MHz 4 GS/s 500 MP 12 Bit Spectrum analyzer 1 pc(s)

Description

Digital oscilloscope, 500 MHz bandwidth, 12-bit, 8 channels, 10.1-inch WXGA touchscreen,
Sampling rate 4/2 GS (1-4/8 channel), memory depth 500/250M points (1-4/8 channel),
RS232/UART and I2C/SPI trigger and analysis function, signal acquisition rate of up to 1,000,000 signals/s, real-time hardware recorder up to 500,000 recordings (1 channel), 41 automatic measurements, extended FFT up to 1M points, four freely definable mathematical functions, signal analysis with Zoom, memory play, playback, zone trigger, Pass/Fail test, interfaces: USB 3.0 host, USB 3.0 device, Ethernet, HDMI

This text is machine translated.

Scope of delivery

Power cord, USB cable, per channel: Passive probe RP3500A, 10:1, 500 MHz

Description

Digital oscilloscope, 500 MHz bandwidth, 12-bit, 8 channels, 10.1-inch WXGA touchscreen,
Sampling rate 4/2 GS (1-4/8 channel), memory depth 500/250M points (1-4/8 channel),
RS232/UART and I2C/SPI trigger and analysis function, signal acquisition rate of up to 1,000,000 signals/s, real-time hardware recorder up to 500,000 recordings (1 channel), 41 automatic measurements, extended FFT up to 1M points, four freely definable mathematical functions, signal analysis with Zoom, memory play, playback, zone trigger, Pass/Fail test, interfaces: USB 3.0 host, USB 3.0 device, Ethernet, HDMI

This text is machine translated.

Scope of delivery

Power cord, USB cable, per channel: Passive probe RP3500A, 10:1, 500 MHz
