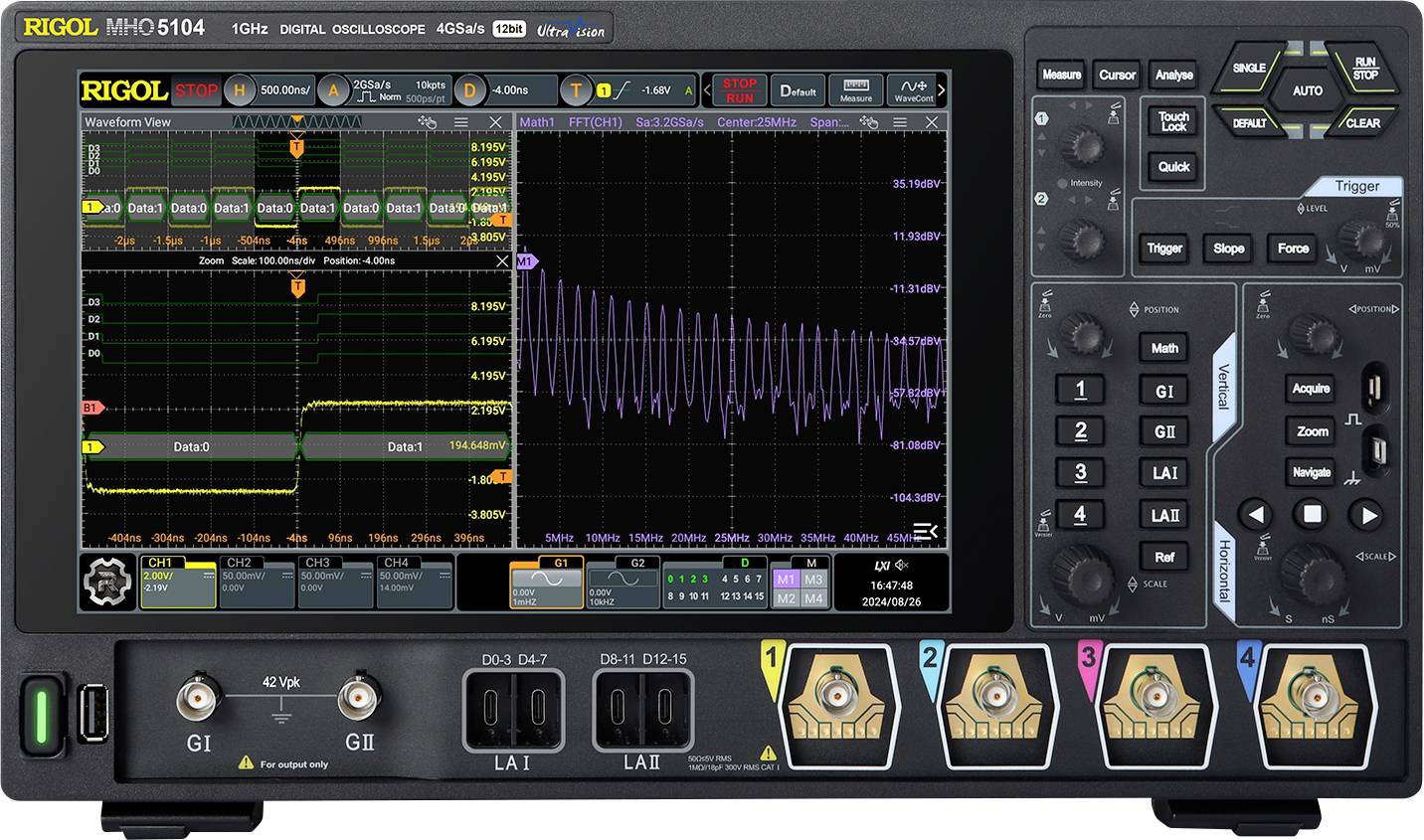

A digital oscilloscope displays a waveform signal with multiple peaks on a colour display. Controls and connections are visible.

A digital oscilloscope displays a waveform signal with multiple peaks on a colour display. Controls and connections are visible.

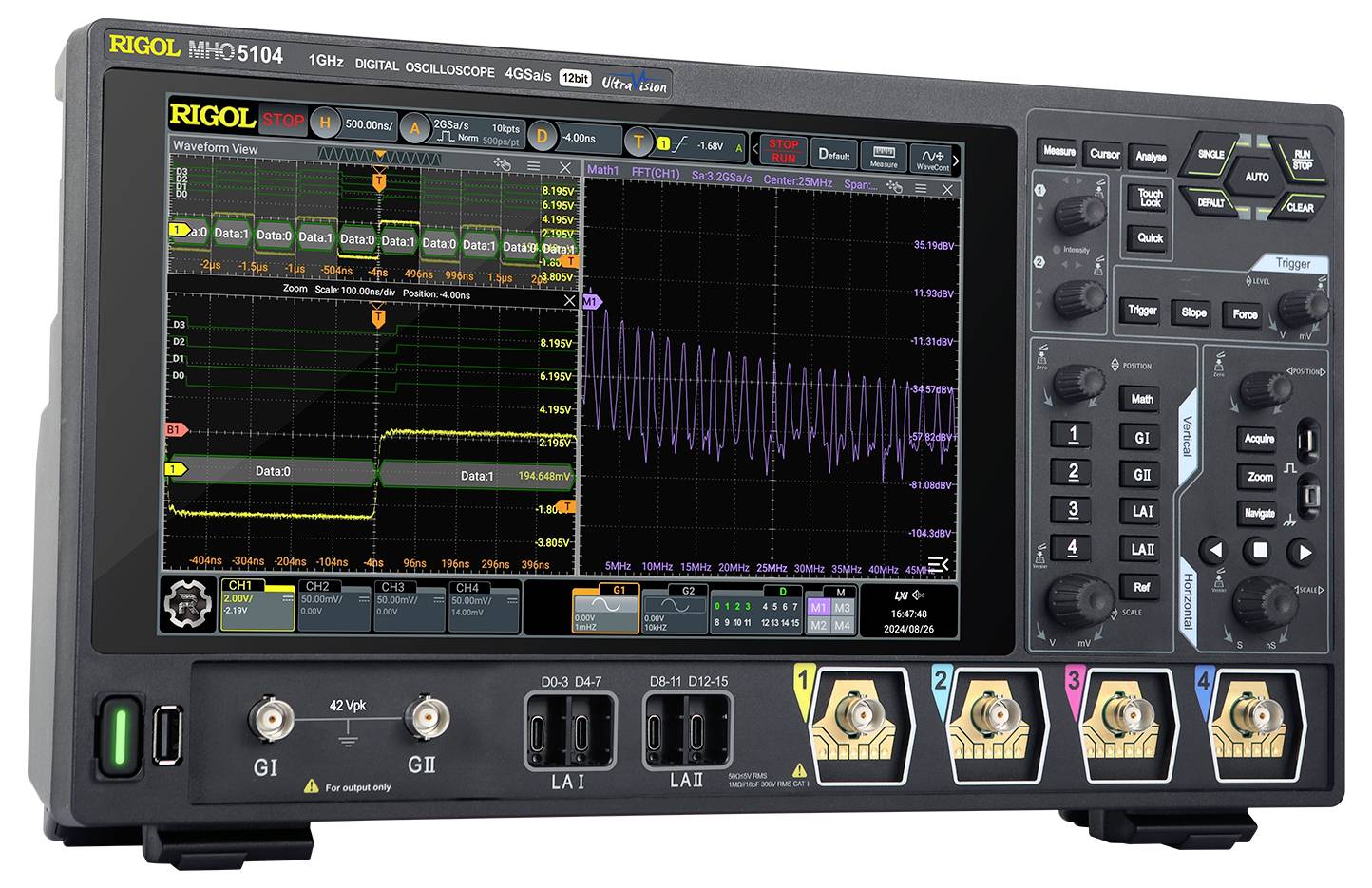

'The Rigol MHO5104 oscilloscope displays complex waveform and measurement data on a display with numerous operating controls and connectors.'

1/2

Rigol

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 7,239.00 / piece)

€ 7,239.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

RIGOL MHO5104 Oscilloscope

1 GHz
No. of analogue inputs 4

Technical specifications

Product type: Digital

Bandwidth: 1 GHz

Channel sample rate: 4 GS/s

Screen size: 10.1 inch

Oscilloscope features: Mixed signal (MSO)

No. of analogue inputs: 4

: Manufacturer's standards (no certificate)

No. of digital inputs (max.): 16

Interfaces: USB

Channel memory depth: 500 MP

Type: MHO5104

Documents & Downloads

Datasheet

Datasheet 3394088 Rigol MHO5104 Digital 1 GHz 4 GS/s 500 MP Mixed signal (MSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3394088 Rigol MHO5104 Digital 1 GHz 4 GS/s 500 MP Mixed signal (MSO) 1 pc(s)

User & Safety Instructions 3394088 Rigol MHO5104 Digital 1 GHz 4 GS/s 500 MP Mixed signal (MSO) 1 pc(s)

User & Safety Instructions 3394088 Rigol MHO5104 Digital 1 GHz 4 GS/s 500 MP Mixed signal (MSO) 1 pc(s)

Description

Mixed-signal oscilloscope, 1 GHz, 4 channels + 16 digital (optional with PLA3204), 10.1" WXGA touchscreen,
Sampling rate 4/2 GS (2/4 channel), memory depth 500/250M points (2/4 channel), 2 channel 50 MHz AF G/AWG optional,
RS232/UART and I2C/SPI trigger and analysis function, signal acquisition rate of up to 1,000,000 signals/s, real-time hardware recorder up to 500,000 recordings (1 channel), 41 automatic measurements, extended FFT up to 1M points, four freely definable mathematical functions, signal analysis with Zoom, memory play, playback, zone trigger, Pass/Fail test, interfaces: USB 3.0 host, USB 3.0 device, Ethernet, HDMI

This text is machine translated.

Scope of delivery

Power cord, USB cable, per channel: Passive probe RP3500A, 10:1, 500 MHz

Description

Mixed-signal oscilloscope, 1 GHz, 4 channels + 16 digital (optional with PLA3204), 10.1" WXGA touchscreen,
Sampling rate 4/2 GS (2/4 channel), memory depth 500/250M points (2/4 channel), 2 channel 50 MHz AF G/AWG optional,
RS232/UART and I2C/SPI trigger and analysis function, signal acquisition rate of up to 1,000,000 signals/s, real-time hardware recorder up to 500,000 recordings (1 channel), 41 automatic measurements, extended FFT up to 1M points, four freely definable mathematical functions, signal analysis with Zoom, memory play, playback, zone trigger, Pass/Fail test, interfaces: USB 3.0 host, USB 3.0 device, Ethernet, HDMI

This text is machine translated.

Scope of delivery

Power cord, USB cable, per channel: Passive probe RP3500A, 10:1, 500 MHz
